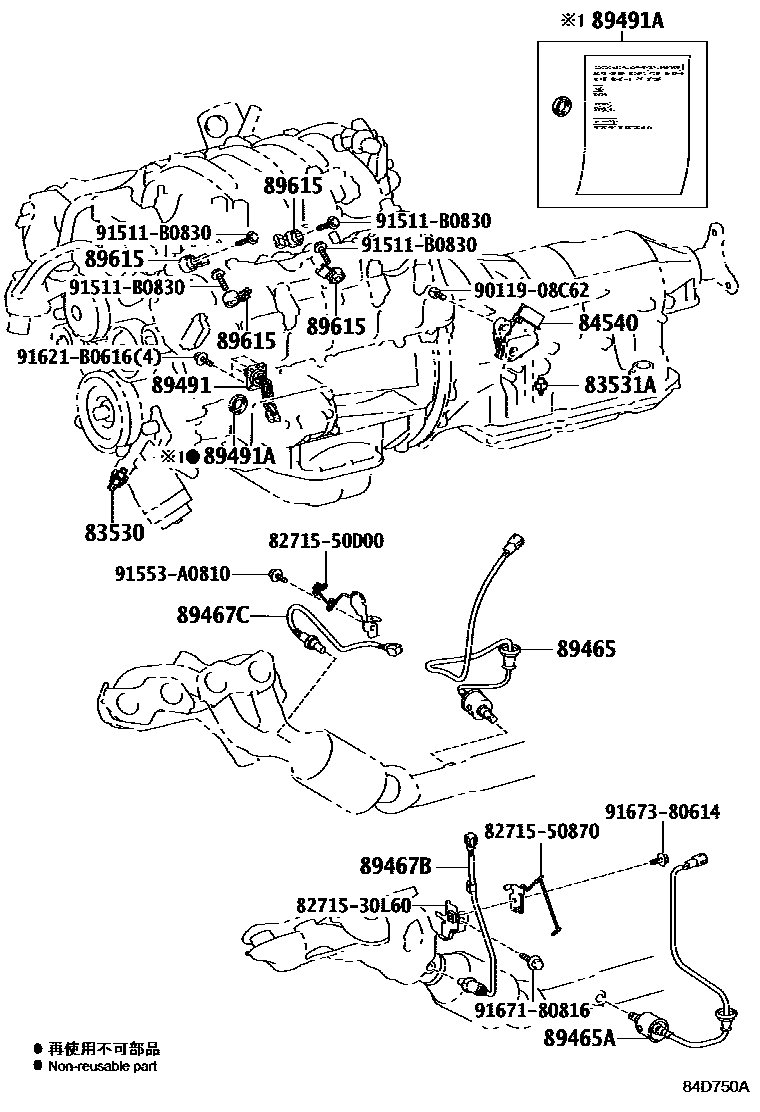

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� ��� 1/2 0004 1����� ��� 2/2 0005 1��� 0006 1������������ 0007 1���� ����� 0008 1�� ����� 0009 1������� 0010 1������� 0011 1����� 0012 1���,���,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iUSF4#201209

83531ASWITCH, OIL PRESSURE

main83531-50010iUSF4#201209-201708

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSF4#201209-201708

89465SENSOR, OXYGEN

main89465-50170iUSF4#201209

89465ASENSOR, OXYGEN NO.2

main89465-50170iUSF40,41201209

main89465-50230iUSF45,46201209

89467BSENSOR, AIR FUEL RATIO

main89467-50050iUSF40,41201209

main89467-53030iUSF45,46201209

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-50060iUSF40,41201209

main89467-53030iUSF45,46201209

89491SENSOR, ENGINE OIL LEVEL

main89491-50041iUSF40,41201209

main89491-50050iUSF45,46201209

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSF4#201209

89615SENSOR, KNOCK CONTROL

main89615-20090×4iUSF4#201209

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

8271550870BRACKET,WIRING HARNESS CLAMP

main82715-50870

8271550D00BRACKET,WIRING HARNESS CLAMP

main82715-50D00

9011908C62

main90119-08C62

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

19 parts on this diagram · 12 diagrams in section
