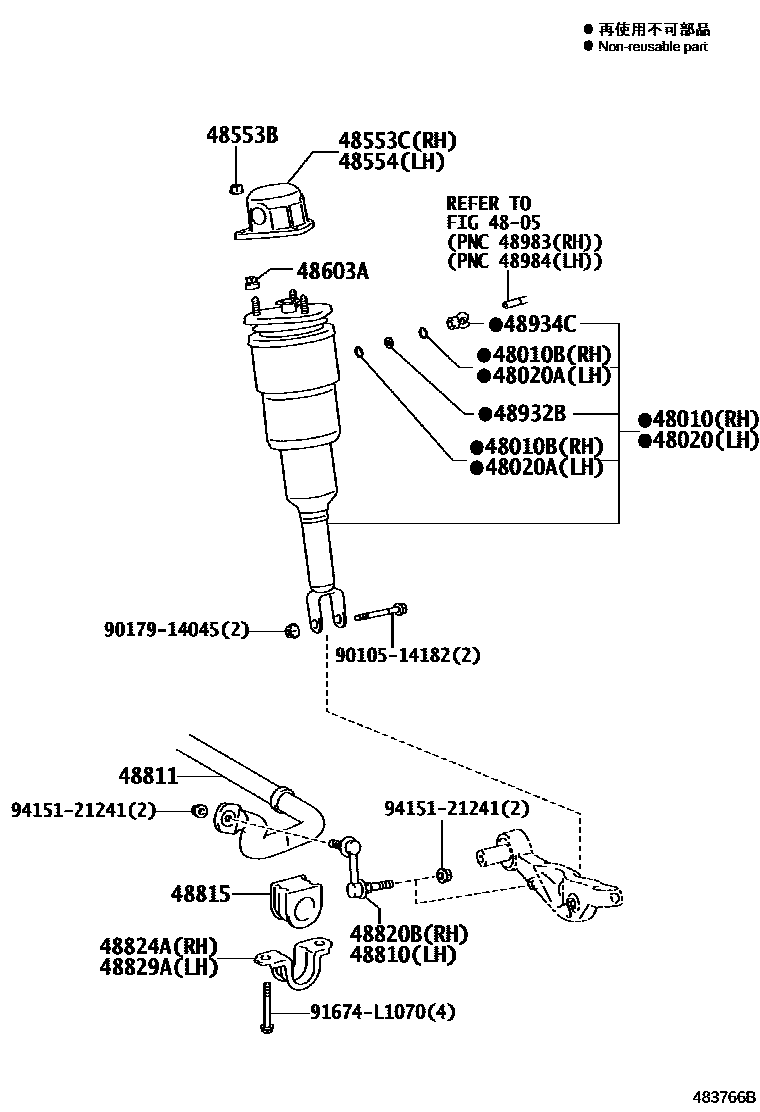

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50340iUSF45,46201209-201312

main48010-50341iUSF45,46201401

main48010-50360iUSF40,41201209-201312

main48010-50361iUSF40,41201401

main48010-50320iUSF40201210-201312

main48010-50321iUSF40201412-201609

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iUSF4#201209

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50340iUSF45,46201209-201312

main48020-50341iUSF45,46201401

main48020-50360iUSF40,41201209-201312

main48020-50361iUSF40,41201401

main48020-50320iUSF40201210-201312

main48020-50321iUSF40201401

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iUSF4#201209

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iUSF4#201209

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120iUSF45,46201209

main48553-50130iUSF40,41201209

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120iUSF45,46201209

main48553-50130iUSF40,41201209

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iUSF4#201209

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUSF4#201209

48811BAR, STABILIZER, FRONT

main48811-50120iUSF40,41201209

main48811-50220iUSF45,46201209

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50200×2iUSF40,41201209

main48815-50220×2iUSF45,46201209

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUSF4#201209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50040iUSF40,41201209

main48824-50060iUSF45,46201209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-50050iUSF40,41201209

main48829-50010iUSF45,46201209

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUSF4#201209

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUSF4#201209

9010514182

main90105-14182

9017914045

main90179-14045

91674L1070

main91674-L1070

9415121241

main94151-21241

21 parts on this diagram · 2 diagrams in section
