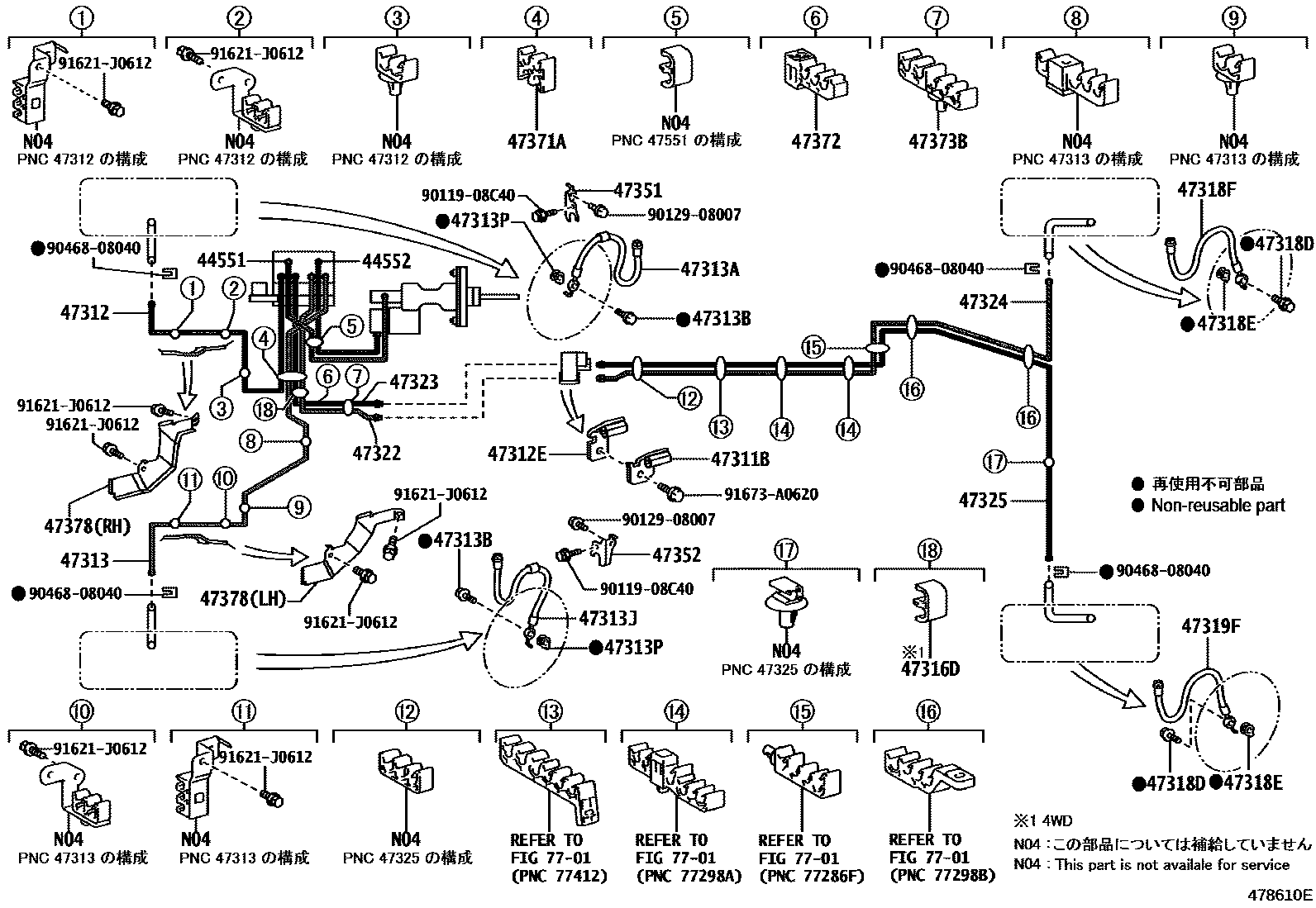

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-50120iUSF4#201209-201409

main44551-50121iUSF4#201410

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-50070iUSF4#201209-201409

main44552-50071iUSF4#201410

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10274iUSF4#201209-201309

main90412-10292iUSF4#201309

47312TUBE, FRONT BRAKE, NO.2

main47312-50251iUSF40,41201209-201409

main47312-50252iUSF40,41201410

main47312-50270iUSF45,46201209-201409

main47312-50271iUSF45,46201410

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10275iUSF4#201209-201309

main90412-10297iUSF4#201309

47313TUBE, FRONT BRAKE, NO.3

main47313-50212iUSF40,41201209-201409

main47313-50213iUSF40,41201410

main47313-50240supersedes 47313-50260iUSF45; USF46201209-201409

main47313-50241supersedes 47313-50261iUSF45; USF46201410

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F75iUSF40,41201209

main90947-02F88iUSF45,46201209

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iUSF4#201209

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F76iUSF40,41201209

main90947-02F89iUSF45,46201209

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iUSF4#201209

47316DGROMMET(FOR REAR BRAKE TUBE)

main90480-01555iUSF45,46201209

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iUSF4#201209

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iUSF4#201209

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F77iUSF4#201209

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F77iUSF4#201209

47322TUBE, REAR BRAKE, NO.2

main47322-50230iUSF40,41201209-201309

main47322-50250iUSF45,46201209-201309

main47322-50280iUSF40,41201309-201409

main47322-50281iUSF40,41201410

main47322-50300iUSF45,46201309-201409

main47322-50301iUSF45,46201410

47323TUBE, REAR BRAKE, NO.3

main47323-50090iUSF40,41201209-201309

main47323-50110iUSF45,46201209-201309

main47323-50140iUSF40,41201309-201409

main47323-50141iUSF40,41201410

main47323-50160iUSF45,46201309-201409

main47323-50161iUSF45,46201410

47324TUBE, REAR BRAKE, NO.4

main47324-50160iUSF40,45201209-201309

main47324-50170iUSF41,46201209-201309

main47324-50180iUSF40,45201309-201409

main47324-50181iUSF40,45201410-201508

main47324-50190iUSF41,46201508-201708

main47324-50191iUSF41,46201410-201508

47325TUBE, REAR BRAKE, NO.5

main47325-50120iUSF40,45201209-201309

main47325-50130iUSF41,46201209-201309

main47325-50140iUSF40,45201309-201409

main47325-50141iUSF40,45201410-201508

main47325-50150iUSF41,46201309-201409

main47325-50151iUSF41,46201410-201508

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-50010iUSF40,41201209-201708

main47351-50020iUSF45,46201209-201708

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-50010iUSF40,41201209-201708

main47352-50020iUSF45,46201209-201708

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00876iUSF4#201209

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D08iUSF4#201209

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D47iUSF4#201209

47378PROTECTOR, BRAKE TUBE

main47378-50040iUSF4#201209

main47388-50030iUSF4#201209

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

91621J0612

main91621-J0612

91673A0620

main91673-A0620

31 parts on this diagram · 3 diagrams in section
