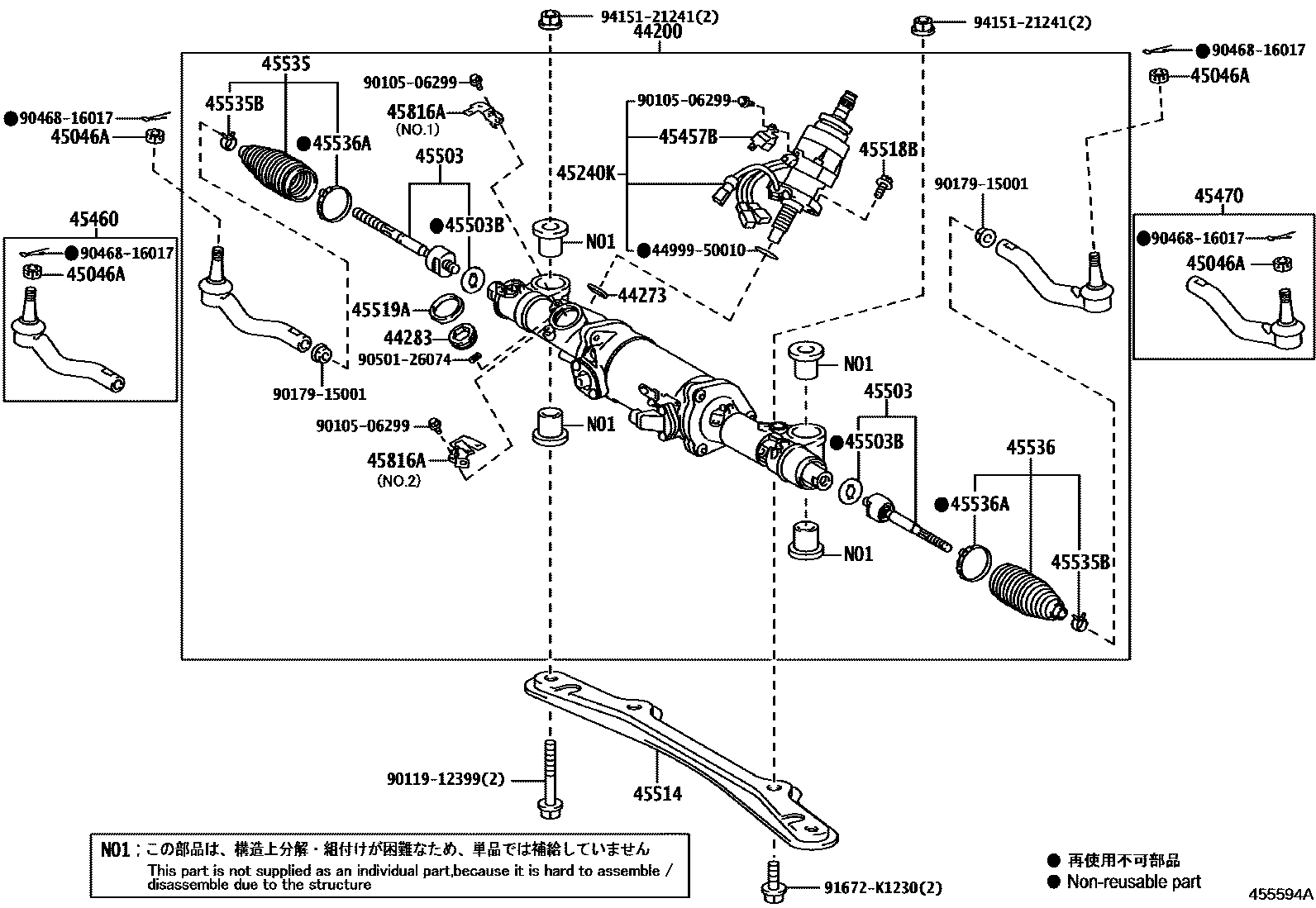

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-50352iUSF45,46201209

main44200-50292iUSF40201412-201509

44273PLATE, STEERING SHAFT TORQUE SENSOR

main44273-50010iUSF4#201209

44283CAP, RACK HOUSING

main44283-50010iUSF4#201209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12012×2iUSF4#201209

45240KACTUATOR ASSY, STEERING

main45240-50022iUSF40,41201209

main45240-50072iUSF45,46201209

45457BPROTECTOR, STEERING LINK

main45457-50020iUSF40,41201209

main45457-50030iUSF45,46201209

45460ROD ASSY, TIE, RH

main45460-59085iUSF40,41201209

main45460-59095iUSF45,46201209

45470ROD ASSY, TIE, LH

main45470-59095iUSF40,41201209

main45470-59105iUSF45,46201209

45503END SUB-ASSY, STEERING RACK

main45503-59145×2iUSF40,41; USF45,46201209

main45503-59155×2iUSF45,46201209-201504

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-16002×2iUSF4#201209

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-50070iUSF40,41201209

45518BBOLT, STEERING RACK HOUSING

main45518-50010×2iUSF4#201209

45519ANUT, STEERING RACK HOUSING BRACKET

main45519-50010iUSF4#201209

45535BOOT, STEERING RACK, NO.1

main45535-29005iUSF45,46201209-201401

main45535-59045iUSF40,41201209-201401

main45535-59055iUSF45,46201401-201504

main45535-59065iUSF40,41201401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iUSF40,41; USF45,46201209

main90467-19021×2iUSF45,46201209-201504

45536BOOT, STEERING RACK, NO.2

main45535-29005iUSF45,46201209-201401

main45535-59045iUSF40,41201209-201401

main45535-59055iUSF45,46201401-201504

main45535-59065iUSF45,46201209

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iUSF4#201209

45816ABRACKET, WIRE HARNESS

main45816-50040iUSF40,41201209

main45816-50050iUSF45,46201209

main45816-50090iUSF40,41201209

main45816-50100iUSF45,46201209

main45816-50110iUSF45,46201209

main45816-50120iUSF45,46201209

4499950010ELEMENT, BOOSTER CONTROL VALVE AIR CLEANER

main44999-50010

9010506299

main90105-06299

9011912399

main90119-12399

9017915001

main90179-15001

9046816017

main90468-16017

9050126074

main90501-26074

91672K1230

main91672-K1230

9415121241

main94151-21241

26 parts on this diagram · 2 diagrams in section
