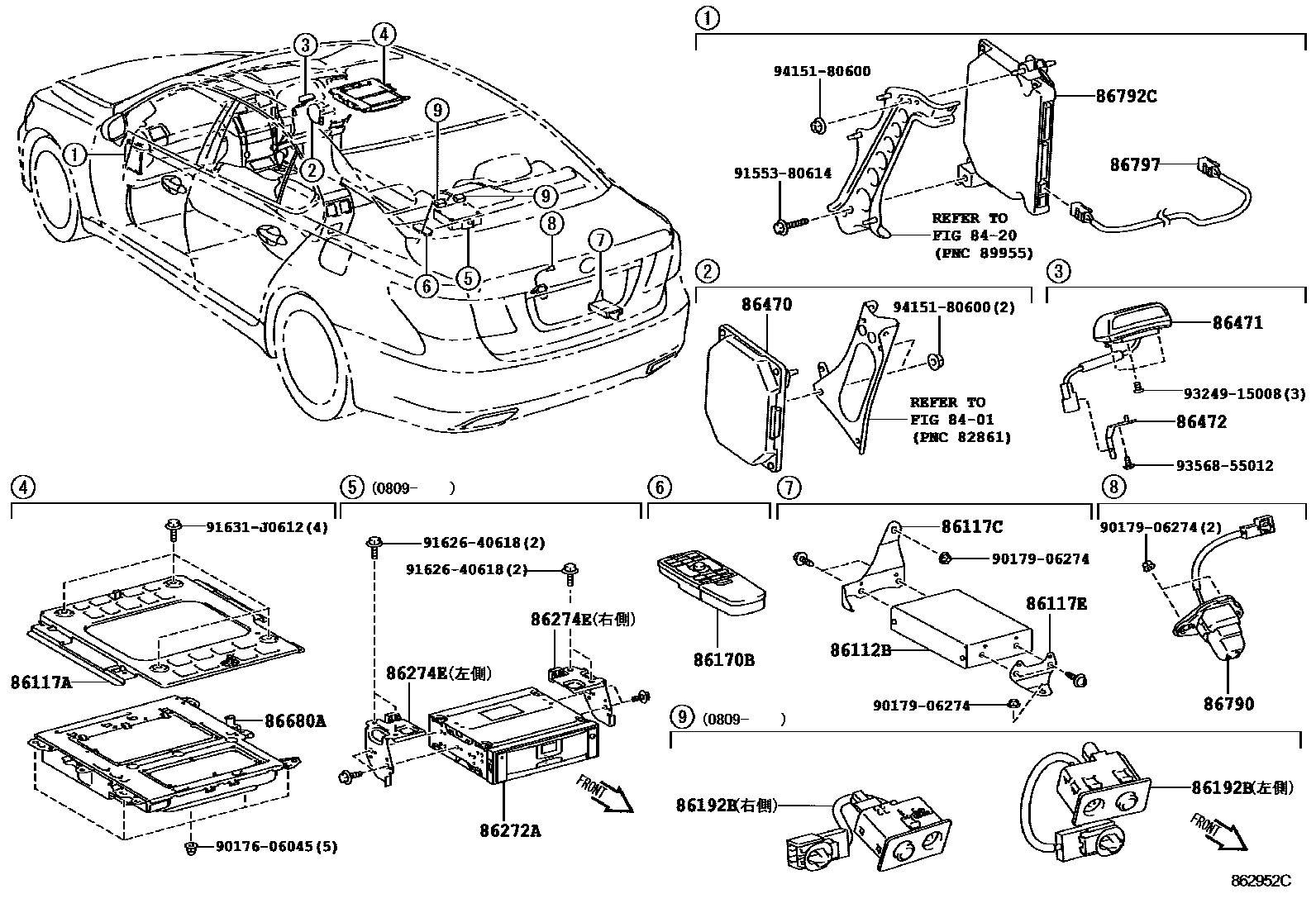

CAMERA & REAR MONITOR DISPLAY
8401
8420
86112BSELECTOR, MULTI-DISPLAY
86117ABRACKET, TELEVISION DISPLAY, A
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
86170BSWITCH & VOLUME ASSY, TELEVISION
86192BTERMINAL, HEADPHONE
86272ACONTROLLER, DISC PLAYER
86274EBRACKET, DISC PLAYER
86471CAMERA, DRIVER MONITOR
86472BRACKET, DRIVER MONITOR
86680ADISPLAY ASSY, TELEVISION
86792CCOMPUTER, PARKING ASSIST
86797WIRE, TELEVISION CAMERA, NO.2
9017606045
main90176-06045
9017906274
main90179-06274
9155380614
main91553-80614
9162640618
main91626-40618
91631J0612
main91631-J0612
9324915008
main93249-15008
9356855012
main93568-55012
9415180600
main94151-80600
25 parts on this diagram · 4 diagrams in section
