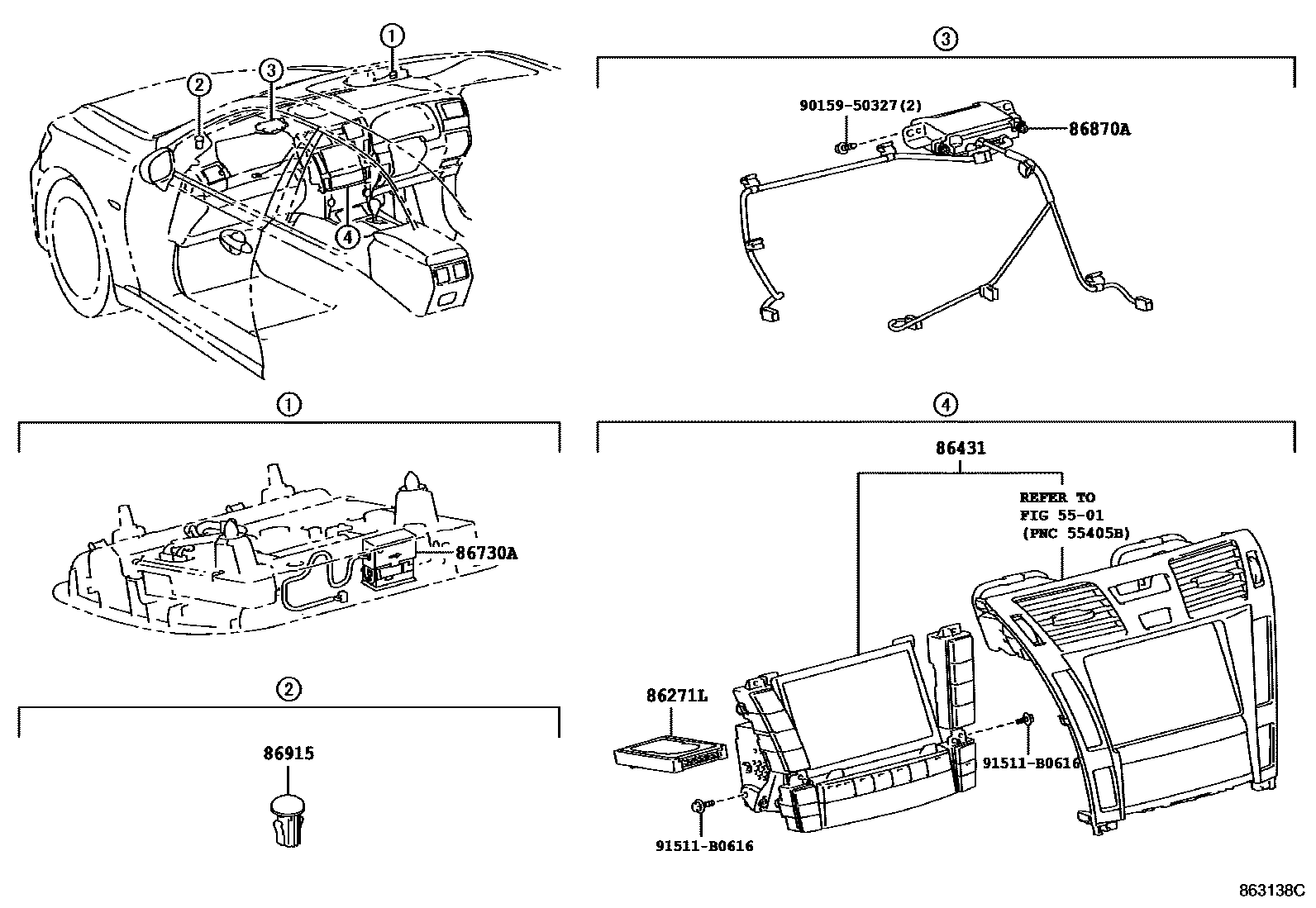

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86271LHARD DISC

main86271-50890iUSF40200608-200703

main86271-50891iUSF40200704-200707

main86271-50892iUSF40200708-200803

main86271-50893iUSF40200804-200809

main86271-50894iUSF4#200809-200903

main86271-50895iUSF4#200904-200909

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-50010iUSF40200708-200809

main86431-50020iUSF40200708-200809

main86431-50030iUSF40200608-200708

main86431-50040iUSF40200608-200708

main86431-50050supersedes 86431-50060iUSF40200608-200809

main86431-50100iUSF40200708-200809

main86431-50110iUSF40200708-200809

main86431-50180supersedes 86431-50231iUSF40,45; USF41,46200809-200905

main86431-50181supersedes 86431-50211iUSF40,45; USF41,46200905-200909

main86431-50190supersedes 86431-50211iUSF40,45; USF41,46200809-200905

main86431-50191supersedes 86431-50231iUSF40,45; USF41,46200905-200909

main86431-50200supersedes 86431-50231iUSF40,45; USF41,46200809-200905

main86431-50201supersedes 86431-50211iUSF40,45; USF41,46200905-200909

main86431-50210supersedes 86431-50231iUSF40,45; USF41,46200809-200905

main86431-50211supersedes 86431-50231iUSF40,45; USF41,46200905-200909

main86431-50220supersedes 86431-50231iUSF40,45200809-200905

main86431-50221supersedes 86431-50231iUSF40,45200905-200909

main86431-50340supersedes 86431-50231iUSF40,45; USF41,46200809-200905

main86431-50341supersedes 86431-50231iUSF40,45; USF41,46200905-200909

main86431-50350supersedes 86431-50211iUSF40,45; USF41,46200809-200905

main86431-50351supersedes 86431-50231iUSF40,45; USF41,46200905-200909

main86431-50360supersedes 86431-50231iUSF40,45200809-200905

main86431-50361supersedes 86431-50231iUSF40,45200905-200909

main86431-50370supersedes 86431-50231iUSF40,45200809-200905

main86431-50371supersedes 86431-50231iUSF40,45200905-200909

86730AMICROPHONE ASSY, TELEPHONE

main86730-50050iUSF40200608-200809

main86730-53030iUSF4#200909-201209

86870AANTENNA ASSY, GPS & VICS

main86870-50080iUSF40200608-200809

main86870-50090supersedes 86870-50080iUSF4#200909

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iUSF40200608-200809

9015950327

main90159-50327

91511B0616

main91511-B0616

8 parts on this diagram · 2 diagrams in section
