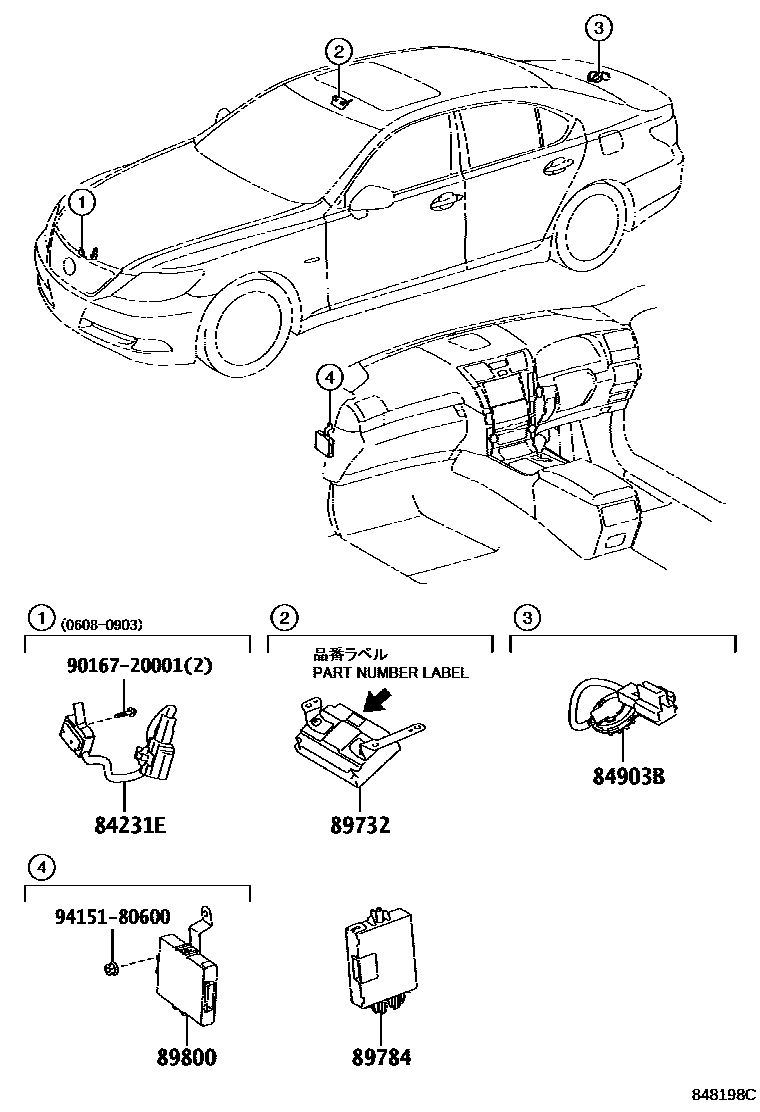

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-50160iUSF4#200809-200903

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-50210iUSF4#200809-200909

89732SENSOR, THEFT WARNING RADAR

main89732-50030supersedes 89732-50070iUSF40200608-200802

main89732-50080supersedes 89732-50070iUSF40200803-200809

main89732-50081supersedes 89732-50071iUSF4#200811-200909

89784COMPUTER, IMMOBILIZER CODE

main89784-50010iUSF40200608-200809

main89784-50020iUSF4#200909-201008

main89784-50030iUSF4#201009

89800COMPUTER ASSY, REMOTE SECURITY

main89800-50010iUSF40200608-200809

main89800-50020iUSF4#200909

9016720001

main90167-20001

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section
