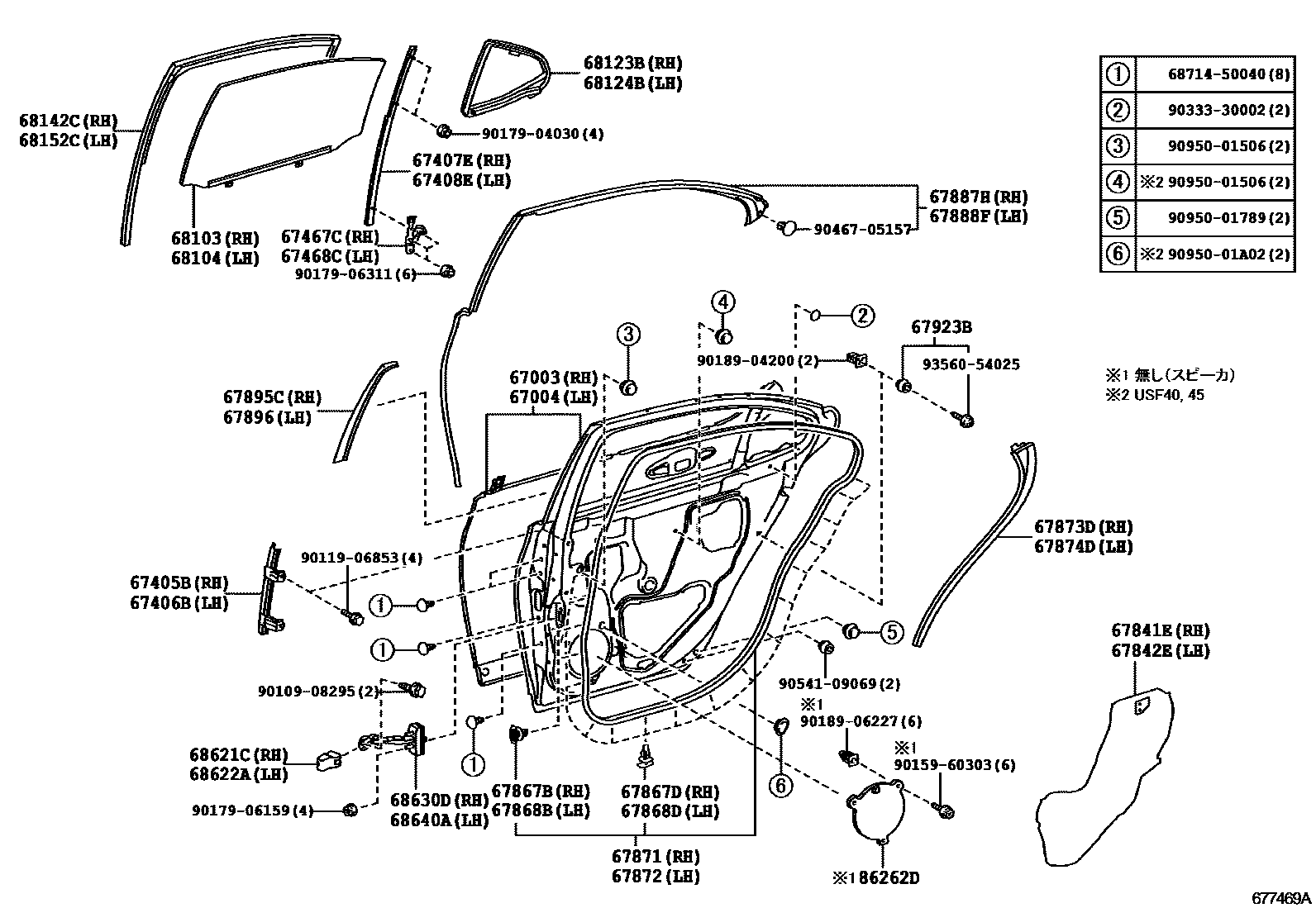

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67467CBRACKET, REAR DOOR DIVISION BAR, LOWER RH
67468CBRACKET, REAR DOOR DIVISION BAR, LWR LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
86262DCOVER, REAR DOOR SPEAKER
6871450040
main68714-50040
9010908295
main90109-08295
9011906853
main90119-06853
9015960303
main90159-60303
9017904030
main90179-04030
9017906159
main90179-06159
9017906311
main90179-06311
9018904200
main90189-04200
9018906227
main90189-06227
9033330002
main90333-30002
9046705157
main90467-05157
9054109069
main90541-09069
9095001506
main90950-01506
9095001789
main90950-01789
9095001A02
main90950-01A02
9356054025
main93560-54025
50 parts on this diagram · 2 diagrams in section
