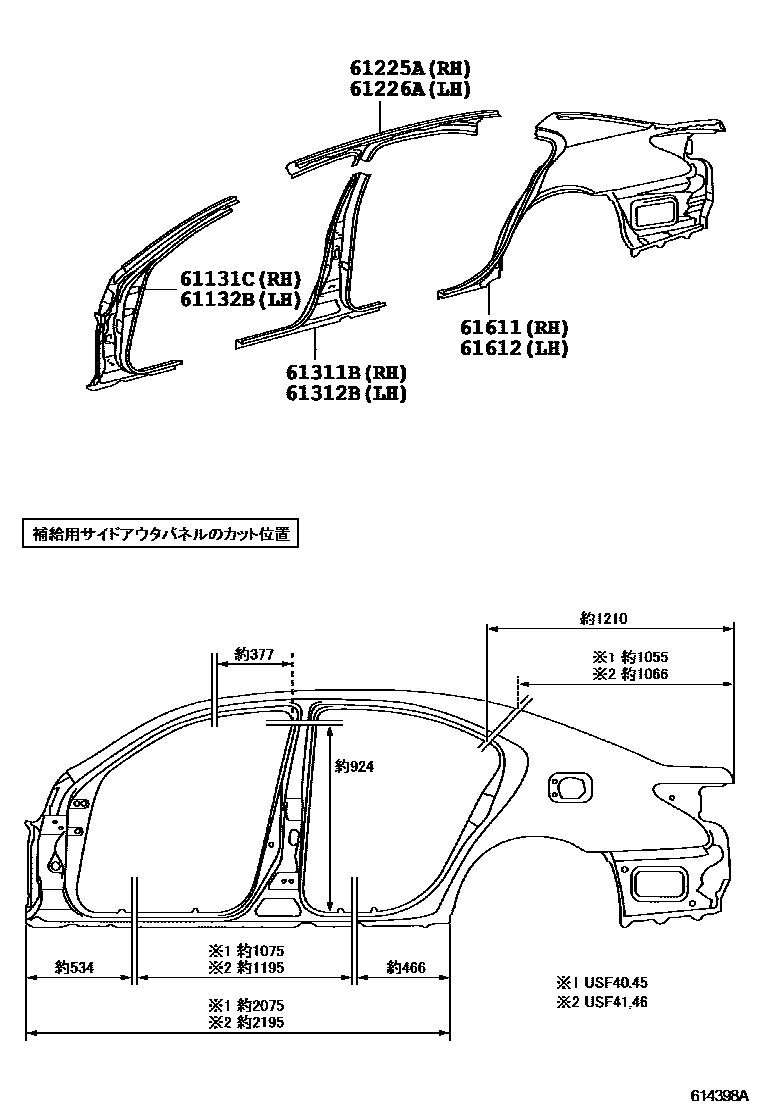

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-50040iUSF40200608-200809

61132BPILLAR, FRONT BODY, OUTER LH

main61132-50040iUSF40200608-200809

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-50010iUSF40,45200809-200909

main61225-50030iUSF41,46200809-200909

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-50010iUSF40,45200809-200909

main61226-50030iUSF41,46200909

61311BPILLAR, CENTER BODY, OUTER RH

main61311-50040iUSF40200608-200809

main61311-50050iUSF41,46200809-200909

61312BPILLAR, CENTER BODY, OUTER LH

main61312-50050iUSF40200608-200809

main61312-50070iUSF41,46200809-200909

61611PANEL, QUARTER, RH

main61611-50050iUSF40200608-200809

main61611-50051iUSF40,45200809-200909

main61611-50052iUSF40,45201110-201205

main61611-50053iUSF40,45201206-201209

main61611-50071iUSF41,46200909-201109

main61611-50072iUSF41,46201110-201205

main61611-50073iUSF41,46201206-201209

61612PANEL, QUARTER, LH

main61612-50080iUSF40200608-200809

main61612-50081iUSF40,45200809-200909

main61612-50082iUSF40,45201110-201209

main61612-50101iUSF41,46200809-200909

main61612-50102iUSF41,46201110-201209

8 parts on this diagram · 3 diagrams in section
