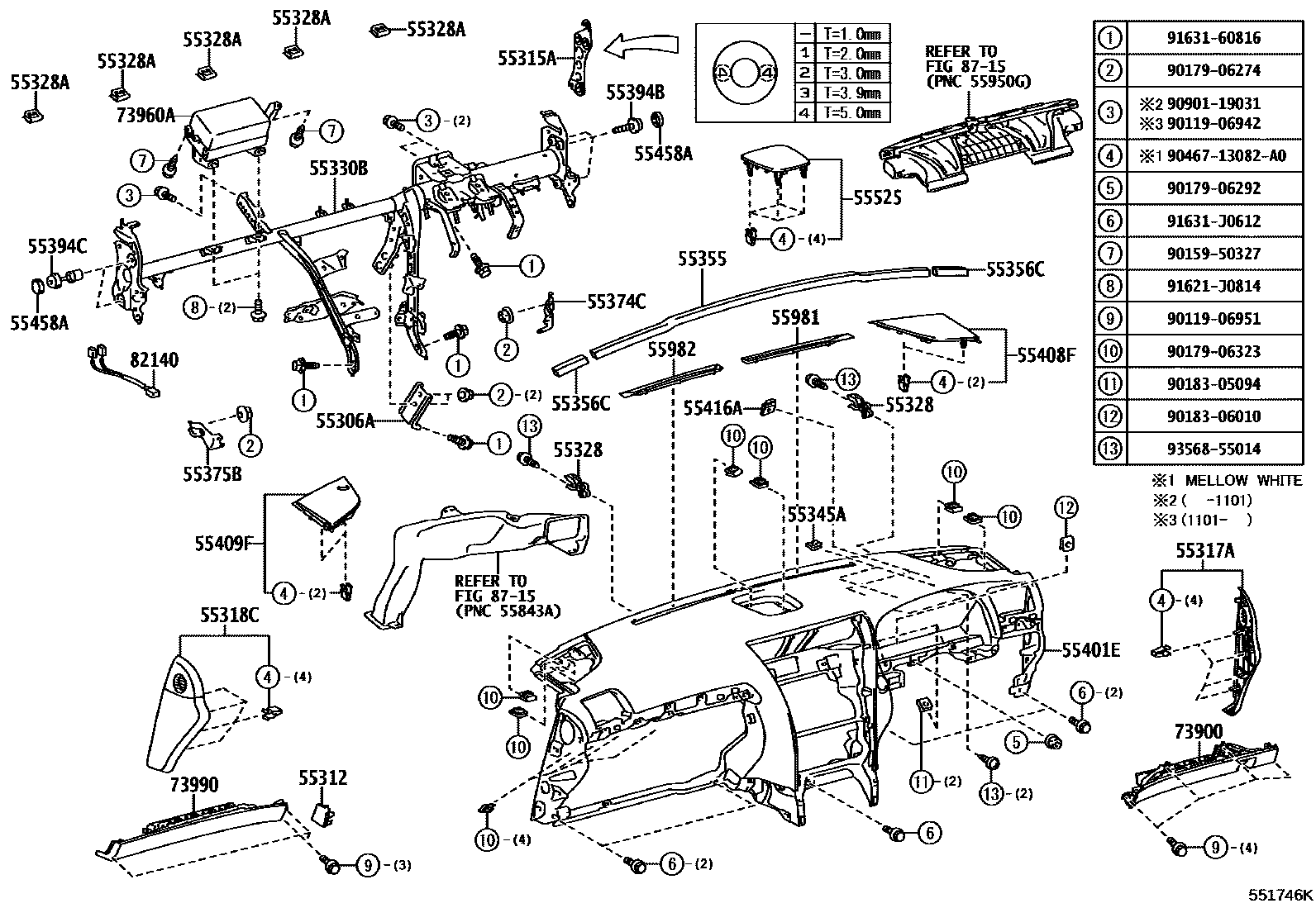

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1��������� 0004 1��������� 0005 1����� 0006 1����� 0007 1����� 0008 1���������� 0009 1���������� 0010 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-50210iUSF40200608-200809

55312PANEL, INSTRUMENT, LOWER

main55312-50080-A0iUSF4#200809-200909

IVORY,TRIM00,06

main55312-50080-A1iUSF4#200909-201209

MELLOW WHITE,TRIM01,07

main55312-50080-A2iUSF4#200909-201209

IVORY,TRIM00,06

main55312-50080-B0iUSF4#200809-200909

LT.GRAY,TRIM1#

main55312-50080-C0iUSF4#200809-200909

BLACK,TRIM2#

55315ASPACER, INSTRUMENT PANEL, NO.1

main62231-50010iUSF40200608-200809

main62231-50020iUSF4#200909

main62231-50030iUSF4#200909

main62231-50040iUSF4#200809-200909

main62231-50050iUSF4#200809-200909

55317APANEL, INSTRUMENT SIDE, RH

main55317-50040-C0iUSF40200608-200809

LT.GRAY,TRIM10,11

main55317-50040-C1iUSF40200608-200809

BLACK,TRIM20,21

main55317-50040-E0iUSF40200608-200809

IVORY,TRIM00,06

main55317-50040-E1iUSF40200608-200809

MELLOW WHITE,TRIM01,07

main55317-50040-E2iUSF4#200909-201209

55318CPANEL, INSTRUMENT SIDE, LH

main55318-50050-C0iUSF40200608-200809

LT.GRAY,TRIM10,11

main55318-50050-C1iUSF40200608-200809

BLACK,TRIM20,21

main55318-50050-E0iUSF40200608-200809

IVORY,TRIM00,06

main55318-50050-E1iUSF40200608-200809

MELLOW WHITE,TRIM01,07

main55318-50050-E2iUSF4#200909-201209

55328PIN, INSTRUMENT PANEL, NO.1

main55328-50160×2iUSF40200608-200611

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160×5iUSF40200608-200705

main55328-33120×5iUSF40200706-200707

main55328-50170×5iUSF40200707-200809

main55328-48110×5supersedes 55328-50170iUSF4#201010

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-50230iUSF40200608-200809

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iUSF40200608-200611

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-50080iUSF40200608-200809

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-50020×2iUSF40200608-200809

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-50100iUSF40200608-200809

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-50110iUSF40200608-200809

55394BBOLT, INSTRUMENT PANEL

main55394-50010×3iUSF40200608-200809

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iUSF4#200909

main55394-51011×2iUSF40200608-200709

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-50908-C1iUSF40200608-200612

LT.GRAY,TRIM1#

main55401-50908-C2iUSF40200608-200612

BLACK,TRIM2#

main55401-50908-E2iUSF40200608-200612

IVORY,TRIM00

main55401-50908-E3iUSF40200608-200612

MELLOW WHITE,TRIM01

main55401-50910-C2iUSF40200612-200809

BLACK,TRIM10,11

main55401-50910-C3iUSF40200612-200809

BLACK,TRIM20,21

main55401-50910-E2iUSF40200612-200809

ORCHID BROWN,TRIM00,06

main55401-50910-E3iUSF40200612-200809

ORCHID BROWN,TRIM01,07

main55401-50280-20iUSF4#200911-201209

main55401-50280-21iUSF4#200911-201209

main55401-50280-22iUSF4#200911-201209

main55401-50280-C6iUSF4#200911-201209

main55401-50280-C8iUSF4#200911-201209

main55401-50280-C9iUSF4#200911-201209

main55401-50910-E4iUSF4#200909-201209

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-50120-C0iUSF4#200909

BLACK,TRIM1#,2#,3#,4#,6#

main55408-50120-E0iUSF4#200909

ORCHID BROWN,TRIM0#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-50070-C0iUSF4#200909

BLACK,TRIM1#,2#,3#,4#,6#

main55409-50070-E0iUSF4#200909

ORCHID BROWN,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iUSF40200608-200611

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5iUSF4#200909

55525COVER, SPEAKER HOLE, NO.1

main55510-50020-C0supersedes 55510-50010-C0iUSF4#200809-200909

main55510-50020-E0supersedes 55510-50010-E0iUSF40200608-200809

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-50110iUSF40200608-200611

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-50050iUSF40200608-200611

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-50040-A0iUSF4#200809-200909

IVORY,TRIM00,06

main73900-50040-A1iUSF40200608-200809

MELLOW WHITE,TRIM01,07

main73900-50040-B0iUSF40200608-200809

LT.GRAY,TRIM10,11

main73900-50040-C0iUSF4#200809-200909

BLACK,TRIM2#

main73900-50060-A0iUSF4#200909-201209

MELLOW WHITE,TRIM01,07

main73900-50060-A1iUSF4#200909-201209

IVORY,TRIM00,06

main73900-50060-B0iUSF40,45200909-201209

LT.GRAY,TRIM1#

main73900-50060-C0iUSF4#200909-201209

BLACK,TRIM2#,3#,4#,6#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-50090iUSF4#200909

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-50040-A0iUSF4#200809-200909

IVORY,TRIM00,06

main73990-50040-A1iUSF40200608-200809

MELLOW WHITE,TRIM01,07

main73990-50040-A2iUSF4#200909-201209

IVORY,TRIM00,06

main73990-50040-B0iUSF40,45200909-201209

LT.GRAY,TRIM1#

main73990-50040-C0iUSF4#200809-200909

BLACK,TRIM2#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47010iUSF40200608-200809

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9011906942

main90119-06942

9011906951

main90119-06951

9015950327

main90159-50327

9017906274

main90179-06274

9017906292

main90179-06292

9017906323

main90179-06323

9018305094

main90183-05094

9018306010

main90183-06010

9046713082A0

main90467-13082A0

9090119031

main90901-19031

91621J0814

main91621-J0814

9163160816

main91631-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

42 parts on this diagram · 10 diagrams in section
