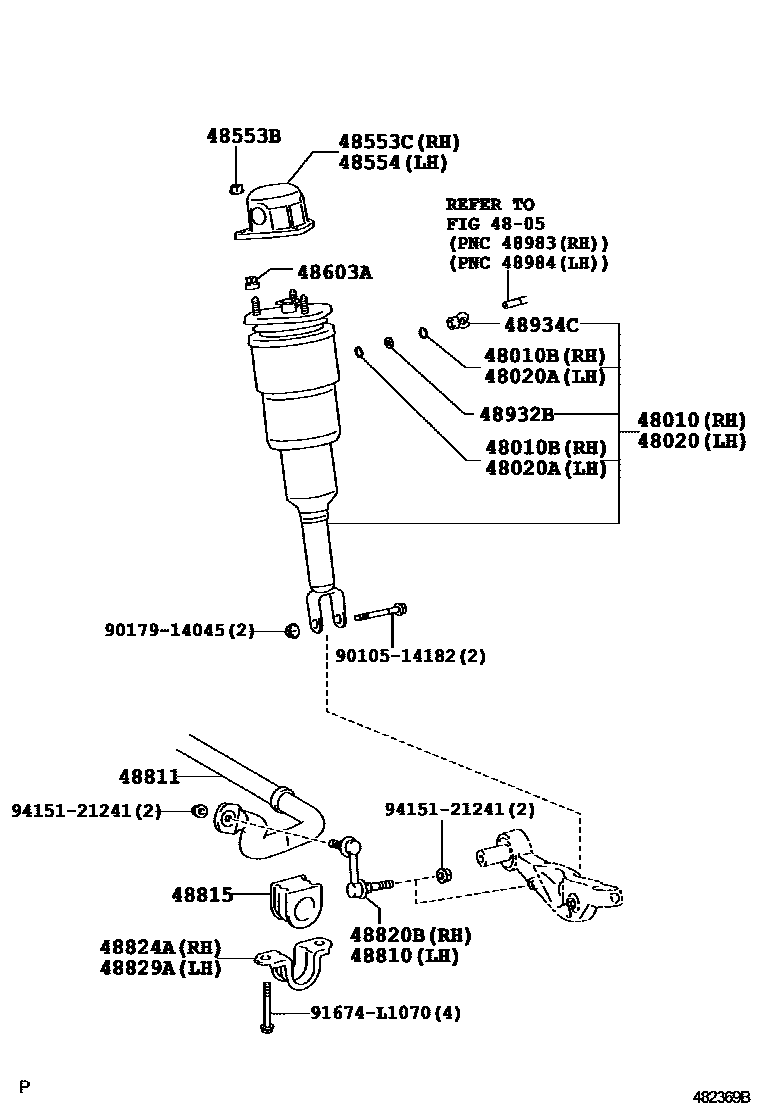

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50152iUSF40,41200809-200909

main48010-50260iUSF45,46200809-200909

main48010-50261iUSF45,46201105-201201

main48010-50262iUSF45,46201202-201209

main48010-50290iUSF40,41200909-201104

main48010-50291iUSF40,41201105-201209

main48010-50251iUSF40200708-200712

main48010-50253supersedes 48010-50152iUSF40200712-200809

main48010-50270supersedes 48010-50152iUSF40200909-201105

main48010-50271supersedes 48010-50152iUSF40201106-201209

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iUSF4#200809-200909

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50152iUSF40,41200809-200909

main48020-50260iUSF45,46200809-200909

main48020-50261iUSF45,46201105-201201

main48020-50262iUSF45,46201202-201209

main48020-50290iUSF40,41200909-201104

main48020-50291iUSF40,41201105-201209

main48020-50251iUSF40200708-200712

main48020-50253supersedes 48020-50152iUSF40200712-200809

main48020-50270supersedes 48020-50152iUSF40200909-201105

main48020-50271supersedes 48020-50152iUSF40201106-201209

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iUSF40200608-200809

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iUSF40200608-200809

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-30080iUSF40200608-200711

main48553-50120iUSF45,46200909

main48553-50130iUSF40,41200809-200909

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-30080iUSF40200608-200711

main48553-50120iUSF45,46200809-200909

main48553-50130iUSF40,41200809-200909

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iUSF40200608-200809

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUSF4#200809-200909

48811BAR, STABILIZER, FRONT

main48811-50120iUSF40,41200909

main48811-50220iUSF45,46200909

main48811-50230supersedes 48811-50120iUSF40200909

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50200×2iUSF40200608-200809

main48815-50220×2iUSF45,46200909

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUSF4#200809-200909

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50040iUSF40,41200909

main48824-50060iUSF45,46200809-200909

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-50050iUSF40200608-200809

main48829-50010iUSF45,46200909

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUSF4#200809-200909

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUSF40200608-200809

9010514182

main90105-14182

9017914045

main90179-14045

91674L1070

main91674-L1070

9415121241

main94151-21241

21 parts on this diagram · 2 diagrams in section
