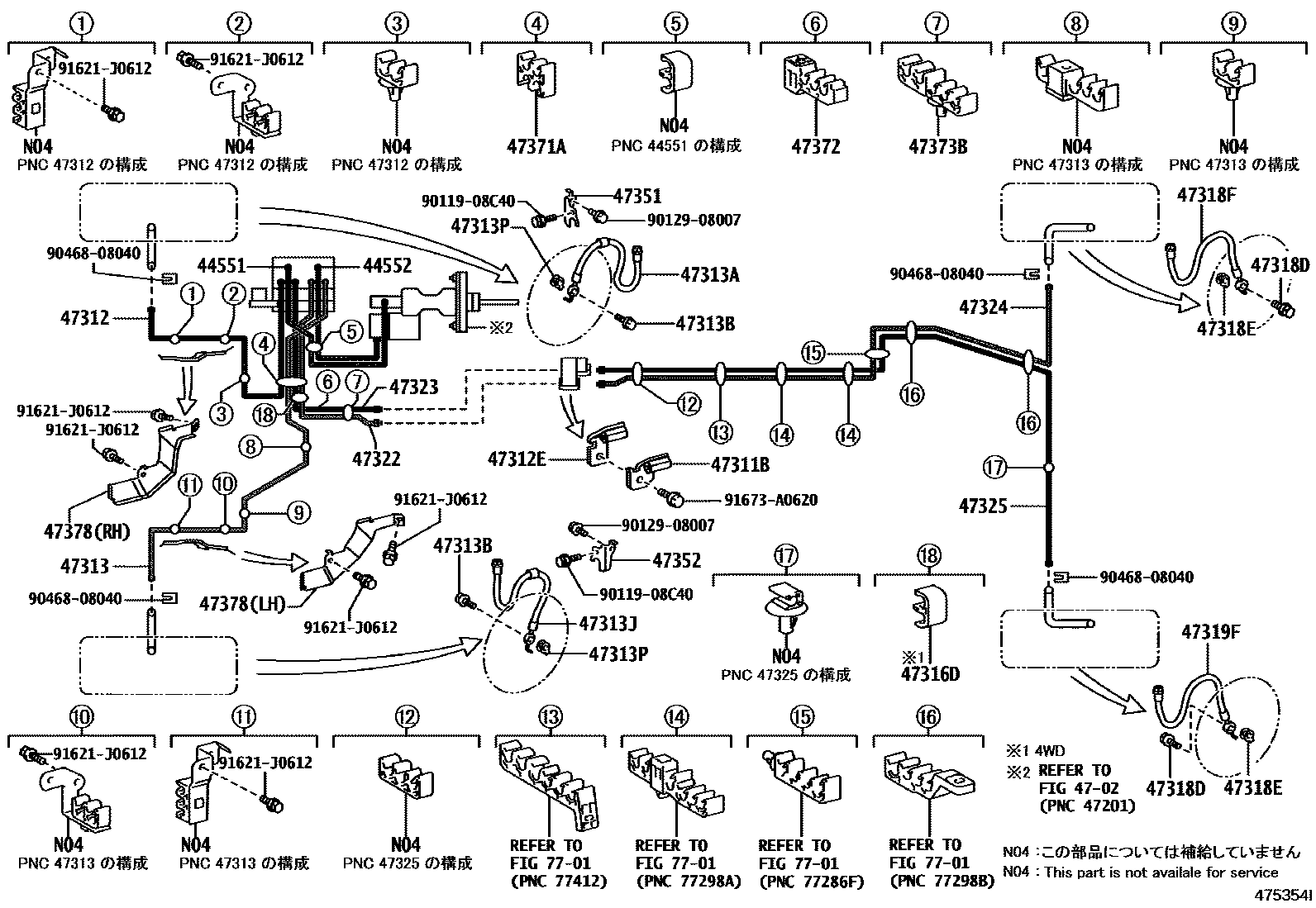

BRAKE TUBE & CLAMP

0001 1 0002 1

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-50120iUSF40200608-200809

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-50070iUSF4#200809-200909

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10274iUSF4#200909

47312TUBE, FRONT BRAKE, NO.2

main47312-50250iUSF40200608-200705

main47312-50251iUSF40200705-200809

main47312-50270iUSF45,46200809-200909

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10275iUSF4#200809-200909

47313TUBE, FRONT BRAKE, NO.3

main47313-50210iUSF40200608-200705

main47313-50211iUSF40200705-200712

main47313-50212iUSF40200801-200809

main47313-50240supersedes 47313-50260iUSF45; USF46200809-200909

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E67iUSF40200608-200703

main90947-02F75iUSF40200703-200809

main90947-02F88iUSF45,46200809-200909

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iUSF40200608-200809

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E68iUSF40200608-200703

main90947-02F76iUSF40200703-200809

main90947-02F89iUSF45,46200909

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iUSF40200608-200809

47316DGROMMET(FOR REAR BRAKE TUBE)

main90480-01555iUSF45,46200809-200909

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iUSF40200608-200809

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iUSF40200608-200809

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E69iUSF40200608-200703

main90947-02F77iUSF40200703-200809

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E69iUSF40200608-200703

main90947-02F77iUSF40200703-200809

47322TUBE, REAR BRAKE, NO.2

main47322-50230iUSF40200703-200809

main47322-50250iUSF45,46200909

47323TUBE, REAR BRAKE, NO.3

main47323-50090iUSF40200703-200809

main47323-50110iUSF45,46200909

47324TUBE, REAR BRAKE, NO.4

main47324-50140iUSF40200608-200809

main47324-50150iUSF41,46200909-201209

47325TUBE, REAR BRAKE, NO.5

main47325-50080iUSF40200608-200712

main47325-50100iUSF40,45200909-201209

main47325-50110iUSF41,46200909-201209

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-50010iUSF40,41200909-201209

main47351-50020iUSF45,46200809-200909

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-50010iUSF40200608-200809

main47352-50020iUSF45,46200909-201209

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00876iUSF40200608-200702

47372CLAMP, BRAKE TUBE, NO.2

main90949-01886iUSF40200608-200702

main90949-01D08iUSF40200703-200809

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D47iUSF4#200809-200909

47378PROTECTOR, BRAKE TUBE

main47378-50040iUSF40200608-200809

main47388-50030iUSF4#200809-200909

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

91621J0612

main91621-J0612

91673A0620

main91673-A0620

32 parts on this diagram · 2 diagrams in section
