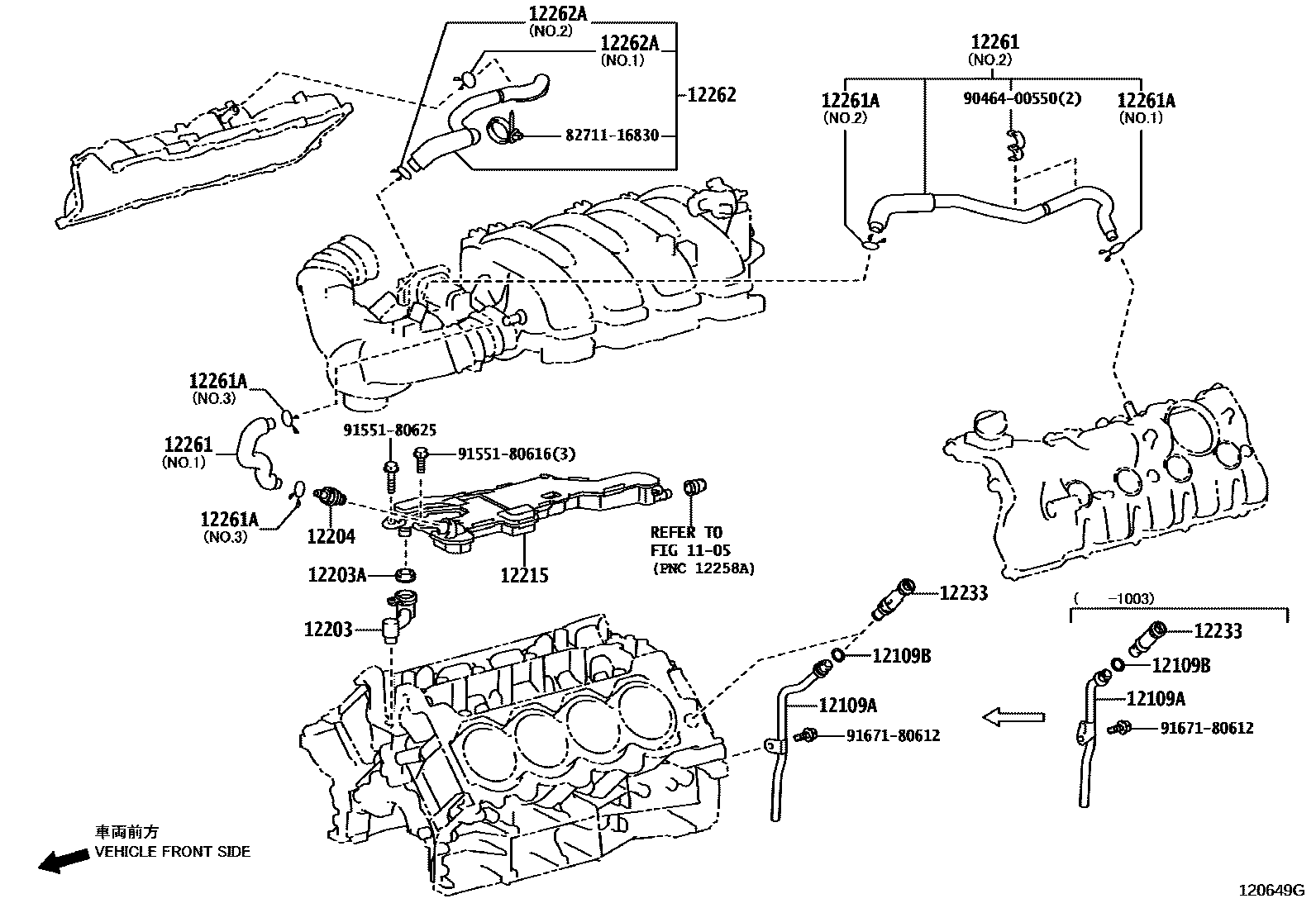

VENTILATION HOSE

1105CYLINDER BLOCK

→ Go to FIG 11-05

12109APIPE SUB-ASSY, OIL DRAIN

main12109-38010i1URFSE..USF40200608-200809

main12109-38040i1URFSE..USF4#201003

12109BRING, O(FOR OIL DRAIN PIPE)

main96723-19010i1URFSE..USF40200608-200809

12203PIPE SUB-ASSY, VENTILATION

main12203-38010i1URFSE..USF40200608-200809

12203AGASKET(FOR VENTILATION PIPE)

main12273-38020i1URFSE..USF40200608-200809

12204VALVE SUB-ASSY, VENTILATION

main12204-38010i1URFSE..USF40200608-200809

12215SEPARATOR, CASE

main12215-38020i1URFSE..USF40200608-200809

12233CONNECTOR, VENTILATION NO.1

main12233-38020i1URFSE..USF40200608-200809

main12233-38040i1URFSE..USF4#201003

12261HOSE, VENTILATION

main12261-38030i1URFSE..USF40200608-200809

main12261-38040i1URFSE..USF4#200909

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017×2i1URFSE..USF4#200809-200909

main90467-17126i1URFSE..USF4#200909

main90467-21004i1URFSE..USF40200608-200809

12262HOSE, VENTILATION, NO.2

main12262-38030i1URFSE..USF40200608-200809

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17126i1URFSE..USF4#200909

main90467-21004i1URFSE..USF4#200809-200909

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9046400550

main90464-00550

9155180616

main91551-80616

9155180625

main91551-80625

9167180612

main91671-80612

17 parts on this diagram · 1 diagram in section
