STANDARD TOOL

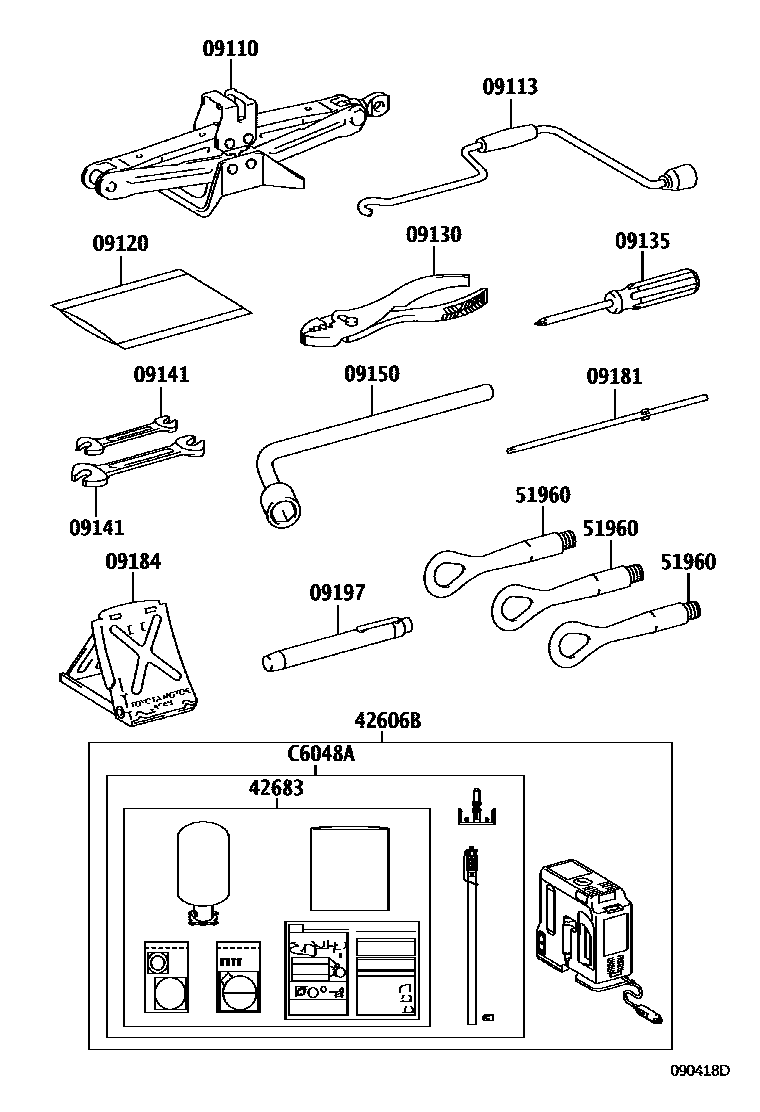

Parts diagram

09110JACK ASSY

main09111-50080i200809-200909

main09111-50110i201103

09113HANDLE, JACK

main09113-50010i200909-201012

main09113-50030i201101

09120BAG, TOOL

main09120-28040i200809-200909

09130PLIERS

main09130-50040i200608-200809

09135DRIVER, SCREW

main09135-50050i200608-200809

main09135-50060i200912

main99915-10700i200909-200911

09141SPANNER

main09141-50050i200608-200809

main09141-50060i200608-200809

main09141-60010supersedes 09141-60020i200909

main09141-60020i200909-201107

09150WRENCH, HUB NUT BOX

main09150-50030i200608-200809

main09150-50040i200909-201209

09181ROD, PARKING BRAKE RELEASE

main09181-50010i200608-200809

09184STOPPER, WHEEL

main09184-00010i200608-200809

09197LIGHT, PEN

main09197-50040i200608-200809

42606BREPAIR KIT, TUBELESS TIRE

main42606-50010i200809-200909

main42606-50011i201206-201209

42683SEAL, TIRE REPAIR

main42683-50010i200809-200909

main42683-50011i201206-201209

51960HOOK ASSY, FRONT

main51961-50040×2i200608-200809

main51961-50050×2i200909-201110

main51961-50051×2i201111-201209

C6048ASEALANT, REPAIR TIRE

mainC604850010i200809-200909

mainC604850011i201206-201209

14 parts on this diagram · 1 diagram in section
