FOG LAMP

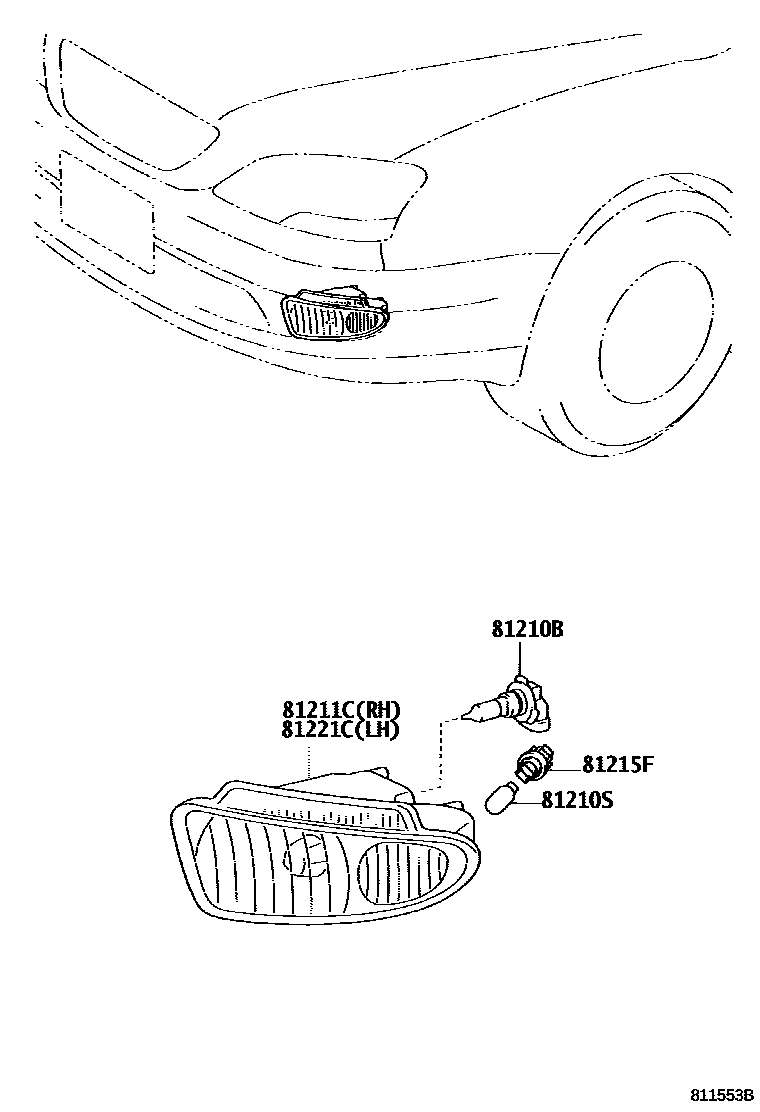

Parts diagram

81210BBULB, FOG LAMP

main90080-81040×2i200008-200307

main90981-13047×2i200307

81210SBULB, CORNERING LAMP

main90981-13043×2i200307

main90981-13050×2i200008-200307

81211CLAMP UNIT, FOG LAMP, RH

main81211-50060i200008-200108

main81211-50061i200108-200307

main81211-50080i200307-200503

main81211-50081i200503

81215FSOCKET & WIRE, CORNERING LAMP

main90075-99128×2i200008-200307

81221CLAMP UNIT, FOG LAMP, LH

main81221-50060i200008-200108

main81221-50061i200108-200307

main81221-50080i200307-200503

main81221-50081i200503

5 parts on this diagram · 2 diagrams in section
