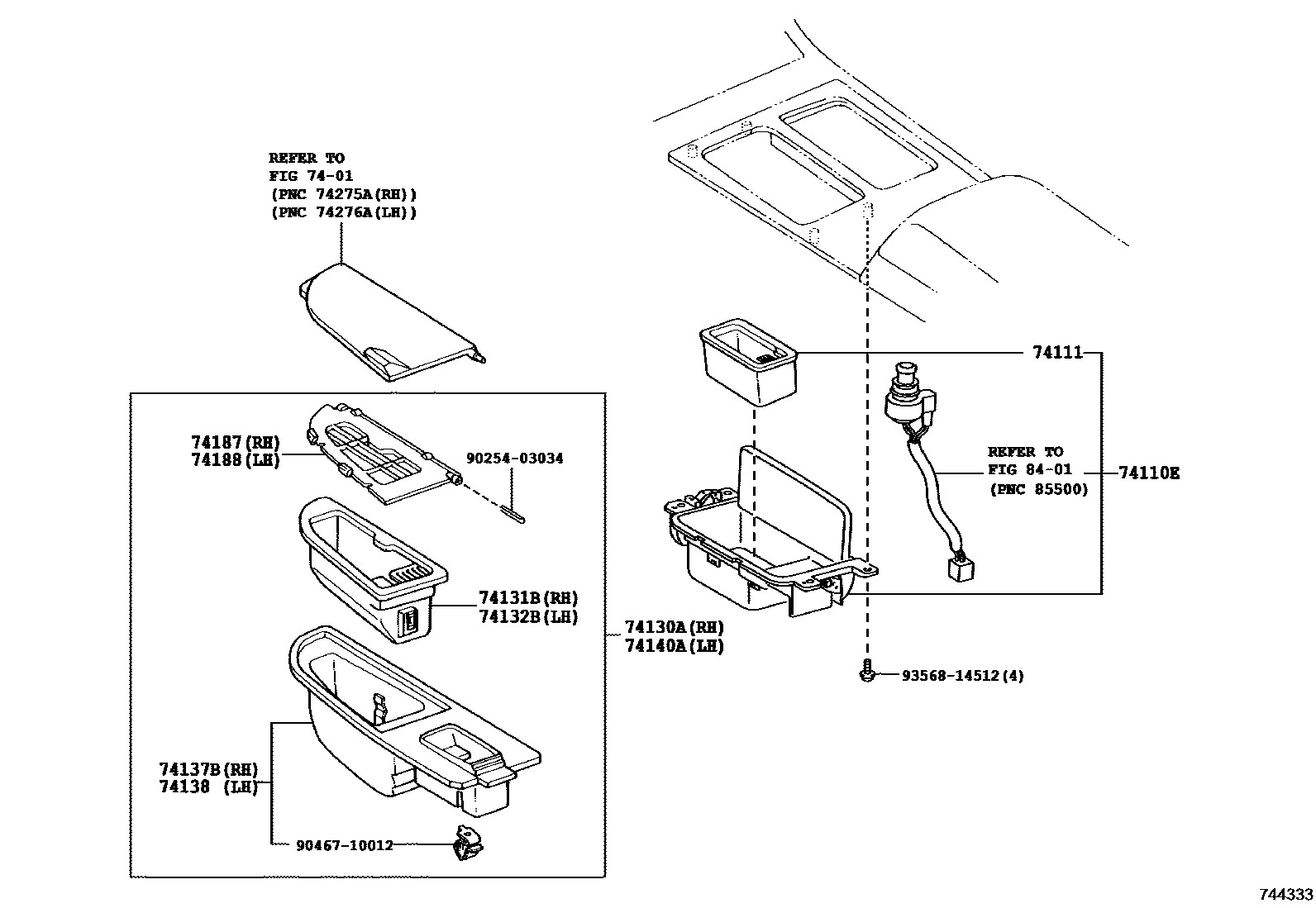

ASH RECEPTACLE

7401ARMREST & VISOR

→ Go to FIG 74-01

74110ERECEPTACLE ASSY, FRONT ASH

main74110-50100-E0iUCF3#..B,C200108-200201

main74110-50100-E1iUCF3#..B,C200108-200201

74111BOX, FRONT ASH RECEPTACLE

main74111-50040iUCF3#200008-200307

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-50030iUCF3#200008-200307

74131BBOX, REAR ASH RECEPTACLE, RH

main74131-50020iUCF3#200008-200307

74132BBOX, REAR ASH RECEPTACLE, LH

main74132-50020iUCF3#200008-200307

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-50030iUCF3#200008-200307

74138RETAINER, REAR ASH RECEPTACLE, INNER LH

main74138-50030iUCF3#200008-200307

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-50030iUCF3#200008-200307

74187PROTECTOR, REAR ASH RECEPTACLE

main74187-50010iUCF3#200008-200307

74188PROTECTOR, REAR ASH RECEPTACLE, NO.2

main74188-50010iUCF3#200008-200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9025403034

main90254-03034

9046710012

main90467-10012

9356814512

main93568-14512

15 parts on this diagram · 1 diagram in section
