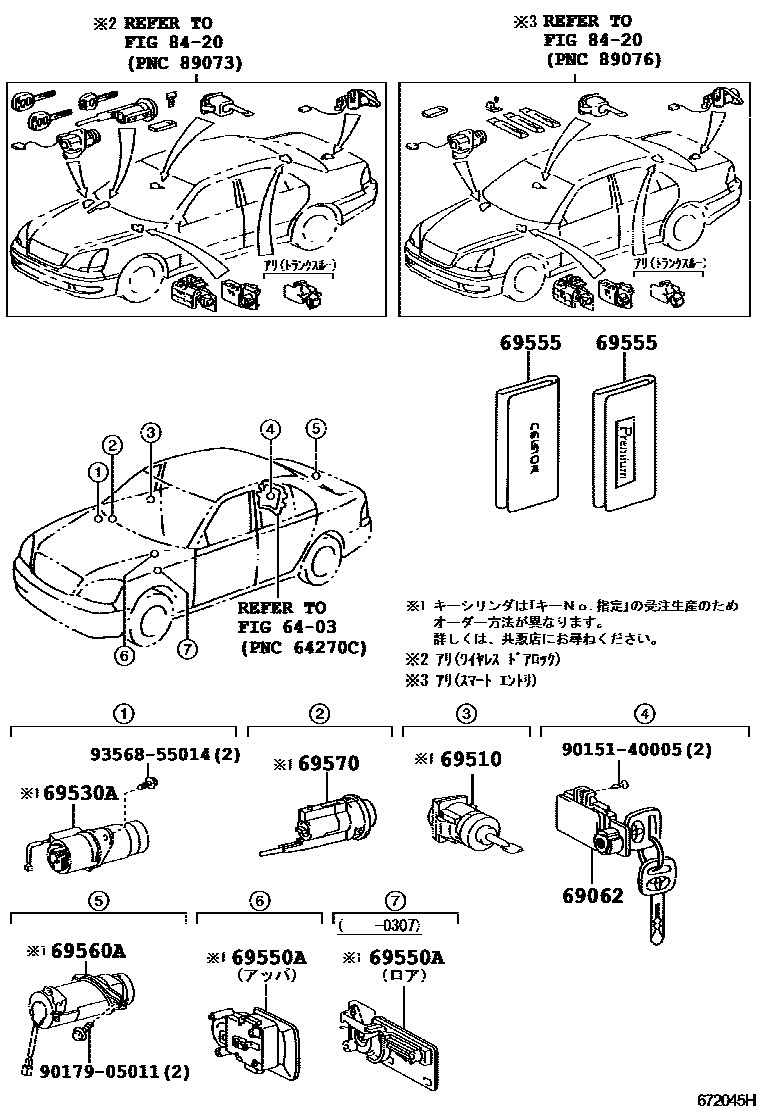

LOCK CYLINDER SET

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50120iUCF3#200307-200608

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-50081iUCF3#200008-200307

69530ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL

main69530-30020iUCF3#200008-200307

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30130iUCF3#200008-200307

main69550-50030iUCF3#200307-200608

69555COVER, KEY

main69555-50050iUCF3#200008-200307

main69555-50070iUCF3#..B,C200108-200201

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-50080iUCF3#200008-200307

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-50040iUCF3#200008-200307

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9015140005

main90151-40005

9017905011

main90179-05011

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
