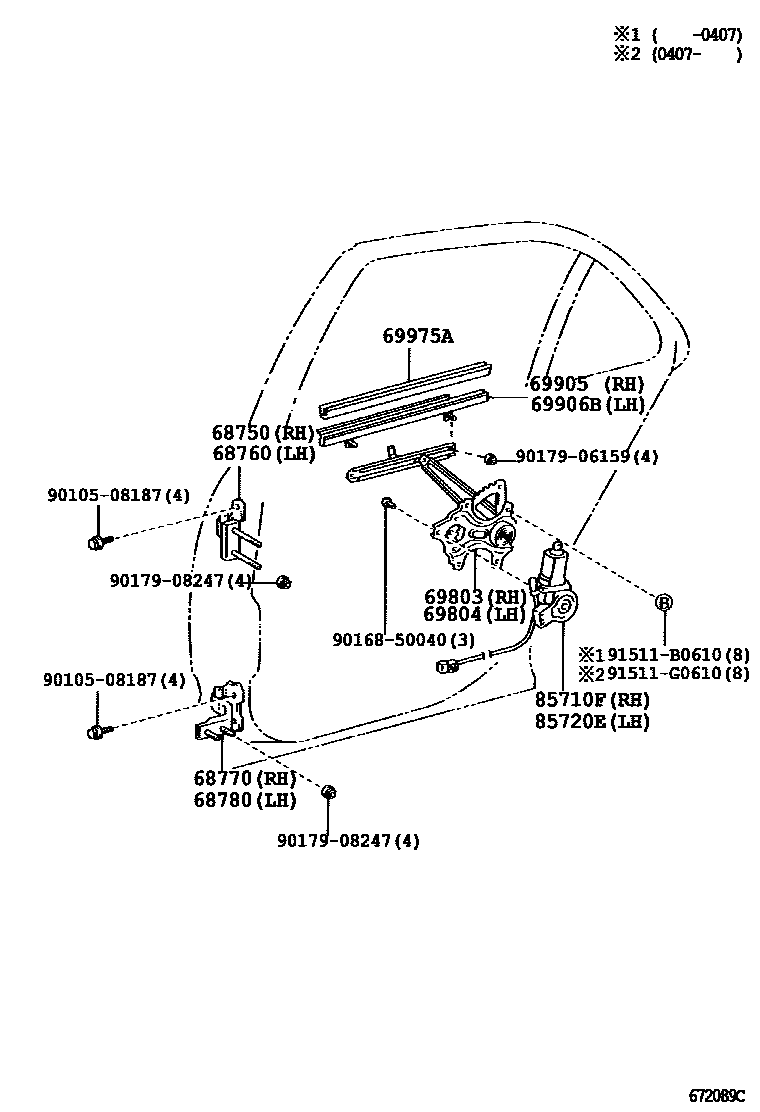

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-50040iUCF3#200008-200307

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-50040iUCF3#200008-200307

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-50030iUCF3#200008-200307

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-50040iUCF3#200008-200307

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-50030iUCF3#200008-200307

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-50030iUCF3#200008-200307

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-50010iUCF3#200008-200307

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-50010iUCF3#200008-200307

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-50010×2iUCF3#200008-200307

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50090iUCF3#200008-200307

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50090iUCF3#200008-200307

9010508187

main90105-08187

9016850040

main90168-50040

9017906159

main90179-06159

9017908247

main90179-08247

91511B0610

main91511-B0610

91511G0610

main91511-G0610

17 parts on this diagram · 1 diagram in section
