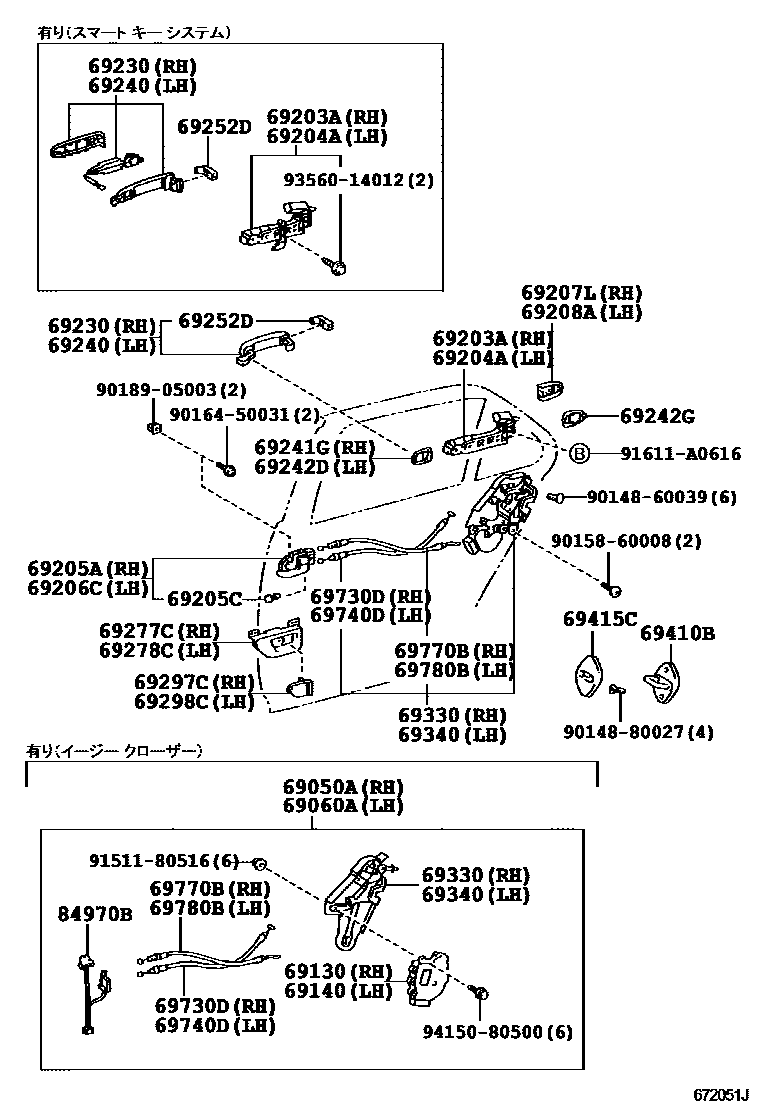

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69207LPLUG SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
69208APLUG SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69252DGUIDE, DOOR OUTSIDE HANDLE
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM21,24
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
IVORY,TRIM04
ECRU,TRIM00
ECRU,TRIM03
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM21,24
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24
BLACK,TRIM2#
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM21,24
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016450031
main90164-50031
9018905003
main90189-05003
9151180516
main91511-80516
91611A0616
main91611-A0616
9356014012
main93560-14012
9415080500
main94150-80500
39 parts on this diagram · 1 diagram in section
