FRONT DOOR LOCK & HANDLE

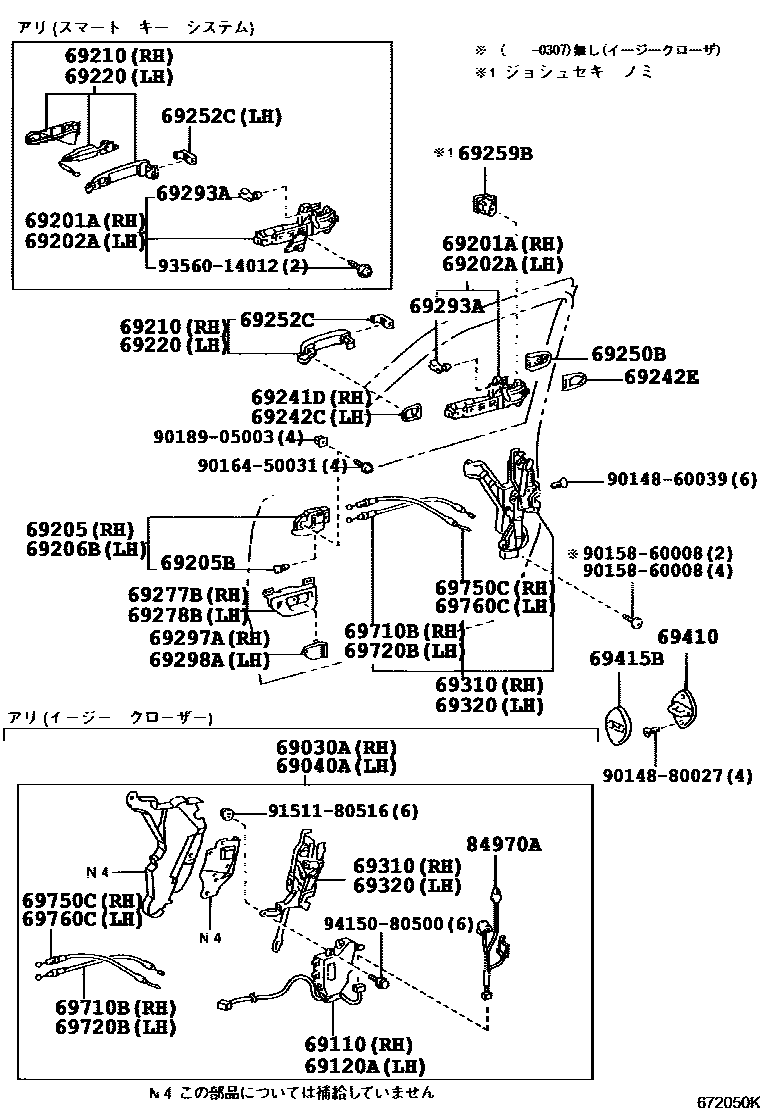

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-50220i200008-200307
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-50220i200008-200307
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-50030i200008-200307
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
main69120-50030i200008-200307
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-50011i200008-200307
main69201-50021i200008-200307
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-50011i200008-200307
main69202-50021i200008-200307
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-50030-A0i200008-200307
IVORY,TRIM04
sub69205-50030
main69205-50030-A1i200307-200608
ECRU,TRIM00
sub69205-50030
main69205-50030-A1i200008-200307
ECRU,TRIM03
sub69205-50030
main69205-50030-A2i200307-200608
NEW IVORY,TRIM07
sub69205-50030
main69205-50030-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub69205-50030
main69205-50030-B1i200307-200608
NEW GRAY,TRIM1#
sub69205-50030
main69205-50030-C0i200008-200608
BLACK,TRIM2#
sub69205-50030
main69205-50030-C0i200307-200608
BLACK,TRIM21,24
sub69205-50030
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i200008-200407
main90541-04018i200407
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-50030-A0i200008-200307
IVORY,TRIM04
sub69206-50030
main69206-50030-A1i200008-200307
ECRU,TRIM03
sub69206-50030
main69206-50030-A1i200307-200608
ECRU,TRIM00
sub69206-50030
main69206-50030-A2i200307-200608
NEW IVORY,TRIM07
sub69206-50030
main69206-50030-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub69206-50030
main69206-50030-B1i200307-200608
NEW GRAY,TRIM1#
sub69206-50030
main69206-50030-C0i200307-200608
BLACK,TRIM21,24
sub69206-50030
main69206-50030-C0i200008-200608
BLACK,TRIM2#
sub69206-50030
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-50040-A0i200008-200307
main69210-50040-A1i200008-200307
main69210-50040-B1i200008-200307
main69210-50040-C0i200008-200307
main69210-50040-D0i200008-200307
main69210-50040-D1i200008-200107
main69210-50040-G0i200008-200307
main69210-50040-G1i200008-200307
main69210-50040-J0i200008-200307
main69210-50040-J1i200107-200307
main69210-50050-A0i200008-200608
WHITE PEARL CS.,062
sub69210-50050
main69210-50050-A1i200008-200307
IVORY PEARL CS.,066
sub69210-50050
main69210-50050-A3i200307-200608
SILKY WHITE PEARL CS,072
sub69210-50050
main69210-50050-B1i200008-200307
SILVER ME.,1C0
sub69210-50050
main69210-50050-B3i200307-200608
DK.GRAY MC.,1E0
sub69210-50050
main69210-50050-B4i200307-200608
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-C0i200008-200608
BLACK,202
sub69210-50050
main69210-50050-D0i200008-200608
BORDEAUX MC.,3P2
sub69210-50050
main69210-50050-D1i200008-200107
ROSE M.M.,3P4
sub69210-50050
main69210-50050-E2i200307-200608
GRAYISH BROWN M.M.,4S1
sub69210-50050
main69210-50050-G0i200008-200307
GREEN M.M.,6S5
sub69210-50050
main69210-50050-G1i200008-200307
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-G2i200307-200608
OLIVE M.M.,6T7
sub69210-50050
main69210-50050-J0i200008-200608
DARK BLUE MC.,8P8
sub69210-50050
main69210-50050-J2i200107-200307
LT. BLUE M.M.,8P7
sub69210-50050
main69210-50060-A0i200307-200608
main69210-50060-A1i200307-200608
main69210-50060-B0i200307-200608
main69210-50060-B1i200307-200608
main69210-50060-C0i200307-200608
main69210-50060-D0i200307-200608
main69210-50060-E1i200307-200608
main69210-50060-G0i200307-200608
main69210-50060-J0i200307-200608
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-50040-A0i200008-200307
main69210-50040-A1i200008-200307
main69210-50040-B1i200008-200307
main69210-50040-C0i200008-200307
main69210-50040-D0i200008-200307
main69210-50040-D1i200008-200107
main69210-50040-G0i200008-200307
main69210-50040-G1i200008-200307
main69210-50040-J0i200008-200307
main69210-50040-J1i200107-200307
main69210-50050-A0i200008-200608
WHITE PEARL CS.,062
sub69210-50050
main69210-50050-A1i200008-200307
IVORY PEARL CS.,066
sub69210-50050
main69210-50050-A3i200307-200608
SILKY WHITE PEARL CS,072
sub69210-50050
main69210-50050-B1i200008-200307
SILVER ME.,1C0
sub69210-50050
main69210-50050-B3i200307-200608
DK.GRAY MC.,1E0
sub69210-50050
main69210-50050-B4i200307-200608
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-C0i200008-200608
BLACK,202
sub69210-50050
main69210-50050-D0i200008-200608
BORDEAUX MC.,3P2
sub69210-50050
main69210-50050-D1i200008-200107
ROSE M.M.,3P4
sub69210-50050
main69210-50050-E2i200307-200608
GRAYISH BROWN M.M.,4S1
sub69210-50050
main69210-50050-G0i200008-200307
GREEN M.M.,6S5
sub69210-50050
main69210-50050-G1i200008-200307
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-G2i200307-200608
OLIVE M.M.,6T7
sub69210-50050
main69210-50050-J0i200008-200608
DARK BLUE MC.,8P8
sub69210-50050
main69210-50050-J2i200107-200307
LT. BLUE M.M.,8P7
sub69210-50050
main69210-50060-A0i200307-200608
main69210-50060-A1i200307-200608
main69210-50060-B0i200307-200608
main69210-50060-B1i200307-200608
main69210-50060-C0i200307-200608
main69210-50060-D0i200307-200608
main69210-50060-E1i200307-200608
main69210-50060-G0i200307-200608
main69210-50060-J0i200307-200608
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-50020i200008-200307
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-50020i200008-200307
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-50020i200008-200307
69250BCOVER ASSY, DOOR OUTSIDE HANDLE
main69250-50011-A0i200008-200608
sub69250-50011
main69250-50011-A1i200008-200307
sub69250-50011
main69250-50011-A3i200307-200608
sub69250-50011
main69250-50011-B1i200008-200307
sub69250-50011
main69250-50011-B3i200307-200608
sub69250-50011
main69250-50011-B4i200307-200608
sub69250-50011
main69250-50011-C0i200008-200608
sub69250-50011
main69250-50011-D0i200008-200608
sub69250-50011
main69250-50011-D1i200008-200107
sub69250-50011
main69250-50011-E2i200307-200608
sub69250-50011
main69250-50011-G0i200008-200307
sub69250-50011
main69250-50011-G1i200008-200307
sub69250-50011
main69250-50011-G2i200307-200608
sub69250-50011
main69250-50011-J0i200008-200608
sub69250-50011
main69250-50011-J2i200107-200307
sub69250-50011
main69250-50021-A0i200008-200608
sub69250-50021
main69250-50021-A1i200008-200307
sub69250-50021
main69250-50021-A3i200307-200608
sub69250-50021
main69250-50021-B1i200008-200307
sub69250-50021
main69250-50021-B3i200307-200608
sub69250-50021
main69250-50021-B4i200307-200608
sub69250-50021
main69250-50021-C0i200008-200608
sub69250-50021
main69250-50021-D0i200008-200608
sub69250-50021
main69250-50021-D1i200008-200107
sub69250-50021
main69250-50021-E2i200307-200608
sub69250-50021
main69250-50021-G0i200008-200307
sub69250-50021
main69250-50021-G1i200008-200307
sub69250-50021
main69250-50021-G2i200307-200608
sub69250-50021
main69250-50021-J0i200008-200608
sub69250-50021
main69250-50021-J2i200107-200307
sub69250-50021
69252CGUIDE, DOOR OUTSIDE HANDLE
main69252-50010i200008-200205
main69252-50011i200205-200307
main69252-50011i200307-200608
69259BRETAINER, DOOR OUTSIDE HANDLE, LH
main69259-50011i200008-200307
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-50070-A0i200008-200307
IVORY,TRIM04
main69277-50070-A1i200008-200307
ECRU,TRIM03
main69277-50070-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69277-50070-C0i200008-200307
BLACK,TRIM2#
main69277-50080-A0i200008-200307
IVORY,TRIM04
main69277-50080-A1i200307-200608
ECRU,TRIM00
main69277-50080-A1i200008-200307
ECRU,TRIM03
main69277-50080-A2i200307-200608
NEW IVORY,TRIM07
main69277-50080-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69277-50080-B1i200307-200608
NEW GRAY,TRIM1#
main69277-50080-C0i200008-200608
BLACK,TRIM2#
main69277-50080-C0i200307-200608
BLACK,TRIM21,24
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-50070-A0i200008-200307
IVORY,TRIM04
main69278-50070-A1i200008-200307
ECRU,TRIM03
main69278-50070-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69278-50070-C0i200008-200307
BLACK,TRIM2#
main69278-50080-A0i200008-200307
IVORY,TRIM04
sub69278-50080
main69278-50080-A1i200307-200608
ECRU,TRIM00
sub69278-50080
main69278-50080-A1i200008-200307
ECRU,TRIM03
sub69278-50080
main69278-50080-A2i200307-200608
NEW IVORY,TRIM07
sub69278-50080
main69278-50080-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub69278-50080
main69278-50080-B1i200307-200608
NEW GRAY,TRIM1#
sub69278-50080
main69278-50080-C0i200307-200608
BLACK,TRIM21,24
sub69278-50080
main69278-50080-C0i200008-200608
BLACK,TRIM2#
sub69278-50080
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050i200008-200307
main69293-12060i200008-200307
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
main69297-50020-A0i200008-200307
IVORY,TRIM04
main69297-50020-A1i200008-200307
ECRU,TRIM03
main69297-50020-A1i200307-200608
ECRU,TRIM00
main69297-50020-A2i200307-200608
NEW IVORY,TRIM07
main69297-50020-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69297-50020-B1i200307-200608
NEW GRAY,TRIM1#
main69297-50020-C0i200008-200608
BLACK,TRIM2#
main69297-50020-C0i200307-200608
BLACK,TRIM21,24
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
main69298-50020-A0i200008-200307
IVORY,TRIM04
main69298-50020-A1i200307-200608
ECRU,TRIM00
main69298-50020-A1i200008-200307
ECRU,TRIM03
main69298-50020-A2i200307-200608
NEW IVORY,TRIM07
main69298-50020-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69298-50020-B1i200307-200608
NEW GRAY,TRIM1#
main69298-50020-C0i200008-200608
BLACK,TRIM2#
main69298-50020-C0i200307-200608
BLACK,TRIM21,24
69310LOCK ASSY, FRONT DOOR, RH
main69030-50190i200008-200307
main69310-50050i200008-200307
69320LOCK ASSY, FRONT DOOR, LH
main69040-50190i200008-200307
main69320-50050i200008-200307
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33020i200311
main69410-51010i200008-200311
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-30020i200008-200311
main69415-33010i200311
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-50010i200008-200307
main69710-50020i200008-200307
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-50010i200008-200307
main69710-50020i200008-200307
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-50030i200008-200307
main69750-50040i200008-200307
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-50030i200008-200307
main69750-50040i200008-200307
84970ASWITCH ASSY, COMBINATION
main84970-50050i200008-200307
main84970-50060i200008-200307
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016450031
main90164-50031
9018905003
main90189-05003
9151180516
main91511-80516
9356014012
main93560-14012
9415080500
main94150-80500

39 parts on this diagram · 1 diagram in section
