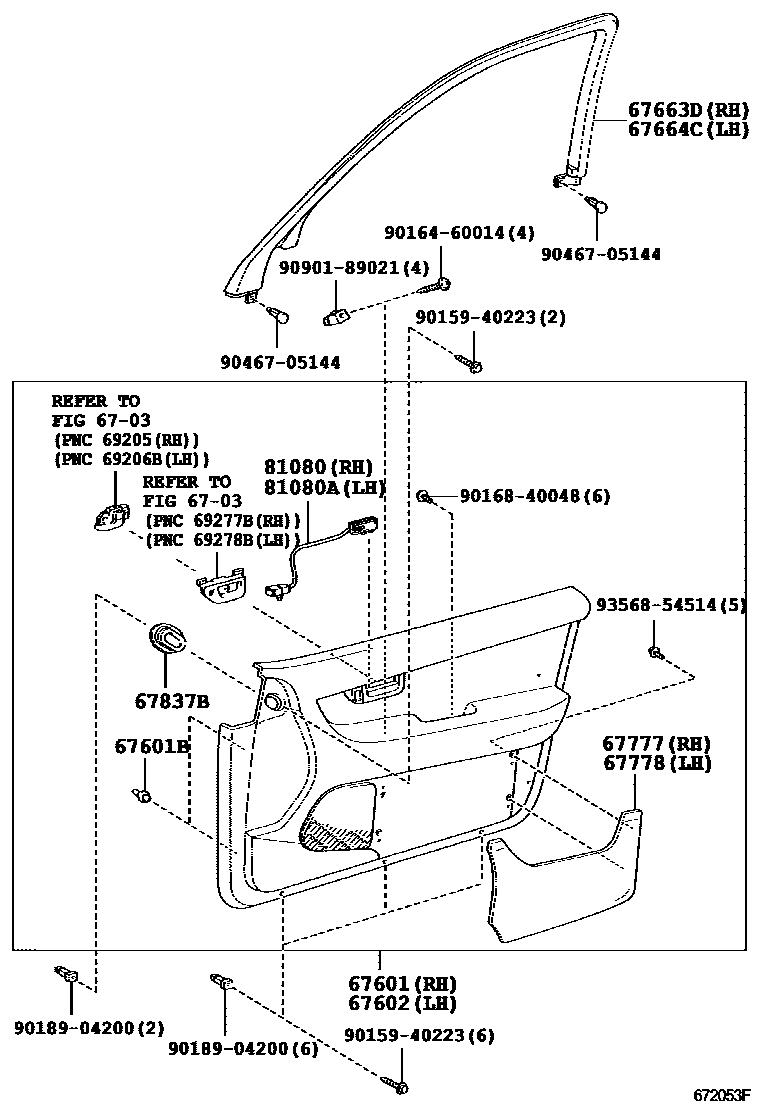

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

6703

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-50280-A2iUCF30..A200008-200307

main67610-50280-B2iUCF30..A200008-200307

main67610-50300-B2iUCF30..A200008-200307

main67610-50310-A4iUCF30..A200008-200307

sub67610-50300

main67610-50310-A5iUCF30..A200008-200307

sub67610-50300

main67610-50310-C2iUCF30..A200008-200307

sub67610-50300

main67610-50320-A2iUCF3#..B,C200008-200307

main67610-50320-B2iUCF3#..B,C200008-200307

main67610-50321-A1iUCF3#..A,C200307-200502

sub67610-50322

main67610-50321-B0iUCF3#..A,C200307-200502

sub67610-50322

main67610-50322-A0iUCF3#..A,C200503-200608

main67610-50322-B0iUCF3#..A,C200503-200608

main67610-50340-B2iUCF3#..B,C200008-200307

main67610-50341-B0iUCF3#200307-200502

sub67610-50351

sub67610-50342

main67610-50342-B0iUCF3#200503-200608

main67610-50350-A4iUCF3#..B,C200008-200307

sub67610-50340

main67610-50350-A5iUCF3#..B,C200008-200307

sub67610-50340

main67610-50350-C2iUCF3#..B,C200008-200307

sub67610-50340

main67610-50351-A0iUCF3#200307-200502

sub67610-50352

sub67610-50342

main67610-50351-A1iUCF3#200307-200502

sub67610-50352

sub67610-50342

main67610-50351-C0iUCF3#200307-200502

sub67610-50352

sub67610-50342

main67610-50352-A0iUCF3#200503-200608

main67610-50352-A1iUCF3#200503-200608

main67610-50352-C0iUCF3#200503-200608

main67610-50360-C6iUCF31200008-200307

main67610-50361-C1iUCF31200307-200502

sub67610-50362

main67610-50362-C0iUCF31200503-200608

main67610-50440-C0iUCF3#..B,C200108-200201

main67610-50440-E0iUCF3#..B,C200108-200201

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09203iUCF3#200106-200608

main90467-10161iUCF3#200008-200106

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-50280-A2iUCF30..A200008-200307

main67620-50280-B2iUCF30..A200008-200307

main67620-50300-B2iUCF30..A200008-200307

sub67620-50310

main67620-50310-A4iUCF30..A200008-200307

main67620-50310-A5iUCF30..A200008-200307

main67620-50310-C2iUCF30..A200008-200307

main67620-50320-A2iUCF3#..B,C200008-200307

main67620-50320-B2iUCF3#..B,C200008-200307

main67620-50321-A1iUCF3#..A,C200307-200502

sub67620-50322

main67620-50321-B0iUCF3#..A,C200307-200502

sub67620-50322

main67620-50322-A0iUCF3#..A,C200503-200608

main67620-50322-B0iUCF3#..A,C200503-200608

main67620-50340-B2iUCF3#..B,C200008-200307

main67620-50341-B0iUCF3#200307-200502

sub67620-50351

sub67620-50342

main67620-50342-B0iUCF3#200503-200608

main67620-50350-A4iUCF3#..B,C200008-200307

main67620-50350-A5iUCF3#..B,C200008-200307

main67620-50350-C2iUCF3#..B,C200008-200307

main67620-50351-A0iUCF3#200307-200502

sub67620-50352

sub67620-50342

main67620-50351-A1iUCF3#200307-200502

sub67620-50352

sub67620-50342

main67620-50351-C0iUCF3#200307-200502

sub67620-50352

sub67620-50342

main67620-50352-A0iUCF3#200503-200608

main67620-50352-A1iUCF3#200503-200608

main67620-50352-C0iUCF3#200503-200608

main67620-50360-C6iUCF31200008-200307

main67620-50361-C1iUCF31200307-200502

sub67620-50362

main67620-50362-C0iUCF31200503-200608

main67620-50440-C0iUCF3#..B,C200108-200201

main67620-50440-E0iUCF3#..B,C200108-200201

67663DGARNISH, DOOR FRAME, RH

main67663-50030-B0iUCF3#200008-200307

DK.CHARCOAL,TRIM1#

sub67663-50030

main67663-50030-B1iUCF3#200307-200608

MD.GRAY,TRIM1#

sub67663-50030

main67663-50030-C0iUCF31200307-200608

BLACK,TRIM21,24

sub67663-50030

main67663-50030-C0iUCF3#200008-200608

BLACK,TRIM2#

sub67663-50030

main67663-50030-E0iUCF3#200008-200307

SANDAL WOOD,TRIM04

sub67663-50030

main67663-50030-E0iUCF3#200307-200608

SANDAL WOOD,TRIM07

sub67663-50030

main67663-50030-E1iUCF3#200008-200307

CLOVEBROWN,TRIM03

sub67663-50030

main67663-50030-E1iUCF3#200307-200608

CLOVEBROWN,TRIM00

sub67663-50030

67664CGARNISH, DOOR FRAME, LH

main67664-50030-B0iUCF3#200008-200307

DK.CHARCOAL,TRIM1#

sub67664-50030

main67664-50030-B1iUCF3#200307-200608

MD.GRAY,TRIM1#

sub67664-50030

main67664-50030-C0iUCF31200307-200608

BLACK,TRIM21,24

sub67664-50030

main67664-50030-C0iUCF3#200008-200608

BLACK,TRIM2#

sub67664-50030

main67664-50030-E0iUCF3#200307-200608

SANDAL WOOD,TRIM07

sub67664-50030

main67664-50030-E0iUCF3#200008-200307

SANDAL WOOD,TRIM04

sub67664-50030

main67664-50030-E1iUCF3#200307-200608

CLOVEBROWN,TRIM00

sub67664-50030

main67664-50030-E1iUCF3#200008-200307

CLOVEBROWN,TRIM03

sub67664-50030

67777POCKET, FRONT DOOR TRIM, RH

main67770-50010-A0iUCF3#200008-200307

IVORY,TRIM04

main67770-50010-A1iUCF3#200008-200307

ECRU,TRIM03

main67770-50010-A1iUCF3#200307-200608

ECRU,TRIM00

main67770-50010-A2iUCF3#200307-200608

NEW IVORY,TRIM07

main67770-50010-B0iUCF3#200008-200307

MD.CHARCOAL,TRIM1#

main67770-50010-B1iUCF3#200307-200608

NEW GRAY,TRIM1#

main67770-50010-C0iUCF30200008-200608

BLACK,TRIM2#

main67770-50010-C0iUCF30200307-200608

BLACK,TRIM21,24

67778POCKET, FRONT DOOR TRIM, LH

main67780-50010-A0iUCF3#200008-200307

IVORY,TRIM04

main67780-50010-A1iUCF3#200008-200307

ECRU,TRIM03

main67780-50010-A1iUCF3#200307-200608

ECRU,TRIM00

main67780-50010-A2iUCF3#200307-200608

NEW IVORY,TRIM07

main67780-50010-B0iUCF3#200008-200307

MD.CHARCOAL,TRIM1#

main67780-50010-B1iUCF3#200307-200608

NEW GRAY,TRIM1#

main67780-50010-C0iUCF30200307-200608

BLACK,TRIM21,24

main67780-50010-C0iUCF31200008-200608

BLACK,TRIM2#

67837BSEAL, FRONT DOOR DUST PROOF

main67837-50040-B0iUCF3#200008-200307

DARK CHARCOAL,TRIM1#

main67837-50040-B2iUCF3#200307-200608

MD.GRAY,TRIM1#

main67837-50040-C0iUCF3#200008-200608

BLACK,TRIM2#

main67837-50040-E0iUCF3#200008-200307

CLOVE BROWN,TRIM03

main67837-50040-E0iUCF3#200307-200608

CLOVE BROWN,TRIM00

main67837-50040-E1iUCF3#200307-200608

SANDAL WOOD,TRIM07

main67837-50040-E1iUCF3#200008-200307

SANDAL WOOD,TRIM04

81080LAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50010iUCF3#200008-200608

81080ALAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50020iUCF3#200008-200608

9015940223

main90159-40223

9016460014

main90164-60014

9016840048

main90168-40048

9018904200

main90189-04200

9046705144

main90467-05144

9090189021

main90901-89021

9356854514

main93568-54514

18 parts on this diagram · 5 diagrams in section
