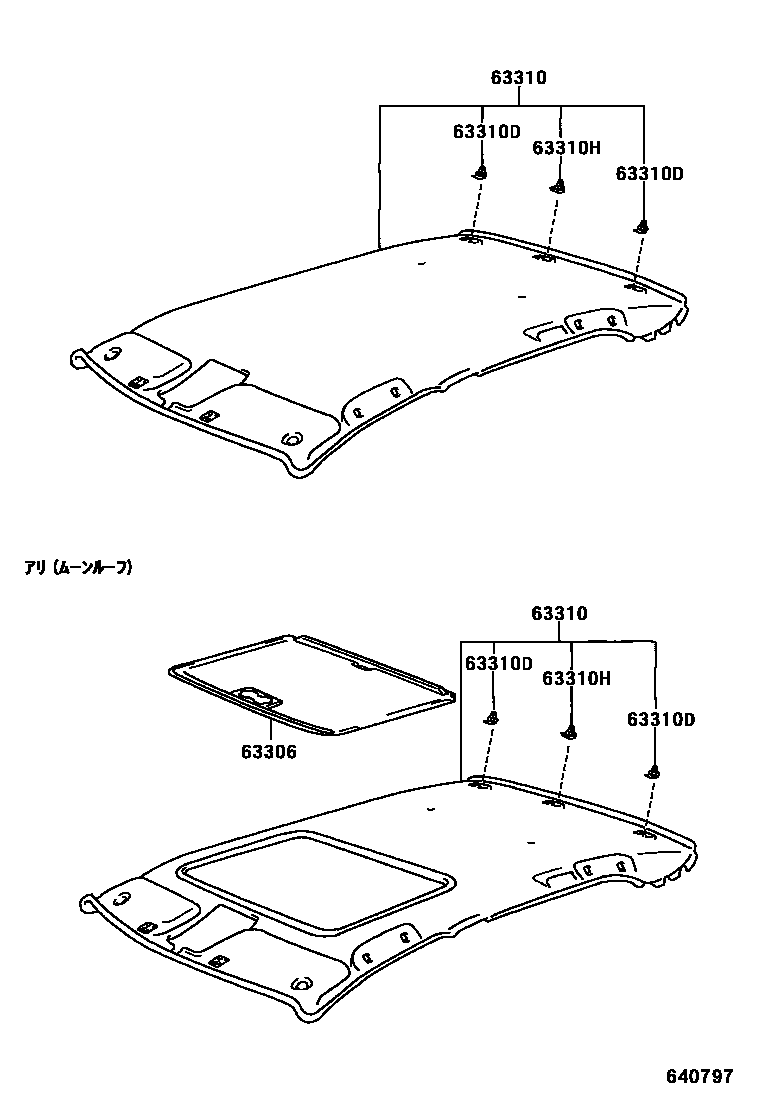

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-50040-A0iUCF3#200008-200307

main63306-50040-A1iUCF3#200008-200307

main63306-50040-A2iUCF3#200307-200608

main63306-50040-B0iUCF3#200008-200307

main63306-50040-B1iUCF30; UCF31200307-200608

main63306-50050-B0iUCF31200008-200307

main63306-50050-B1iUCF31200307-200608

63310HEADLINING ASSY, ROOF

main63310-50010-A0iUCF3#200008-200307

main63310-50010-A1iUCF3#200008-200307

main63310-50010-B0iUCF3#200008-200307

main63310-50020-A0iUCF31200008-200307

main63310-50020-A1iUCF31200008-200307

main63310-50020-B0iUCF31200008-200307

main63310-50030-A0iUCF3#200008-200307

main63310-50030-A1iUCF3#200008-200307

main63310-50030-B0iUCF3#200008-200307

main63310-50040-A0iUCF31200008-200307

main63310-50040-A1iUCF31200008-200307

main63310-50040-B0iUCF31200008-200307

main63310-50050-B0iUCF31200008-200307

main63310-50060-B0iUCF31200008-200307

main63310-50070-A0iUCF3#..A,C200307-200608

main63310-50070-A1iUCF3#..A,C200307-200608

main63310-50070-B0iUCF3#..A,C200307-200608

main63310-50080-A0iUCF31200307-200608

main63310-50080-A1iUCF31200307-200608

main63310-50080-B0iUCF31200307-200608

main63310-50090-A0iUCF3#200307-200608

main63310-50090-A1iUCF3#200307-200608

main63310-50090-B0iUCF3#200307-200608

main63310-50100-A0iUCF31200307-200608

main63310-50100-A1iUCF31200307-200608

main63310-50100-B0iUCF31200307-200608

main63310-50110-B0iUCF31200307-200608

main63310-50120-B0iUCF31200307-200608

63310DCLIP, ROOF HEADLINING

main90467-09126×2iUCF3#200008-200307

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iUCF3#200008-200307

4 parts on this diagram · 3 diagrams in section
