RADIATOR GRILLE

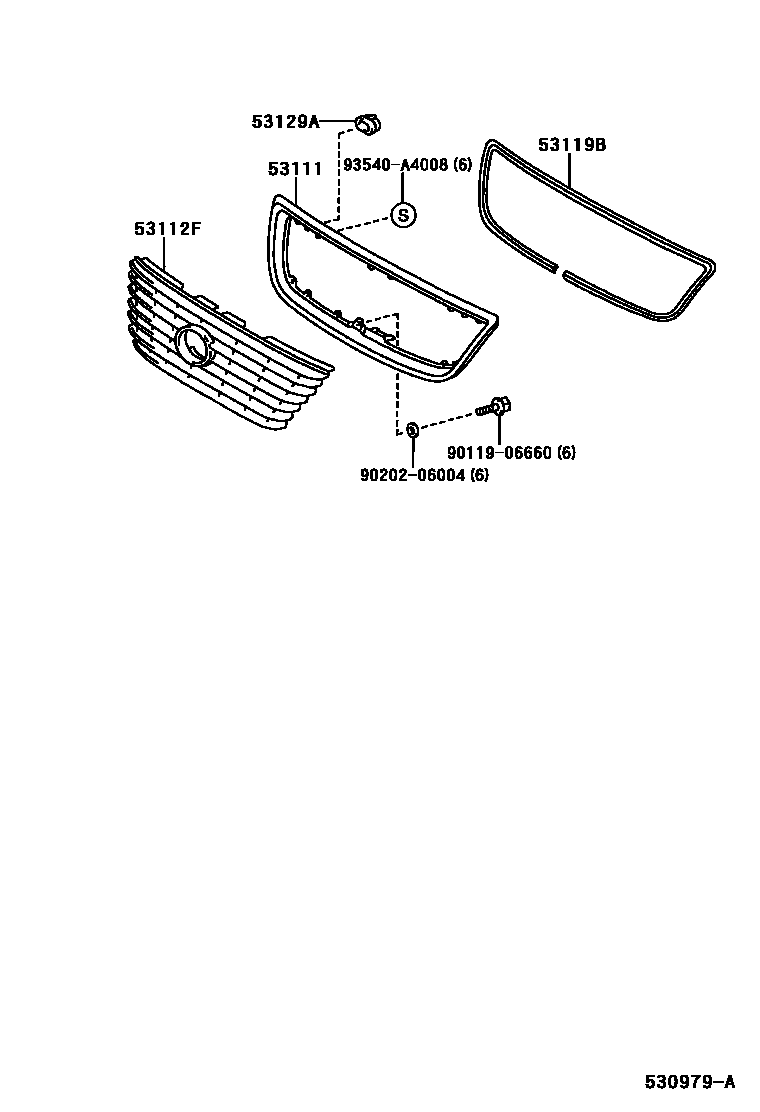

Parts diagram

53111GRILLE, RADIATOR

main53111-50040i200008-200307

main53111-50050i200307

53112FGRILLE, RADIATOR, INSIDE

main53112-50090i200008-200307

main53112-50100i200307

main53112-50110i200307

53119BPROTECTOR, RADIATOR GRILLE

main53119-50040i200008-200307

main53119-50050i200307

53129APIPE, RADIATOR GRILLE

main53129-50010×2i200008-200307

9011906660

main90119-06660

9020206004

main90202-06004

93540A4008

main93540-A4008

7 parts on this diagram · 3 diagrams in section
