FRONT BUMPER & BUMPER STAY

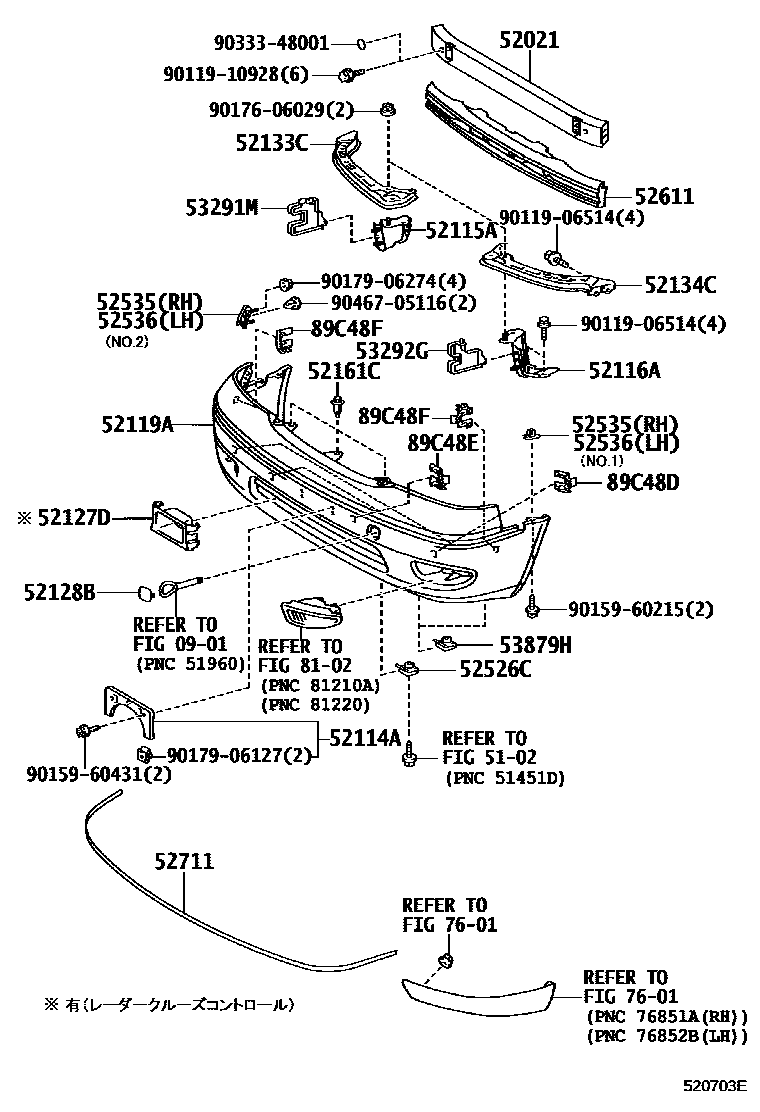

Parts diagram
0901
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52131-50040i200008-200608
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-50040-A0i200008-200307
IVORY PEARL CS.,066
sub52114-50905
sub90179-06127
main52114-50040-A1i200008-200307
*104,WHITE PEARL CS.,TRIM03,04,1#,2#&062
sub52114-50905
sub90179-06127
main52114-50040-B0i200008-200307
*106,SILVER ME.,062
sub52114-50905
sub90179-06127
main52114-50040-B1i200008-200307
SILVER ME.,1C0
sub52114-50905
sub90179-06127
main52114-50040-C0i200008-200307
BLACK,202
sub52114-50905
sub90179-06127
main52114-50040-D0i200008-200307
BORDEAUX MC.,3P2
sub52114-50905
sub90179-06127
main52114-50040-D1i200008-200107
ROSE M.M.,3P4
sub52114-50905
sub90179-06127
main52114-50040-G0i200008-200307
GREEN M.M.,6S5
sub52114-50905
sub90179-06127
main52114-50040-G1i200008-200307
DARK GREEN M.M.,6S6
sub52114-50905
sub90179-06127
main52114-50040-J0i200008-200307
DARK BLUE MC.,8P8
sub52114-50905
sub90179-06127
main52114-50040-J1i200107-200307
LT. BLUE M.M.,8P7
sub52114-50905
sub90179-06127
main52114-50070-A0i200307-200608
*104,WHITE PEARL CS.,062
main52114-50070-A1i200307-200608
SILKY WHITE PEARL CS,072
main52114-50070-B1i200307-200608
DK.GRAY MC.,1E0
main52114-50070-B2i200307-200608
PREMIUM SILVER,1F2
main52114-50070-C0i200307-200608
BLACK,202
main52114-50070-D0i200307-200608
BORDEAUX MC.,3P2
main52114-50070-E1i200307-200608
GRAYISH BROWN M.M.,4S1
main52114-50070-G0i200307-200608
OLIVE M.M.,6T7
main52114-50070-J0i200307-200608
DARK BLUE MC.,8P8
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-50020i200008-200307
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-50020i200008-200307
52119ACOVER, FRONT BUMPER
main52119-50280-A1i200008-200307
IVORY PEARL CS.,066
sub52119-5A946
main52119-50280-A2i200008-200307
WHITE PEARL CS.,062
sub52119-5A946
main52119-50280-B1i200008-200307
SILVER ME.,1C0
sub52119-5A946
main52119-50280-C0i200008-200307
BLACK,202
sub52119-5A946
main52119-50280-D0i200008-200307
BORDEAUX MC.,3P2
sub52119-5A946
main52119-50280-D1i200008-200107
ROSE M.M.,3P4
sub52119-5A946
main52119-50280-G0i200008-200307
GREEN M.M.,6S5
sub52119-5A946
main52119-50280-G1i200008-200307
DARK GREEN M.M.,6S6
sub52119-5A946
main52119-50280-J0i200008-200307
DARK BLUE MC.,8P8
sub52119-5A946
main52119-50280-J1i200107-200307
LT. BLUE M.M.,8P7
sub52119-5A946
main52119-50290-A1i200008-200307
sub52119-5A943
main52119-50290-A2i200008-200307
sub52119-5A943
main52119-50290-B1i200008-200307
sub52119-5A943
main52119-50290-C0i200008-200307
sub52119-5A943
main52119-50290-D0i200008-200307
sub52119-5A943
main52119-50290-D1i200008-200107
sub52119-5A943
main52119-50290-G0i200008-200307
sub52119-5A943
main52119-50290-G1i200008-200307
sub52119-5A943
main52119-50290-J0i200008-200307
sub52119-5A943
main52119-50290-J1i200107-200307
sub52119-5A943
main52119-50300-A1i200008-200307
sub52119-5A944
main52119-50300-A2i200008-200307
sub52119-5A944
main52119-50300-B1i200008-200307
sub52119-5A944
main52119-50300-C0i200008-200307
sub52119-5A944
main52119-50300-D0i200008-200307
sub52119-5A944
main52119-50300-D1i200008-200107
sub52119-5A944
main52119-50300-G0i200008-200307
sub52119-5A944
main52119-50300-G1i200008-200307
sub52119-5A944
main52119-50300-J0i200008-200307
sub52119-5A944
main52119-50300-J1i200107-200307
sub52119-5A944
main52119-50310-A1i200008-200307
sub52119-5A945
main52119-50310-A2i200008-200307
sub52119-5A945
main52119-50310-B1i200008-200307
sub52119-5A945
main52119-50310-C0i200008-200307
sub52119-5A945
main52119-50310-D0i200008-200307
sub52119-5A945
main52119-50310-D1i200008-200107
sub52119-5A945
main52119-50310-G0i200008-200307
sub52119-5A945
main52119-50310-G1i200008-200307
sub52119-5A945
main52119-50310-J0i200008-200307
sub52119-5A945
main52119-50310-J1i200107-200307
sub52119-5A945
main52119-50570-A0i200307-200608
sub52119-50956
main52119-50570-A1i200307-200608
sub52119-50956
main52119-50570-B0i200307-200608
sub52119-50956
main52119-50570-B1i200307-200608
sub52119-50956
main52119-50570-C0i200307-200608
sub52119-50956
main52119-50570-D0i200307-200608
sub52119-50956
main52119-50570-E1i200307-200608
sub52119-50956
main52119-50570-G0i200307-200608
sub52119-50956
main52119-50570-J0i200307-200608
sub52119-50956
main52119-50580-A0i200307-200608
sub52119-50957
main52119-50580-A1i200307-200608
sub52119-50957
main52119-50580-B0i200307-200608
sub52119-50957
main52119-50580-B1i200307-200608
sub52119-50957
main52119-50580-C0i200307-200608
sub52119-50957
main52119-50580-D0i200307-200608
sub52119-50957
main52119-50580-E1i200307-200608
sub52119-50957
main52119-50580-G0i200307-200608
sub52119-50957
main52119-50580-J0i200307-200608
sub52119-50957
main52119-50590-A0i200307-200608
sub52119-50958
main52119-50590-A1i200307-200608
sub52119-50958
main52119-50590-B0i200307-200608
sub52119-50958
main52119-50590-B1i200307-200608
sub52119-50958
main52119-50590-C0i200307-200608
sub52119-50958
main52119-50590-D0i200307-200608
sub52119-50958
main52119-50590-E0i200307-200608
sub52119-50958
main52119-50590-G0i200307-200608
sub52119-50958
main52119-50590-J0i200307-200608
sub52119-50958
main52119-50600-A0i200307-200608
sub52119-50959
main52119-50600-A1i200307-200608
sub52119-50959
main52119-50600-B0i200307-200608
sub52119-50959
main52119-50600-B1i200307-200608
sub52119-50959
main52119-50600-C0i200307-200608
sub52119-50959
main52119-50600-D0i200307-200608
sub52119-50959
main52119-50600-E0i200307-200608
sub52119-50959
main52119-50600-G0i200307-200608
sub52119-50959
main52119-50600-J0i200307-200608
sub52119-50959
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-50030i200008-200307
main52127-50050i200307
52128BCOVER, FRONT BUMPER HOLE, LH
main52128-50020-A0i200008-200307
IVORY PEARL CS.,066
sub52128-50905
main52128-50020-A1i200008-200307
*104,WHITE PEARL CS.,062
sub52128-50905
main52128-50020-B0i200008-200307
*106,SILVER ME.,062
sub52128-50905
main52128-50020-B1i200008-200307
SILVER ME.,1C0
sub52128-50905
main52128-50020-C0i200008-200307
BLACK,202
sub52128-50905
main52128-50020-D0i200008-200307
BORDEAUX MC.,3P2
sub52128-50905
main52128-50020-D1i200008-200107
ROSE M.M.,3P4
sub52128-50905
main52128-50020-G0i200008-200307
GREEN M.M.,6S5
sub52128-50905
main52128-50020-G1i200008-200307
DARK GREEN M.M.,6S6
sub52128-50905
main52128-50020-J0i200008-200307
DARK BLUE MC.,8P8
sub52128-50905
main52128-50020-J1i200107-200307
LT. BLUE M.M.,8P7
sub52128-50905
main52128-50030-A0i200307-200608
*104,WHITE PEARL CS.,062
sub52128-50906
main52128-50030-A1i200307-200608
SILKY WHITE PEARL CS,072
sub52128-50906
main52128-50030-B1i200307-200608
DK.GRAY MC.,1E0
sub52128-50906
main52128-50030-B2i200307-200608
PREMIUM SILVER,1F2
sub52128-50906
main52128-50030-C0i200307-200608
BLACK,202
sub52128-50906
main52128-50030-D0i200307-200608
BORDEAUX MC.,3P2
sub52128-50906
main52128-50030-E1i200307-200608
GRAYISH BROWN M.M.,4S1
sub52128-50906
main52128-50030-G0i200307-200608
OLIVE M.M.,6T7
sub52128-50906
main52128-50030-J0i200307-200608
DARK BLUE MC.,8P8
sub52128-50906
52133CREINFORCEMENT, FRONT BUMPER BAR, RH
main52133-50010i200008-200307
main52133-50030i200307-200608
52134CREINFORCEMENT, FRONT BUMPER BAR, LH
main52134-50010i200008-200307
main52134-50030i200307-200608
52161CPIECE, FRONT BUMPER
main52161-16010i200008-200307
52526CRETAINER, FRONT BUMPER, LOWER
main52526-53020i200512-200608
main90179-05060i200008-200511
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-30150i200008-200307
main52535-50040i200008-200307
main52535-50050i200307
main52535-50060i200307
52536RETAINER, FRONT BUMPER SIDE, LH
main52535-30150i200008-200307
main52535-50060i200307
main52536-50040i200008-200307
main52536-50050i200307
52611ABSORBER, FRONT BUMPER ENERGY
main52611-50040i200008-200307
main52611-50050i200307
52711MOULDING, FRONT BUMPER
main52711-50040i200008-200307
sub52751-50030
main52711-50050i200307
sub52751-50030
53291MSEAL, RADIATOR SUPPORT TO FRAME, RH
main53291-50040i200008-200309
53292GSEAL, RADIATOR SUPPORT TO FRAME, LH
main53292-50040i200008-200309
53879HRETAINER, FRONT FENDER LINER
main53879-17020i200008-200307
main53879-17020i200307
main53879-50040i200402
main53879-58010i200307-200401
7601
8102
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-50010i200008-200608
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
main89348-50010i200008-200608
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
main89348-50010i200008-200608
9011906514
main90119-06514
9011910928
main90119-10928
9015960215
main90159-60215
9015960431
main90159-60431
9017606029
main90176-06029
9017906127
main90179-06127
9017906274
main90179-06274
9033348001
main90333-48001
9046705116
main90467-05116

34 parts on this diagram · 2 diagrams in section
