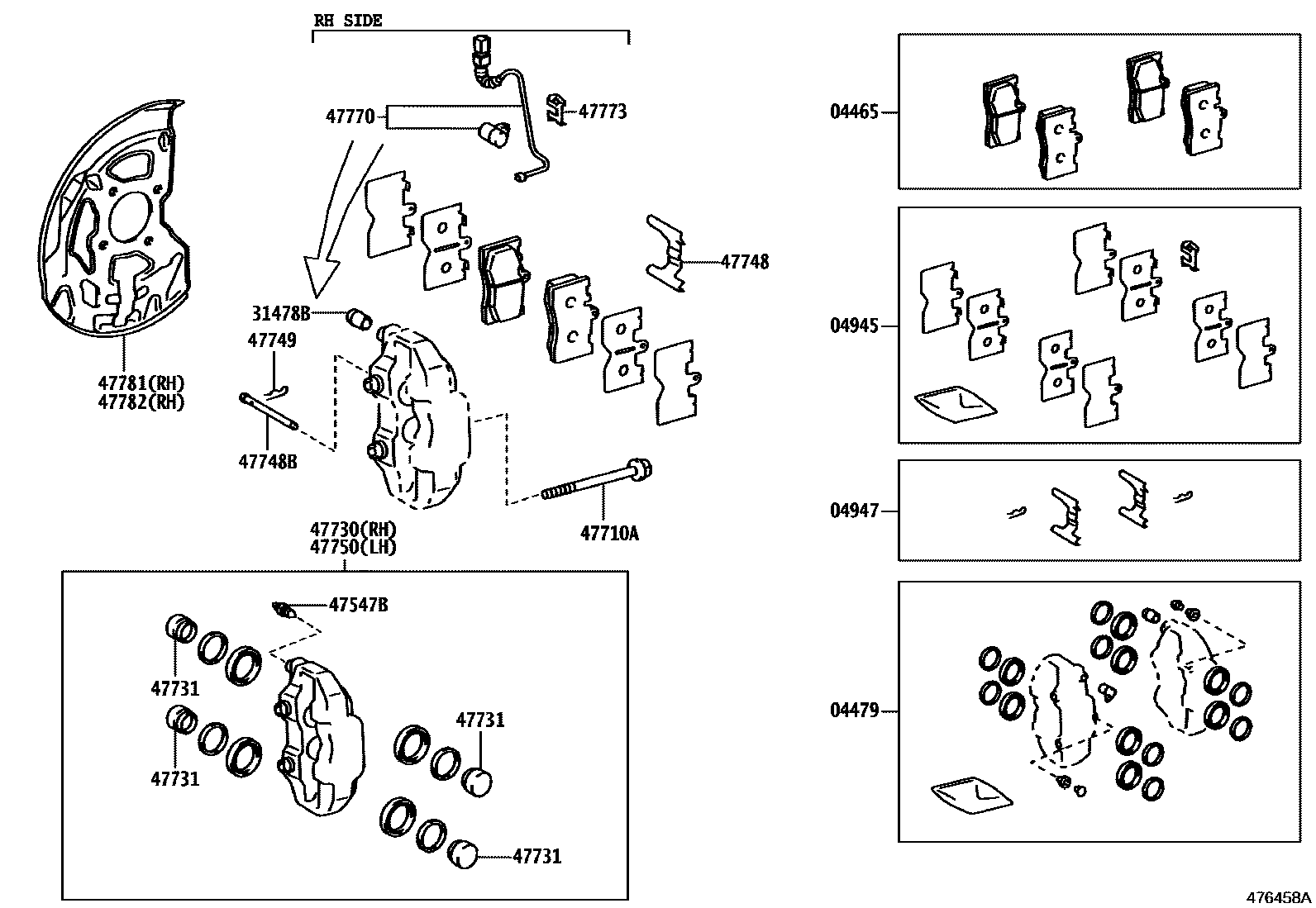

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-50170iUCF3#200008-200107

main04465-50171iUCF3#200107-200307

sub04465-50240

main04465-50250iUCF3#200307-200608

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50130iUCF3#200008-200307

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50030iUCF3#200008-200307

main04945-50060iUCF3#200307

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50090iUCF3#200008-200307

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iUCF3#200008-200307

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iUCF3#200008-200307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14151×4iUCF3#200008-200307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50150iUCF3#200008-200301

main47730-50151iUCF3#200301-200307

47731PISTON, FRONT DISC BRAKE

main47731-50070×8iUCF3#200008-200307

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-50020×2iUCF3#200008-200307

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020×2iUCF3#200008-200307

47749CLIP, PIN HOLD

main47749-50030×2iUCF3#200008-200307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50120iUCF3#200008-200301

main47750-50121iUCF3#200301-200307

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50050iUCF3#200008-200307

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iUCF3#200008-200307

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50040iUCF3#200008-200307

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50040iUCF3#200008-200307

17 parts on this diagram · 1 diagram in section
