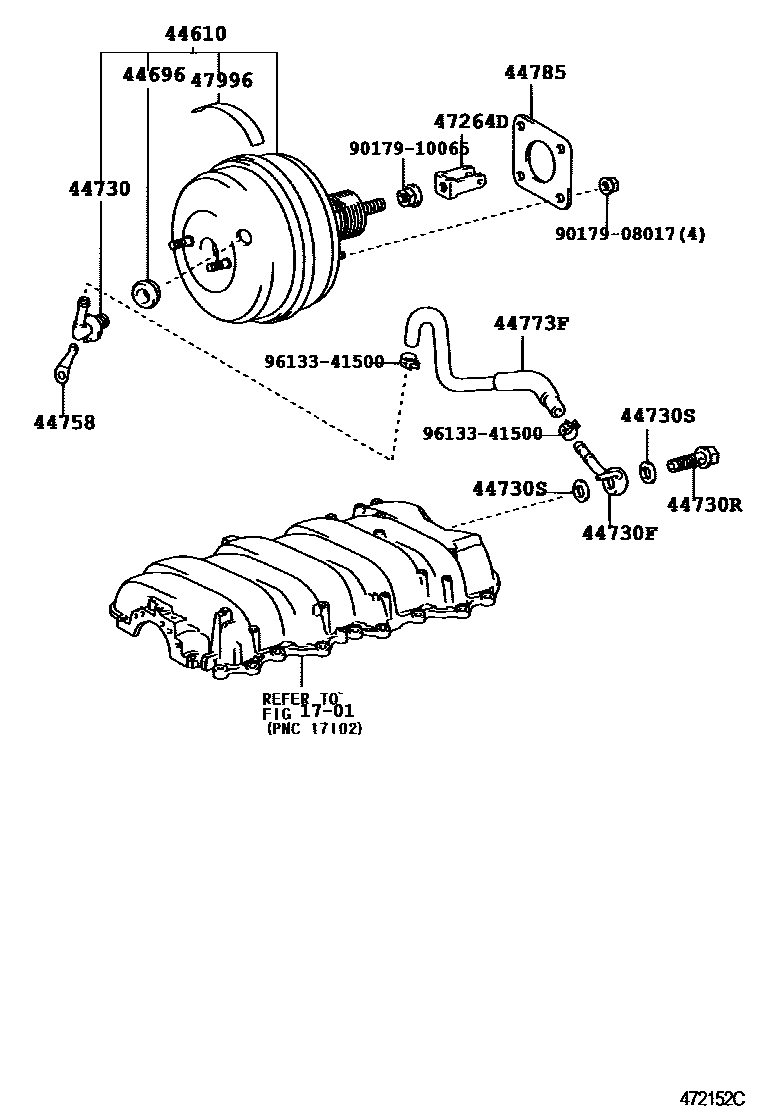

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-50300iUCF3#200008-200307

main44610-50380iUCF3#200307-200608

44696GROMMET, CHECK VALVE

main90480-24439iUCF3#200008-200307

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iUCF3#200008-200211

main44730-14050iUCF3#200211-200307

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09190iUCF3#200008-200307

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iUCF3#200008-200307

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005×2iUCF3#200008-200307

44758BRACKET, VACUUM CHECK VALVE

main44758-14150iUCF3#200008-200307

44773FHOSE, UNION TO CHECK VALVE

main44773-50050iUCF3#200008-200307

44785GASKET, BRAKE BOOSTER

main44785-30040iUCF3#200008-200307

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iUCF3#200008-200307

47996LABEL, BRAKE BLEED NOTICE

main47996-50050iUCF3#200008-200307

9017908017

main90179-08017

9017910065

main90179-10065

9613341500

main96133-41500

15 parts on this diagram · 1 diagram in section
