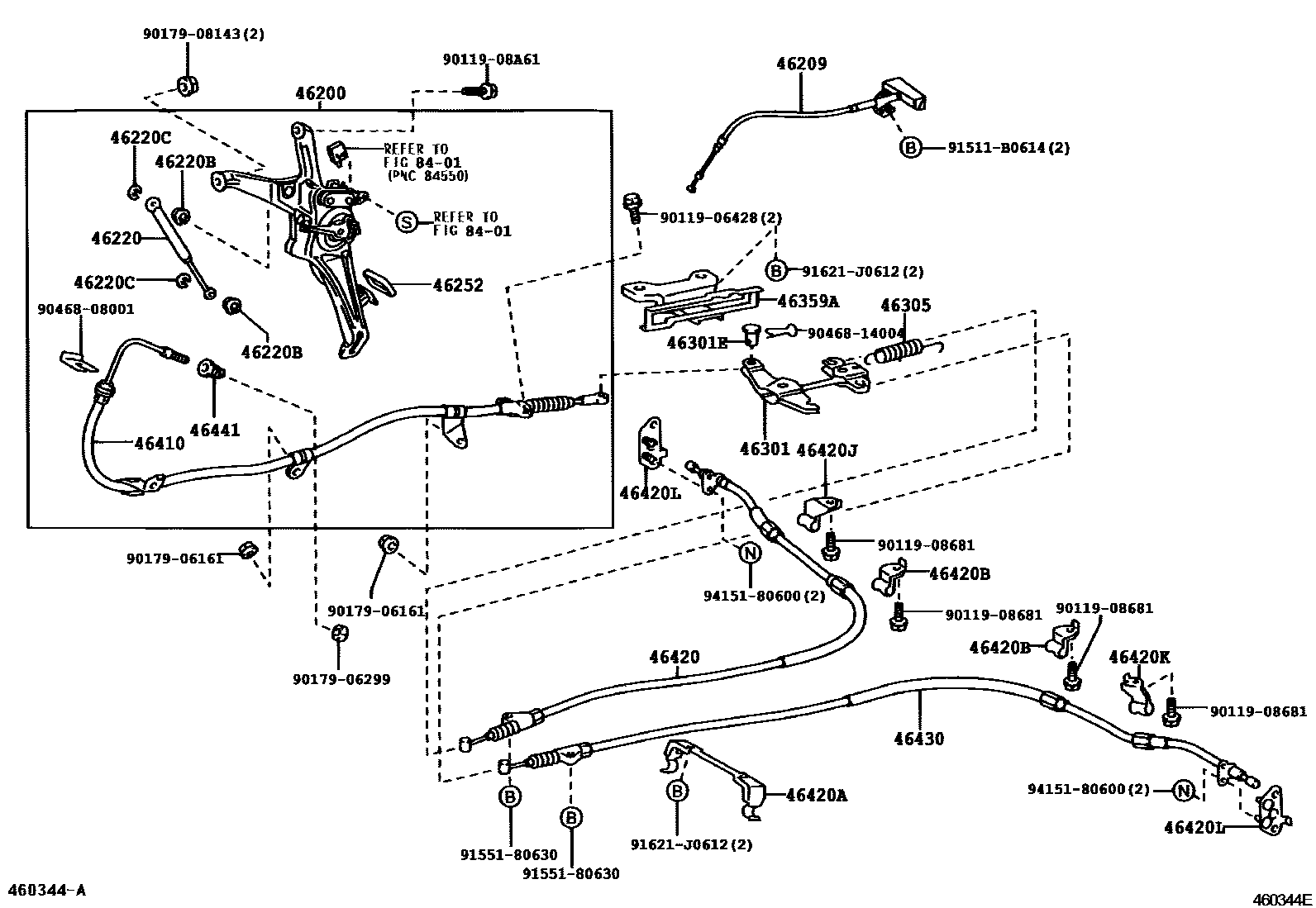

PARKING BRAKE & CABLE
46200PEDAL ASSY, PARKING BRAKE CONTROL
46209CABLE SUB-ASSY, PARKING BRAKE RELEASE
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24
BLACK,TRIM2#
46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220BBUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46220CRING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46252PAD, PARKING PEDAL
46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)
46305SPRING, PARKING BRAKE RETURN W/DAMPER
46359ABRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT
46410CABLE ASSY, PARKING BRAKE, NO.1
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)
46441NUT, WIRE ADJUSTING, NO.1
8401
9011906428
main90119-06428
9011908681
main90119-08681
9011908A61
main90119-08A61
9017906161
main90179-06161
9017906299
main90179-06299
9017908143
main90179-08143
9046808001
main90468-08001
9046814004
main90468-14004
91511B0614
main91511-B0614
9155180630
main91551-80630
91621J0612
main91621-J0612
9415180600
main94151-80600
32 parts on this diagram · 2 diagrams in section
