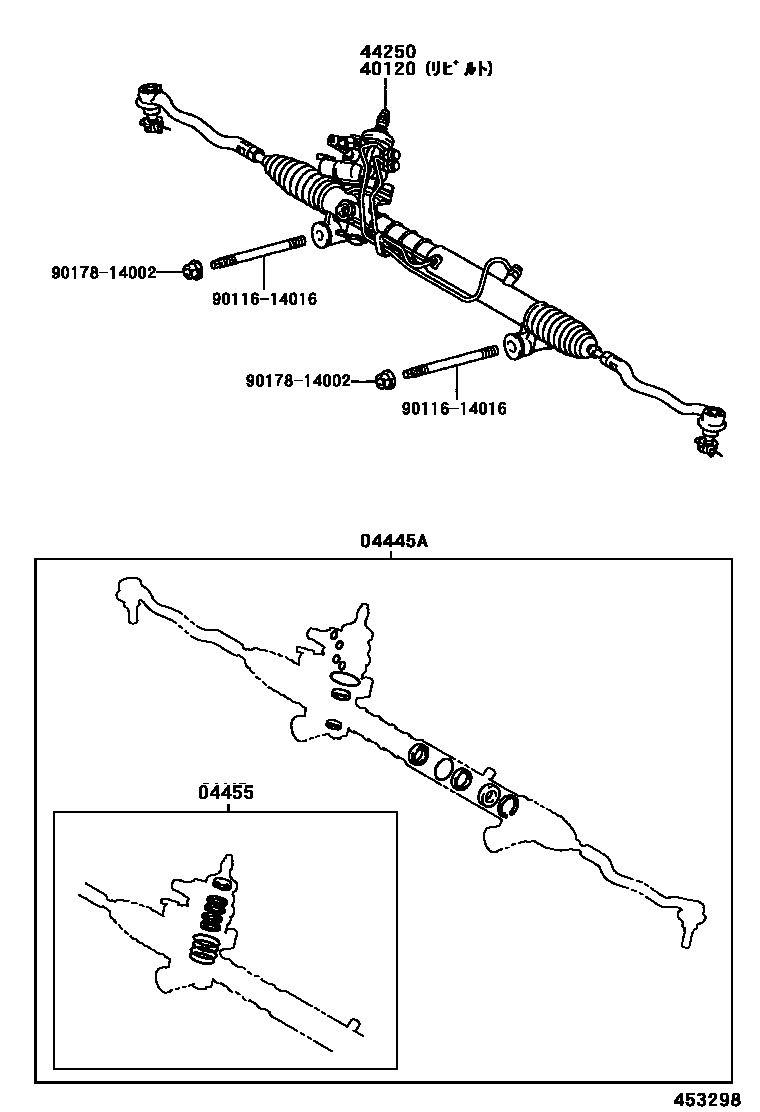

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-50040iUCF3#200008-200307

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-50040iUCF3#200008-200307

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-50171iUCF3#200102-200307

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-50170iUCF3#200008-200102

main44200-50171iUCF3#200102-200307

main44200-50190iUCF3#200307

9011614016

main90116-14016

9017814002

main90178-14002

6 parts on this diagram · 3 diagrams in section
