STEERING WHEEL

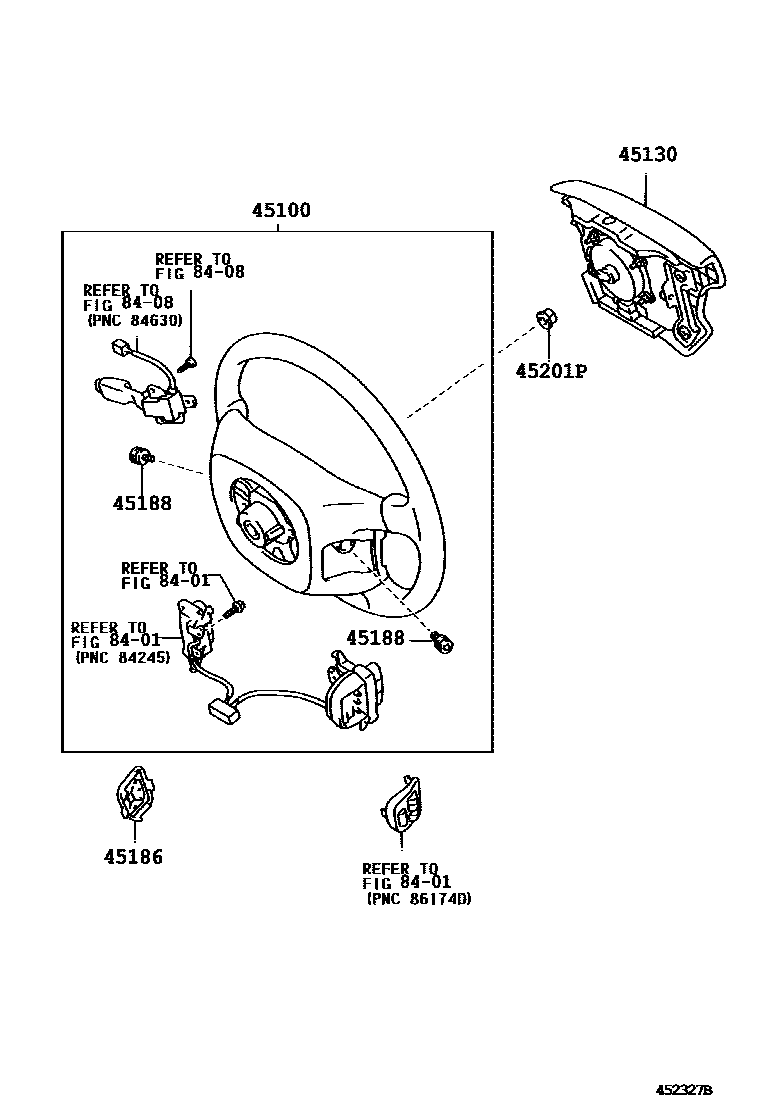

Parts diagram

45100WHEEL ASSY, STEERING

main45100-50150-B0i200008-200107

main45100-50150-C0i200008-200107

main45100-50150-E0i200008-200107

main45100-50150-E1i200008-200107

main45100-50160-B0i200008-200107

main45100-50160-C0i200008-200107

main45100-50160-E0i200008-200107

main45100-50160-E1i200008-200107

main45100-50170-B0i200008-200107

main45100-50170-C0i200008-200107

main45100-50170-E0i200008-200107

main45100-50170-E1i200008-200107

main45100-50180-B0i200008-200107

main45100-50180-C1i200008-200107

main45100-50180-E0i200008-200107

main45100-50180-E2i200008-200107

main45100-50190-B0i200107-200307

main45100-50190-B2i200307-200404

main45100-50190-B3i200404-200408

main45100-50190-C0i200404-200408

main45100-50190-C2i200307-200404

main45100-50190-E0i200404-200408

main45100-50190-E1i200107-200307

main45100-50190-E4i200307-200404

main45100-50190-E5i200307-200404

main45100-50191-B3i200409-200608

main45100-50191-C0i200409-200608

main45100-50191-E0i200409-200608

main45100-50191-E1i200409-200608

main45100-50200-B0i200107-200307

main45100-50200-B2i200307-200404

main45100-50200-B3i200404-200408

main45100-50200-C0i200404-200408

main45100-50200-C3i200307-200404

main45100-50200-E0i200404-200408

main45100-50200-E1i200107-200307

main45100-50200-E5i200307-200404

main45100-50200-E6i200307-200404

main45100-50201-B3i200409-200608

main45100-50201-C0i200409-200608

main45100-50201-E0i200409-200608

main45100-50201-E1i200409-200608

main45100-50210-B0i200107-200307

main45100-50210-B1i200307-200404

main45100-50210-B2i200404-200408

main45100-50210-C0i200107-200307

main45100-50210-C1i200404-200408

main45100-50210-C2i200307-200404

main45100-50210-E0i200107-200307

main45100-50210-E1i200404-200408

main45100-50210-E2i200404-200408

main45100-50210-E4i200307-200404

main45100-50210-E5i200307-200404

main45100-50211-B2i200409-200608

main45100-50211-C1i200409-200608

main45100-50211-E1i200409-200608

main45100-50211-E2i200409-200608

main45100-50220-B0i200107-200307

main45100-50220-B1i200307-200404

main45100-50220-B2i200404-200408

main45100-50220-C1i200107-200307

main45100-50220-C2i200404-200408

main45100-50220-C3i200307-200404

main45100-50220-E0i200107-200307

main45100-50220-E2i200404-200408

main45100-50220-E3i200404-200408

main45100-50220-E4i200307-200404

main45100-50220-E5i200307-200404

main45100-50221-B2i200409-200608

main45100-50221-C2i200409-200608

main45100-50221-E2i200409-200608

main45100-50221-E3i200409-200608

45130BUTTON ASSY, HORN

main45130-50170-B0i200008-200107

DK.CHARCOAL,TRIM1#

main45130-50170-C0i200008-200107

BLACK,TRIM2#

main45130-50170-E0i200008-200107

SANDAL WOOD,TRIM04

main45130-50170-E1i200008-200107

CLOVEBROWN,TRIM03

main45130-50190-B0i200107-200307

DK.CHARCOAL,TRIM1#

main45130-50190-C0i200107-200307

BLACK,TRIM2#

main45130-50190-E0i200107-200307

SANDAL WOOD,TRIM04

main45130-50190-E1i200107-200307

CLOVEBROWN,TRIM03

main45130-50210-B0i200307-200608

MD.GRAY,TRIM1#

main45130-50210-C0i200307-200608

BLACK,TRIM2#; BLACK,TRIM21,24

main45130-50210-E0i200307-200608

SANDAL WOOD,TRIM07

main45130-50210-E1i200307-200608

CLOVEBROWN,TRIM00

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-50050-B0i200008-200307

DK.CHARCOAL,TRIM1#

main45186-50050-B1i200307-200608

MD.GRAY,TRIM1#

main45186-50050-C0i200307-200608

BLACK,TRIM2#; BLACK,TRIM21,24

main45186-50050-E0i200008-200307

SANDAL WOOD,TRIM04

main45186-50050-E1i200307-200608

CLOVEBROWN,TRIM00

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200307

45201PNUT, STEERING WHEEL SET

main90179-12071i200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 1 diagram in section
