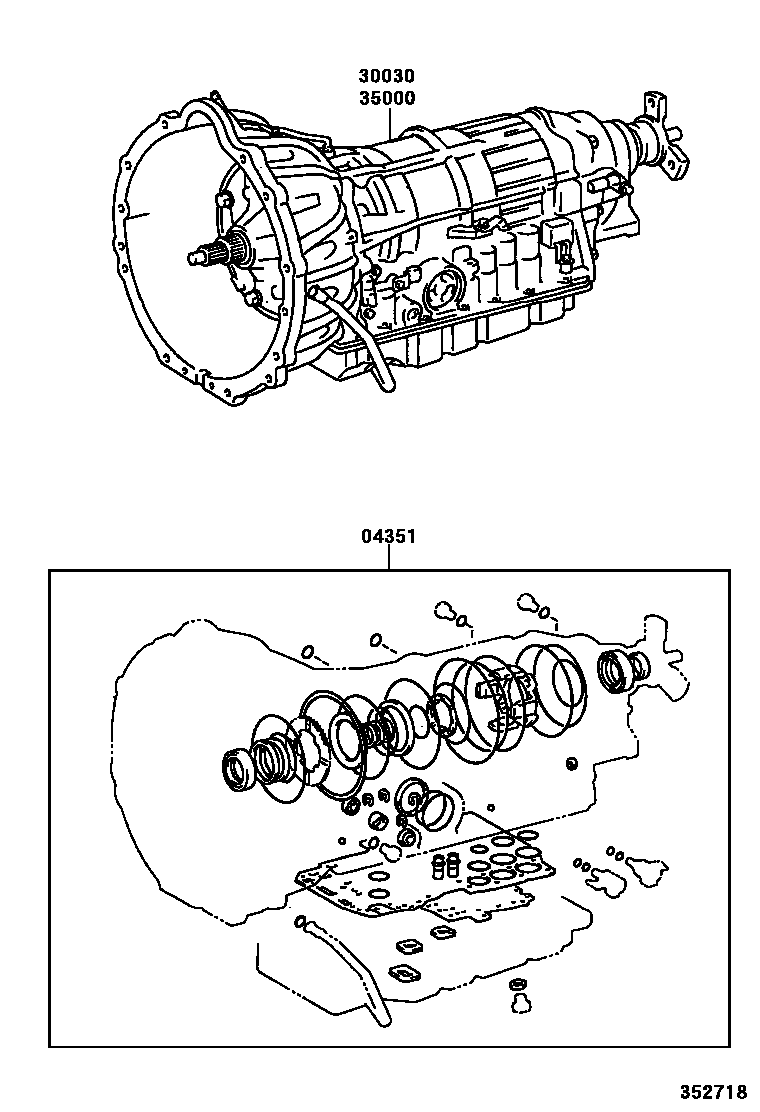

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30490i200008-200210

main04351-30491i200210-200307

main04351-30590i200307

30030TRANSMISSION ASSY, REBUILT

main30030-50130i200008-200307

main30030-50150i200307

35000TRANSMISSION ASSY, AUTOMATIC

main35000-50130i200008-200307

main35000-50150i200307

3 parts on this diagram · 2 diagrams in section
