MANIFOLD

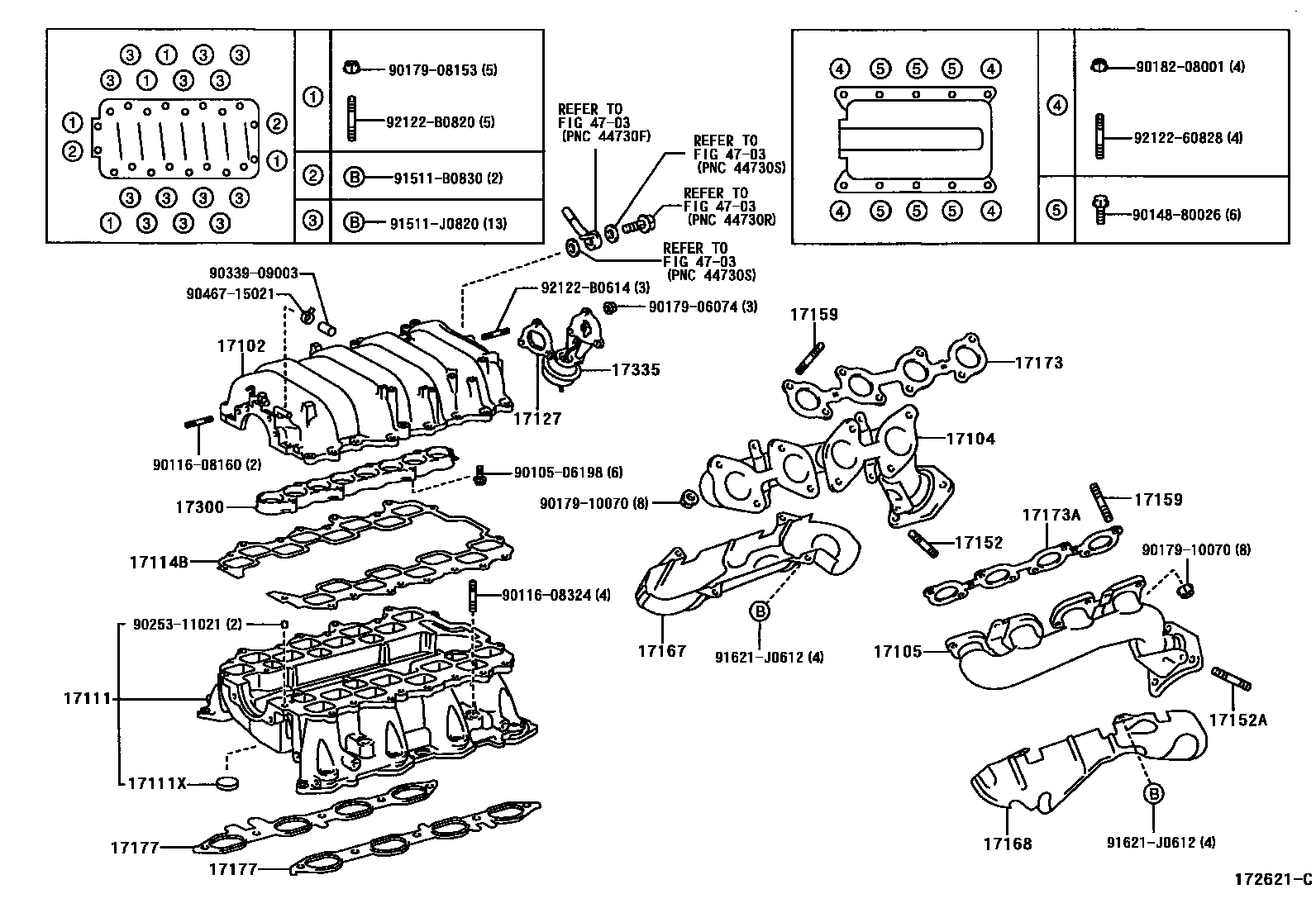

Parts diagram

17102MANIFOLD SUB-ASSY, INTAKE, UPPER

main17102-50012i200008-200307

main17102-50013i200307-200406

main17102-50014i200406

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-50160i200008-200307

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-50160i200008-200307

17111MANIFOLD, INTAKE

main17101-50010i200008-200307

17111XPLUG, TIGHT NO.1(FOR INTAKE MANIFOLD)

main96411-42000i200008-200307

17114BGASKET, INTAKE FLANGE

main17116-50010i200008-200307

17127GASKET, SURGE TANK COVER

main17127-50010i200008-200307

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90126-10006×3i200008-200307

17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90126-10006×3i200008-200307

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-10015×16i200008-200307

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-50130i200008-200307

main17167-50150i200405

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-50120i200008-200307

main17168-50140i200405

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-50021i200008-200307

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-50021i200008-200307

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50020×2i200008-200307

17300VALVE ASSY, INTAKE AIR CONTROL

main17300-50010i200008-200307

17335ACTUATOR, INTAKE AIR CONTROL VALVE

main17335-50010i200008-200307

main17335-50011i200501

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9010506198

main90105-06198

9011608160

main90116-08160

9011608324

main90116-08324

9014880026

main90148-80026

9017906074

main90179-06074

9017908153

main90179-08153

9017910070

main90179-10070

9018208001

main90182-08001

9025311021

main90253-11021

9033909003

main90339-09003

9046715021

main90467-15021

91511B0830

main91511-B0830

91511J0820

main91511-J0820

91621J0612

main91621-J0612

9212260828

main92122-60828

92122B0614

main92122-B0614

92122B0820

main92122-B0820
