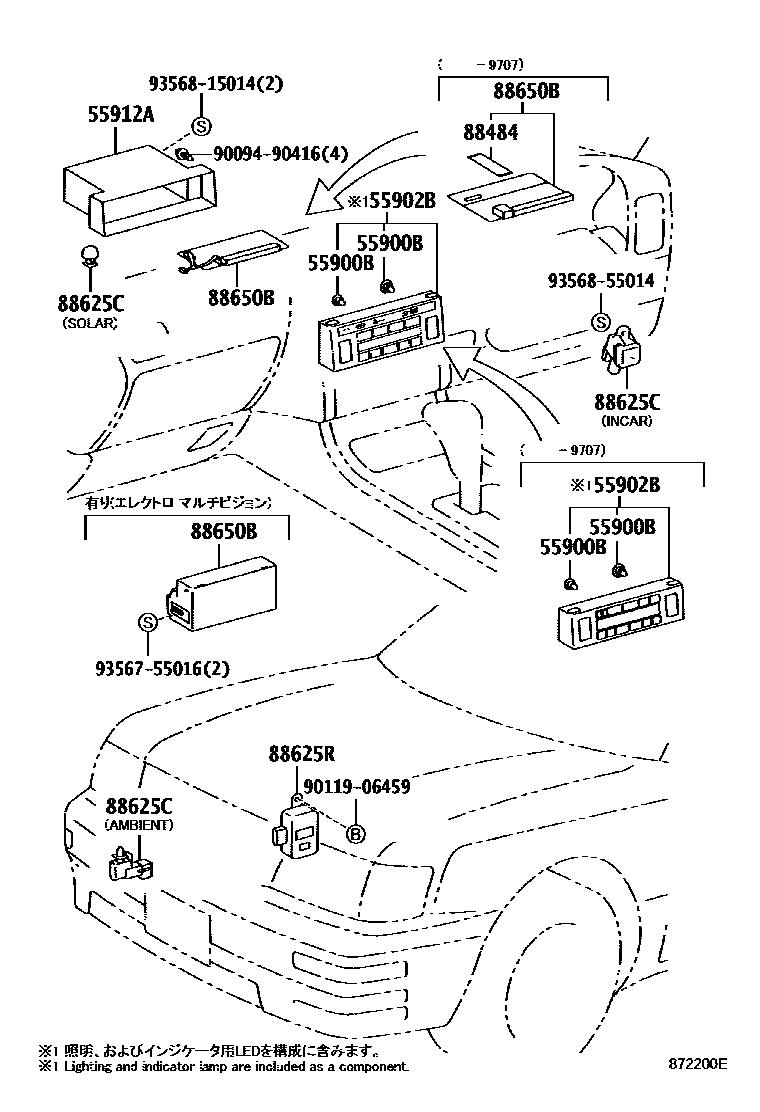

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������� & ��� 0002 1������---���� 0003 1������---��

55900BBULB, AIR CONDITIONER CONTROL

main84999-60450×3iUCF2#199410-199707

main84999-60460×5iUCF2#199410-199707

main90010-03012×5iUCF2#199707

main90010-03013×5iUCF2#199707

55902BCONTROL SUB-ASSY, HEATER

main55902-50010iUCF21199410-199707

main55902-50020iUCF2#199410-199707

main55902-50170iUCF21199707

main55902-50180iUCF2#199707

55912AHOUSING, HEATER CONTROL

main55912-50010iUCF21199410-199707

main55912-50020iUCF2#199410-199707

main55912-50030iUCF2#199707

88484WIRE, COOLER, NO.1

main88484-50010iUCF2#199410-199707

88625CTHERMISTOR, COOLER

main88625-14110iUCF2#199410-199707

AMBIENT

main88625-50110iUCF2#199410-199707

SOLAR

main88625-50120iUCF2#199410

INCAR

main88790-22130iUCF2#199707

AMBIENT

88625RTHERMISTOR, COOLER (SENSOR, SMOG VENTILATION)

main88898-50010iUCF2#199707

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-50040iUCF21199410-199508

main88650-50041iUCF21199508-199602

main88650-50042iUCF21199602-199707

main88650-50050iUCF2#199410-199508

main88650-50051iUCF2#199508-199602

main88650-50052iUCF2#199602-199707

main88650-50110iUCF2#..B,C199410-199508

main88650-50111iUCF2#..B,C199508-199602

main88650-50112iUCF2#..B,C199602-199608

main88650-50113iUCF2#199608-199707

main88650-50310iUCF2#199707

main88650-50320iUCF2#199707-199708

main88650-50321iUCF2#199708-199709

main88650-50322iUCF2#199709-199710

main88650-50323iUCF2#199710

9009490416

main90094-90416

9011906459

main90119-06459

9356755016

main93567-55016

9356815014

main93568-15014

9356855014

main93568-55014

12 parts on this diagram · 3 diagrams in section
