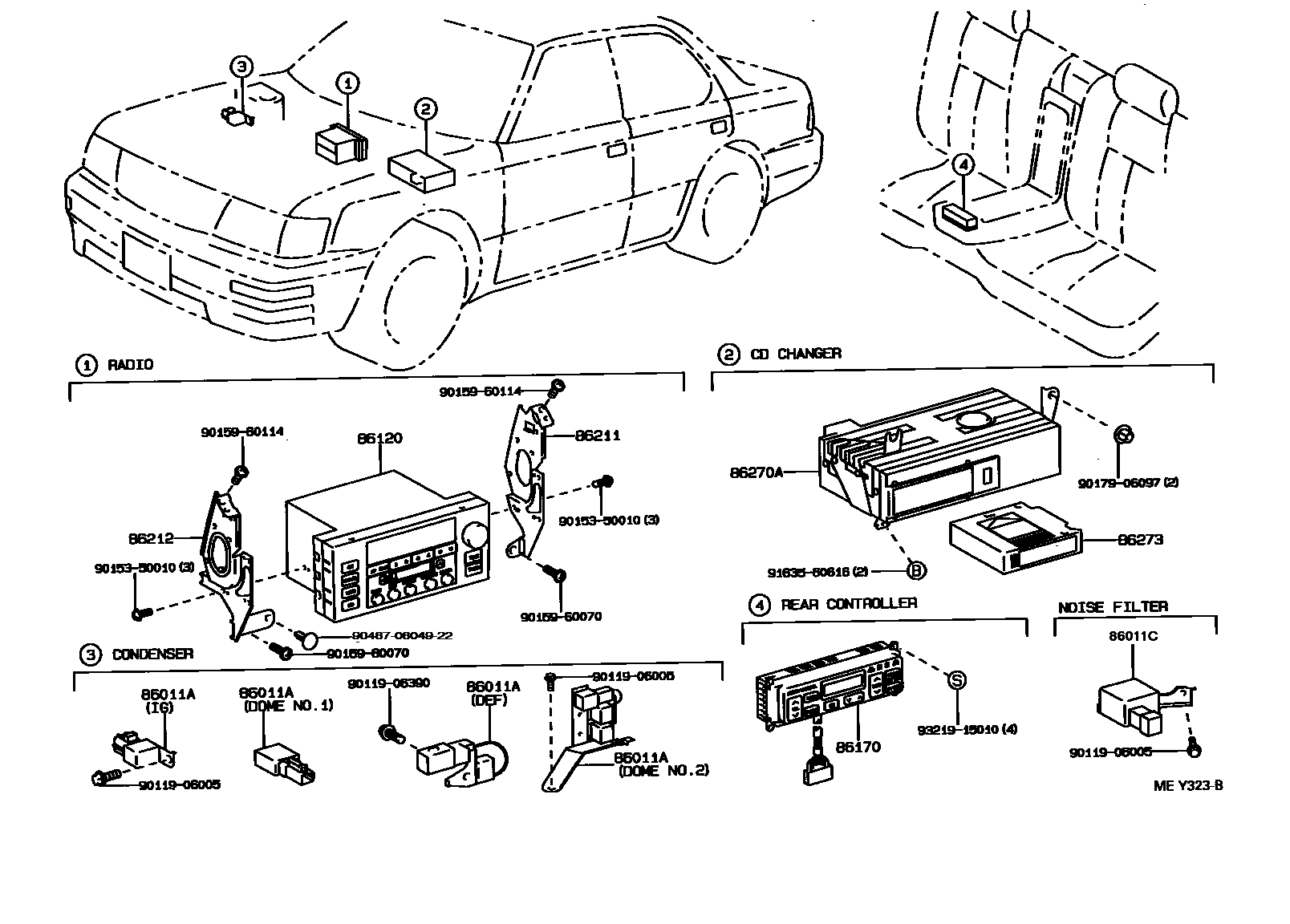

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1REAR CONTROLLER

86011ACONDENSER, RADIO SETTING

main90980-04077iUCF2#199410-199707

IG

main90980-04111iUCF2#199410-199707

DOME LAMP(NO.1)

main90980-04125iUCF2#199707

main90980-04127iUCF2#199707

86011CFILTER, NOISE

main90980-05293iUCF2#199410-199707

main90980-05313iUCF2#199707

86120RECEIVER ASSY, RADIO

main86120-50330iUCF2#199410-199505

main86120-50331iUCF2#199505-199605

main86120-50332iUCF2#199605-199707

main86120-50340iUCF2#..B,C199410-199505

main86120-50341iUCF2#..B,C199505-199608

main86120-50342iUCF2#199608-199707

main86120-50430iUCF20..A199410-199505

2DIN

main86120-50431iUCF20..A199505-199707

2DIN

main86120-50510iUCF20..A199707

main86120-50520iUCF2#..B,C; UCF20..A199707-199808

main86120-50521iUCF2#199808

main86120-50530iUCF2#..B,C; UCF20..A199707

86170SWITCH AND VOLUME ASSY, RADIO

main86170-50050iUCF21199410-199707

main86170-50070iUCF21199707

86211BRACKET, RADIO, NO.1

main86211-50030iUCF2#199410

86212BRACKET, RADIO, NO.2

main86212-50030iUCF2#199410

86270ADISC PLAYER ASSY

main86270-50090iUCF2#199410-199707

main86270-50110iUCF2#..B,C199410-199608

main86270-50111iUCF2#199608-199707

main86270-50120iUCF2#199707

86273MAGAZINE, DISC PLAYER

main86273-50060iUCF2#199410

9011906005

main90119-06005

9011906390

main90119-06390

9015350010

main90153-50010

9015960070

main90159-60070

9015960114

main90159-60114

9017906097

main90179-06097

904670604922

main90467-0604922

9163560616

main91635-60616

9321915010

main93219-15010

17 parts on this diagram · 3 diagrams in section
