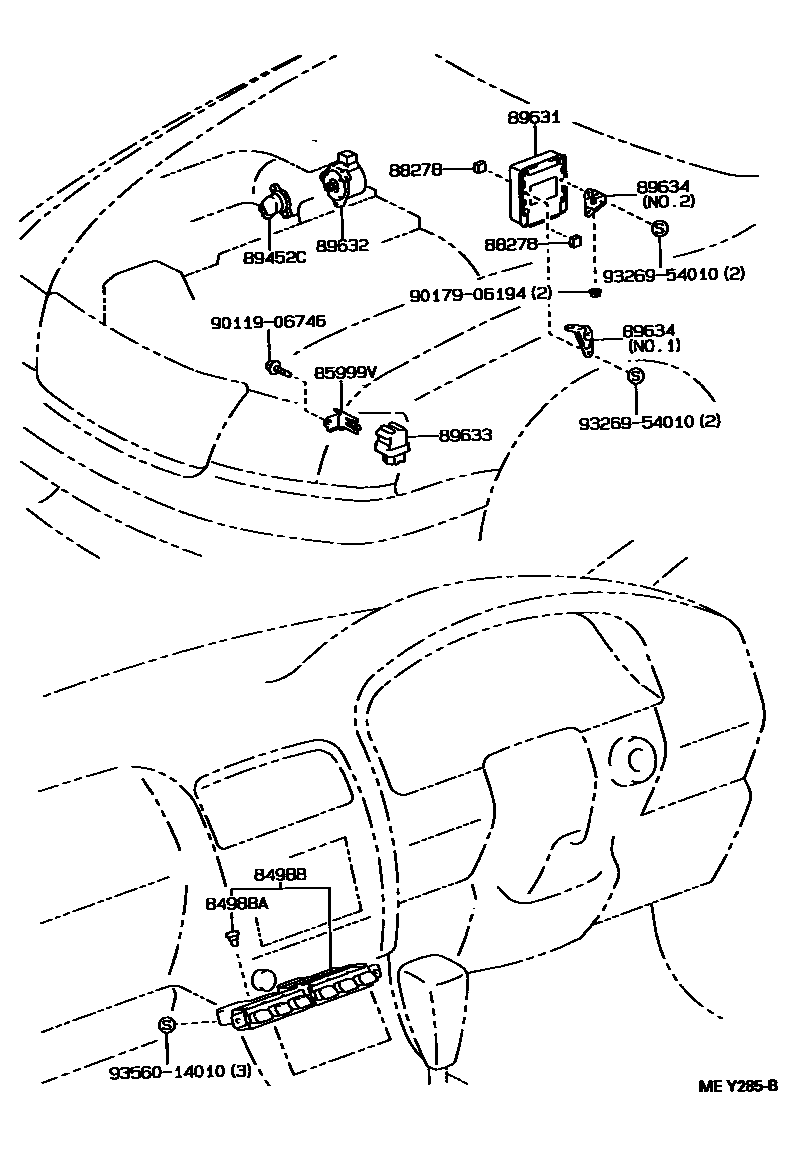

TRACTION CONTROL

0001 1 0002 1

84988SWITCH, TRACTION CONTROL

main84988-50110iUCF2#199410-200008

main84988-50140iUCF21199410-199608

main84988-50141iUCF21199608-200008

main84988-50150iUCF21199410-199608

main84988-50151iUCF21199608-199707

main84988-50160iUCF2#199410-199608

main84988-50161iUCF2#199608-199707

main84988-50170iUCF2#199608-200008

main84988-50180iUCF2#199608-199707

main84988-50190iUCF21199608-200008

main84988-50200iUCF21199608-199707

main84988-50210iUCF21199707-200008

main84988-50220iUCF2#199707-200008

main84988-50230iUCF2#199707-200008

main84988-50240iUCF21199707-200008

84988ABULB, TRACTION CONTROL SWITCH

main84999-10650iUCF2#199410

85999VBRACKET, RELAY

main85999-50170iUCF2#199410-199608

88278CUSHION, SKID CONTROL COMPUTER

main88278-50010×2iUCF2#199410-199707

89452CSENSOR, THROTTLE POSITION

main89452-32060iUCF2#199410-199504

main89452-50020iUCF2#199608-199707

main89452-50040iUCF2#199504-199608

89631COMPUTER, TRACTION CONTROL

main89631-50020iUCF2#199410-199707

89632MOTOR, TRACTION THROTTLE VALVE

main89632-50020iUCF2#199410-199707

89633RELAY, TRACTION CONTROL

main89633-50030iUCF2#199410-199608

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-50050iUCF2#199410-199707

main89634-50060iUCF2#199410-199707

9011906746

main90119-06746

9017906194

main90179-06194

9326954010

main93269-54010

9356014010

main93560-14010

13 parts on this diagram · 2 diagrams in section
