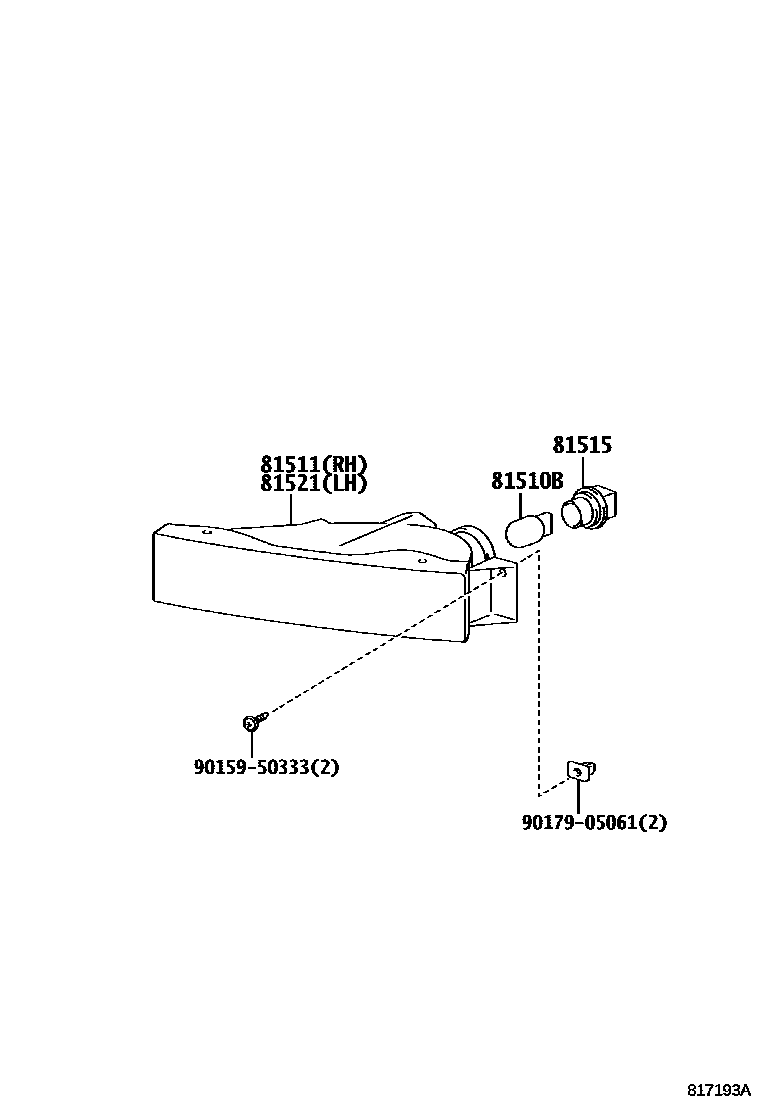

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iUCF2#199410-199707

main90981-13050iUCF2#199707

sub90981-13043

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-50040iUCF2#199410-199707

main81511-50060iUCF2#199707

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main90075-99080iUCF2#199410-199708

main90075-99128iUCF2#199709

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-50040iUCF2#199410-199707

main81521-50060iUCF2#199707

9015950333

main90159-50333

9017905061

main90179-05061

6 parts on this diagram · 2 diagrams in section
