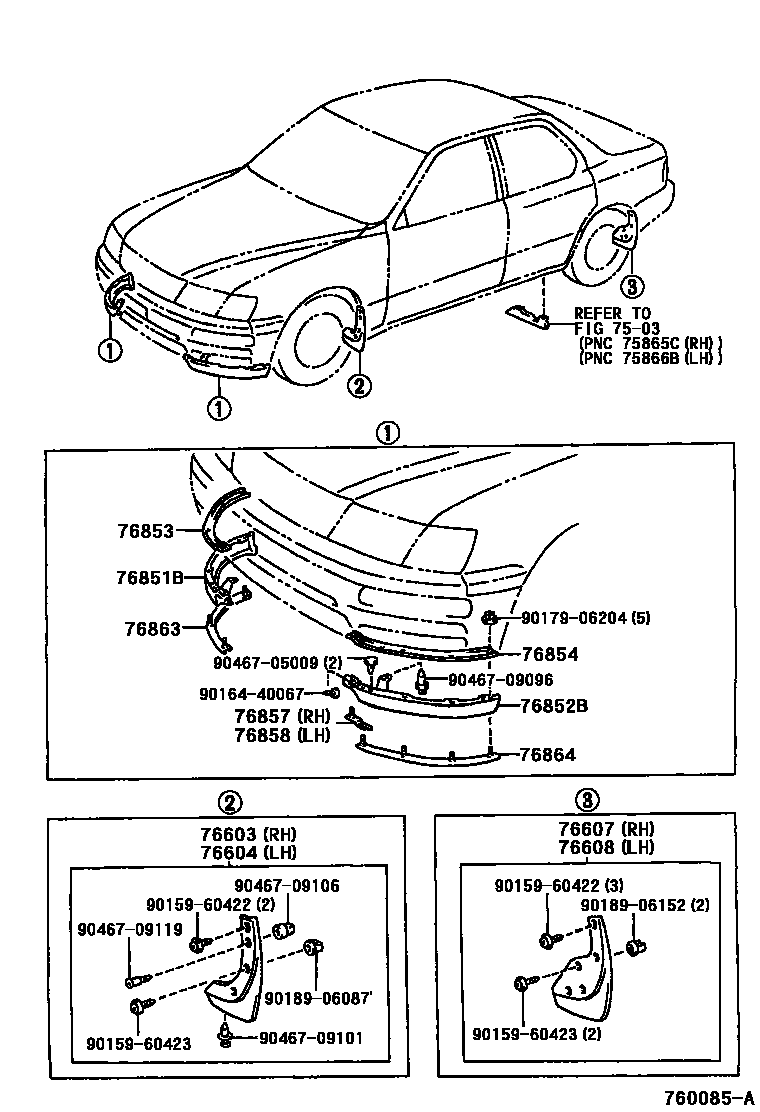

MUDGUARD & SPOILER

7503SIDE MOULDING

→ Go to FIG 75-03

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-50040-A0i199808-200008

DARK GREEN,6Q7

main76621-50040-A1i199905-199908

10TH ANNIVERSARY EDITION *(A),SILVER ME.,K15

main76621-50040-B0i199808-200008

MEDIUM BLUE,8L4

main76621-50040-B2i199905-199908

10TH ANNIVERSARY EDITION *(A),GRAY ME.,KD2

main76621-50040-C0i199808-200008

SILVER M.,051

main76621-50040-C1i199808-199908

ROSE,941

main76621-50040-D0i199808-200008

DK. GRAY M.,202 ,6N9

main76621-50040-G0i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GRAY ME.,KD3

main76621-50040-H0i199808-200008

DARK ROSE RED,3M9

main76621-50040-H1i199808-200008

GRAY ME.,199

main76621-50040-K0i199808-199908

MEDIUM GREEN,6P7

main76621-59035i199410-200008

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-50040-A0i199808-200008

DARK GREEN,6Q7

main76622-50040-A1i199905-199908

10TH ANNIVERSARY EDITION *(A),SILVER ME.,K15

main76622-50040-B0i199808-200008

MEDIUM BLUE,8L4

main76622-50040-B2i199905-199908

10TH ANNIVERSARY EDITION *(A),GRAY ME.,KD2

main76622-50040-C0i199808-200008

SILVER M.,051

main76622-50040-C1i199808-199908

ROSE,941

main76622-50040-D0i199808-200008

DK. GRAY M.,202 ,6N9

main76622-50040-G0i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GRAY ME.,KD3

main76622-50040-H0i199808-200008

DARK ROSE RED,3M9

main76622-50040-H1i199808-200008

GRAY ME.,199

main76622-50040-K0i199808-199908

MEDIUM GREEN,6P7

main76622-59035i199410-200008

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-50040-A0i199808-200008

DARK GREEN,6Q7

main76625-50040-A1i199905-199908

10TH ANNIVERSARY EDITION *(A),SILVER ME.,K15

main76625-50040-B0i199808-200008

MEDIUM BLUE,8L4

main76625-50040-B2i199905-199908

10TH ANNIVERSARY EDITION *(A),GRAY ME.,KD2

main76625-50040-C0i199808-200008

SILVER M.,051

main76625-50040-C1i199808-199908

ROSE,941

main76625-50040-D0i199808-200008

DK. GRAY M.,202 ,6N9

main76625-50040-G0i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GRAY ME.,KD3

main76625-50040-H0i199808-200008

DARK ROSE RED,3M9

main76625-50040-H1i199808-200008

GRAY ME.,199

main76625-50040-K0i199808-199908

MEDIUM GREEN,6P7

main76625-59035i199410-200008

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-50040-A0i199808-200008

DARK GREEN,6Q7

main76626-50040-A1i199905-199908

10TH ANNIVERSARY EDITION *(A),SILVER ME.,K15

main76626-50040-B0i199808-200008

MEDIUM BLUE,8L4

main76626-50040-B2i199905-199908

10TH ANNIVERSARY EDITION *(A),GRAY ME.,KD2

main76626-50040-C0i199808-200008

SILVER M.,051

main76626-50040-C1i199808-199908

ROSE,941

main76626-50040-D0i199808-200008

DK. GRAY M.,202 ,6N9

main76626-50040-G0i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GRAY ME.,KD3

main76626-50040-H0i199808-200008

DARK ROSE RED,3M9

main76626-50040-H1i199808-200008

GRAY ME.,199

main76626-50040-K0i199808-199908

MEDIUM GREEN,6P7

main76626-59035i199410-200008

76851BSPOILER, FRONT, RH

main76851-50050i199410-199707

main76851-50060i199707

76852BSPOILER, FRONT, LH

main76852-50030i199410-199707

main76852-50040i199707

76853RETAINER, FRONT SPOILER, UPPER RH

main76853-50030i199410-199707

main76853-50040i199707

76854RETAINER, FRONT SPOILER, UPPER LH

main76854-50030i199410-199707

main76854-50040i199707

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-50020i199410-199707

main76857-50030i199707

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-50020i199410-199707

main76858-50030i199707

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-50020i199410-199707

main76863-50030i199707

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76864-50020i199410-199707

main76864-50030i199707

9015960422

main90159-60422

9015960423

main90159-60423

9016440067

main90164-40067

9017906204

main90179-06204

9018906087

main90189-06087

9018906152

main90189-06152

9046705009

main90467-05009

9046709096

main90467-09096

9046709101

main90467-09101

9046709106

main90467-09106

9046709119

main90467-09119

24 parts on this diagram · 1 diagram in section
