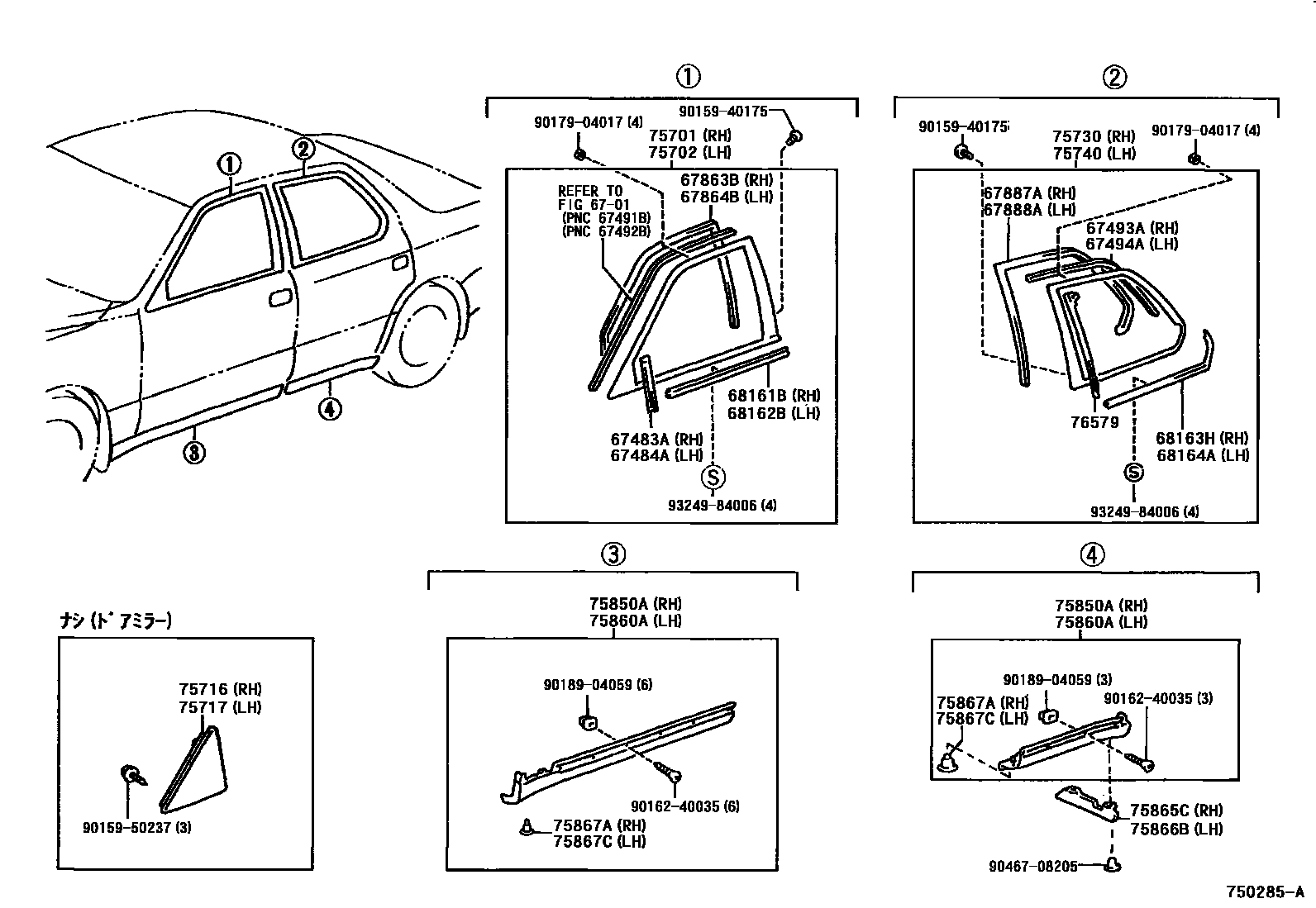

SIDE MOULDING
6701FRONT DOOR PANEL & GLASS
67483ARETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, RH
67484ARETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, LH
67493ARETAINER, DOOR NO.2 WEATHERSTRIP, RH
67494ARETAINER, DOOR NO.2 WEATHERSTRIP, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
75701MOULDING SUB-ASSY, FRONT DOOR BELT, RH
75702MOULDING SUB-ASSY, FRONT DOOR BELT, LH
75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH
75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
SILVER M.,051,FRONT
DK.GRAY M.,202 ,6N9,FRONT
DK.BLUE MC,8L1,FRONT
GRAY ME.,199,FRONT
MEDIUM GRAY ME.,6N0,FRONT
BEIGE ME.,4M9,FRONT
DK.TAUPE ME.,4N1,FRONT
SILVER M.,051,REAR
DK.BLUE MC,8L1,REAR
MEDIUM GRAY ME.,6N0,REAR
BEIGE ME.,4M9,REAR
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
9015940175
main90159-40175
9015950237
main90159-50237
9016240035
main90162-40035
9017904017
main90179-04017
9018904059
main90189-04059
9046708205
main90467-08205
9324984006
main93249-84006
33 parts on this diagram · 2 diagrams in section
