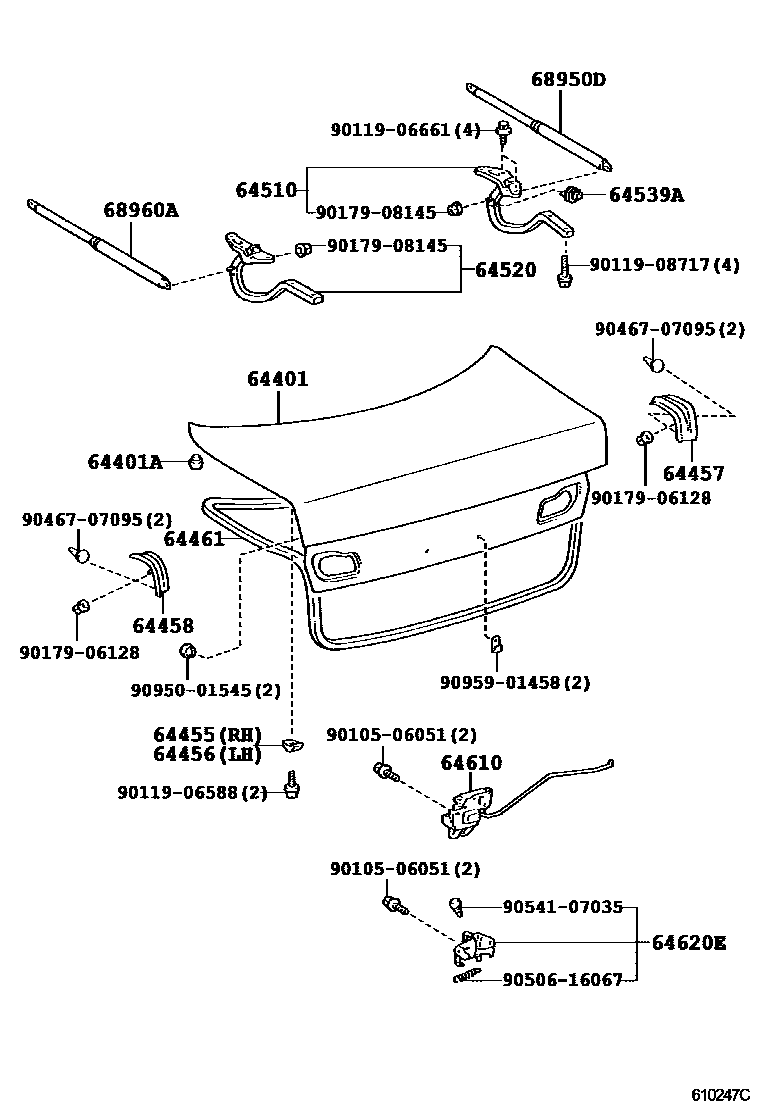

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-50907iUCF2#199410-199707

main64401-50912iUCF2#199707

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-10007×2iUCF2#199410

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-50010iUCF2#199410

64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH

main64456-50010iUCF2#199410

64457COVER, LUGGAGE DOOR STOPPER CUSHION, RH

main64457-50020iUCF2#199410

64458COVER, LUGGAGE DOOR STOPPER CUSHION, LH

main64458-50020iUCF2#199410

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-50020iUCF2#199410

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-50020iUCF2#199410

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-50020iUCF2#199410

64539APLATE, LUGGAGE DOOR HINGE ARM

main64539-50010×2iUCF2#199410

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-50050-C0iUCF2#..B,C; UCF20..A199410-199608

BLCAK,TRIM0#,1#,6#; BLCAK,TRIM1#,6#

main64600-50060-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30091iUCF2#199410

68950DSTAY ASSY, LUGGAGE DOOR, RH

main64530-50010iUCF2#199410-199412

main64530-50011iUCF2#199412-199707

main64530-50020iUCF2#199707

68960ASTAY ASSY, LUGGAGE DOOR, LH

main64530-50010iUCF2#199410-199412

main64530-50011iUCF2#199412-199707

main64530-50020iUCF2#199707

9010506051

main90105-06051

9011906588

main90119-06588

9011906661

main90119-06661

9011908717

main90119-08717

9017906128

main90179-06128

9017908145

main90179-08145

9046707095

main90467-07095

9050616067

main90506-16067

9054107035

main90541-07035

9095001545

main90950-01545

9095901458

main90959-01458

25 parts on this diagram · 1 diagram in section
