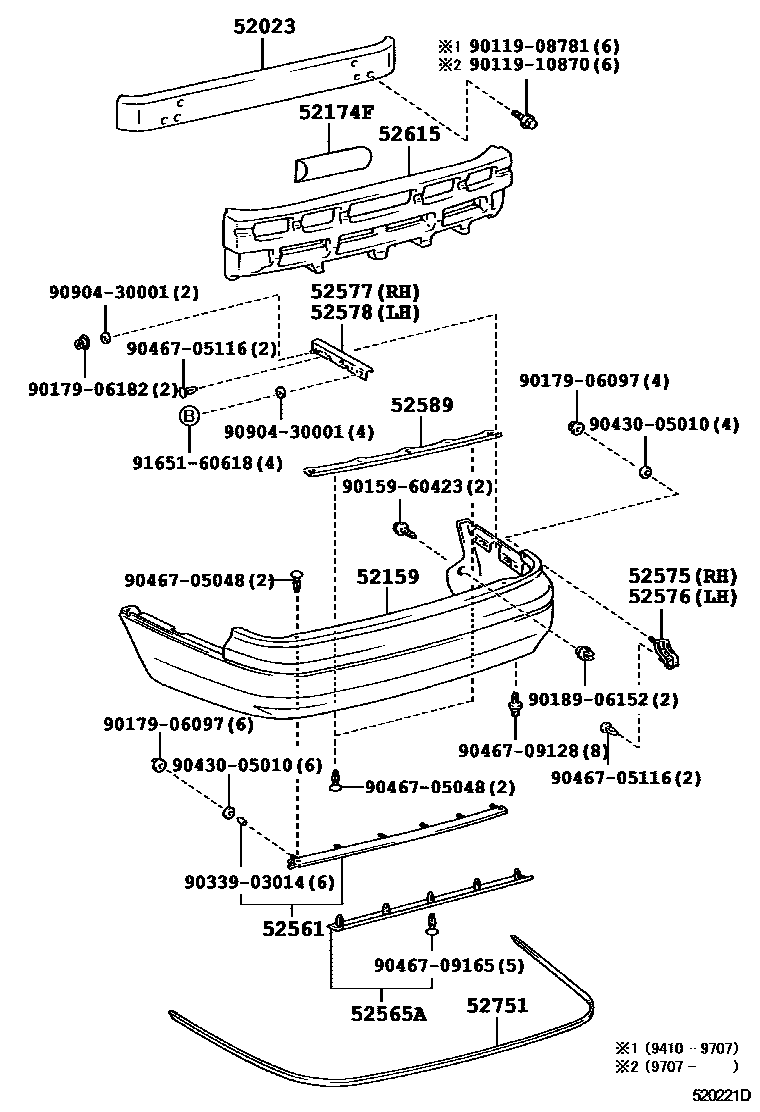

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
SUPER WHITE PM,051
10TH ANNIVERSARY EDITION *(A),WHITE PEARL MC.,K15
SILVER ME,199
10TH ANNIVERSARY EDITION *(A),GRAY ME.,KD2
BLACK,202
ROSE RED/DK.ROSE RED,3M9
BEIGE ME,4M9
GRAYISH BROWN ME,4N1
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.GREEN/DK.GREEN,6Q7
LT.GREEN/GREEN,6P7
10TH ANNIVERSARY EDITION *(A),DK.GRAY ME.,KD3
DK.BLUE MC.,8L1
DK.BLUE/MEDIUM BLUE,8L4
DK.ROSE MC.,929
AMETHYST ME./ROSE,941
52174FREINFORCEMENT, REAR BUMPER, NO.4
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52589RETAINER, REAR BUMPER END, NO.2
52751MOULDING, REAR BUMPER
9011908781
main90119-08781
9011910870
main90119-10870
9015960423
main90159-60423
9017906097
main90179-06097
9017906182
main90179-06182
9018906152
main90189-06152
9033903014
main90339-03014
9043005010
main90430-05010
9046705048
main90467-05048
9046705116
main90467-05116
9046709128
main90467-09128
9046709165
main90467-09165
9090430001
main90904-30001
9165160618
main91651-60618
26 parts on this diagram · 1 diagram in section
