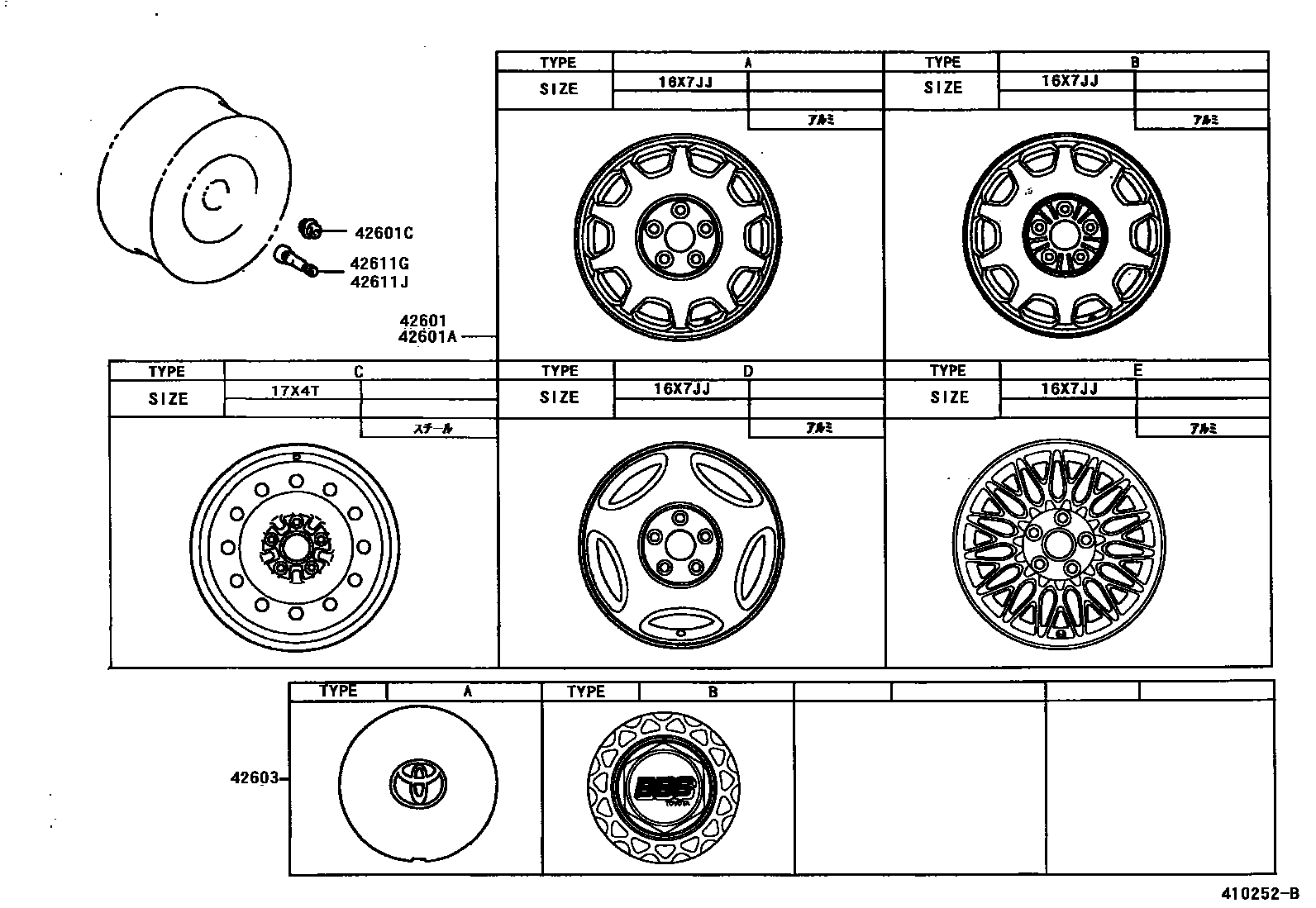

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-50110×4iUCF2#199410-199707

main42611-50120×4iUCF2#199410-199707

main42611-50140×4iUCF2#..B,C199505-199707

main42611-50170×4iUCF2#199707

main42611-50180×4iUCF2#..B,C199707

main42611-50260×4iUCF2#..B,C199905-199908

42601AWHEEL, DISC (FOR SPARE)

main42611-50090iUCF2#199410

main42611-50110iUCF2#199410-199707

main42611-50120iUCF2#199410-199707

main42611-50140iUCF2#..B,C199505-199707

main42611-50170iUCF2#199707

main42611-50180iUCF2#..B,C199707

42601CNUT, HUB (FOR AXLE)

main90942-01062×20iUCF2#199410

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50050×4iUCF2#199410-199707

main42603-50080×4iUCF2#..B,C199505-199707

main42603-50090×4iUCF2#199707

main42603-50110×4iUCF2#..B,C199707

main42603-50150×4iUCF2#..B,C199905-199908

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iUCF2#199410

main90942-05033×4iUCF2#..B,C199905-199908

10TH ANNIVERSARY EDITION *(A)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iUCF2#199410

6 parts on this diagram · 3 diagrams in section
