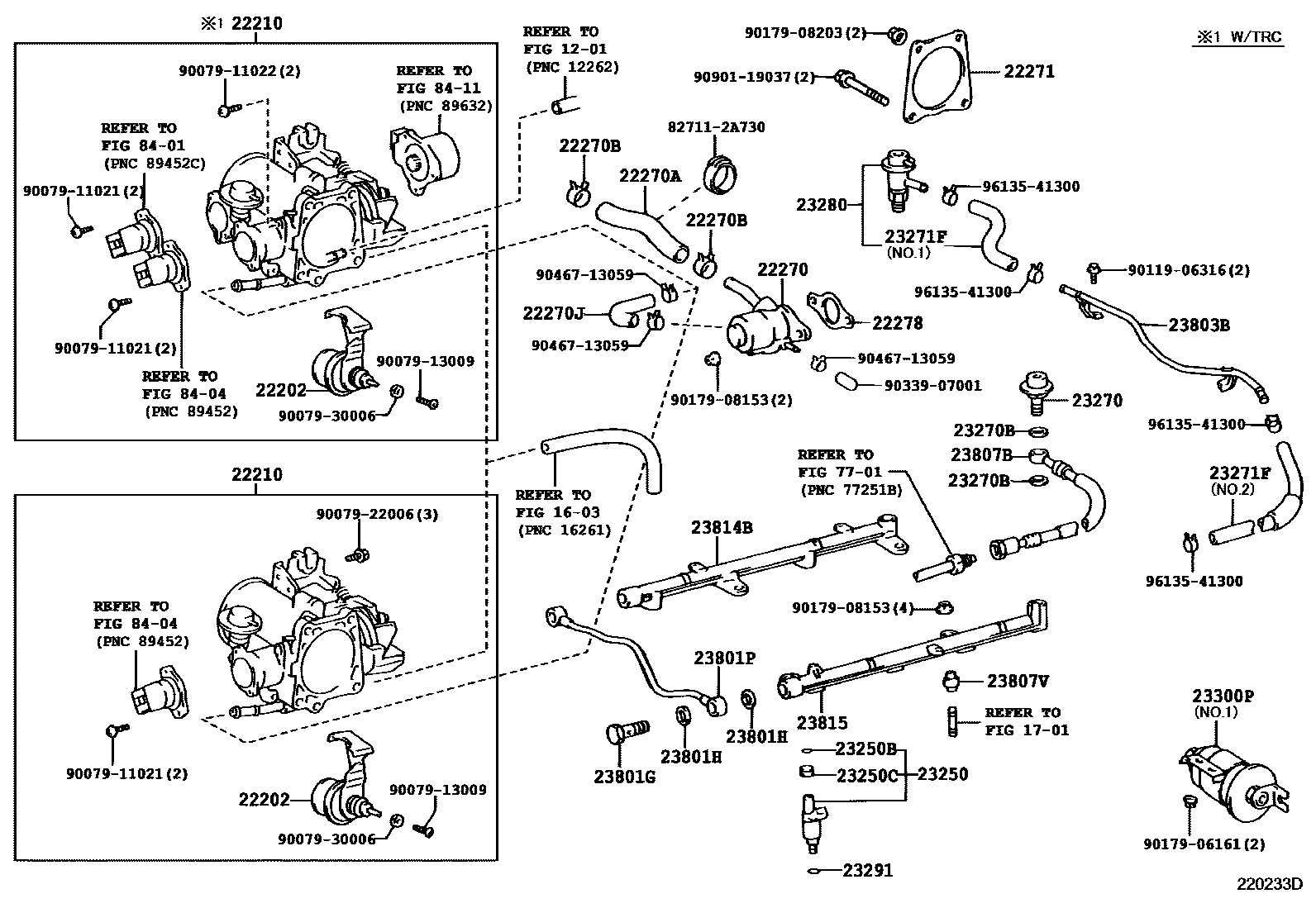

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22202DASH POT SUB-ASSY

main22202-50040i1UZFE..UCF2#199410-199707

22210BODY ASSY, THROTTLE

main22030-50042i1UZFE..UCF2#..B,C; 1UZFE..UCF20..A199410-199504

main22030-50043i1UZFE..UCF2#..B,C; 1UZFE..UCF20..A199504-199608

main22030-50044i1UZFE..UCF2#..B,C; 1UZFE..UCF20..A199608-199707

main22030-50110i1UZFE..UCF2#199707-200008

main22210-50110i1UZFE..UCF20..A199410-199504

main22210-50111i1UZFE..UCF20..A199504-199707

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-50020i1UZFE..UCF2#199410-199707

22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

main17341-50080i1UZFE..UCF2#199410-199707

22270BCLIP(FOR AIR HOSE)

main90467-26006×2i1UZFE..UCF2#199410-199707

22270JHOSE, WATER, NO.3(FOR IDEL SPEED CONTROL VALVE)

main99555-10200i1UZFE..UCF2#199410-199707

22271GASKET, THROTTLE BODY

main22271-50010i1UZFE..UCF2#199410-199707

main22271-50040i1UZFE..UCF2#199707-199808

main22271-50041i1UZFE..UCF2#199808-200006

main22271-50042i1UZFE..UCF2#200006-200008

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-50011i1UZFE..UCF2#199410-199707

23250INJECTOR ASSY, FUEL

main23209-50020×8i1UZFE..UCF2#199410-199707

main23209-50030×4i1UZFE..UCF2#199707

main23209-50050×4i1UZFE..UCF2#199707

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×8i1UZFE..UCF2#199410-199707

main90301-07024×8i1UZFE..UCF2#199707

main90301-07037×8i1UZFE..UCF2#199707

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×8i1UZFE..UCF2#199410

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-50010i1UZFE..UCF2#199410-199707

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081i1UZFE..UCF2#199410-199707

main90430-12026i1UZFE..UCF2#199410-199707

23271FHOSE, FUEL

main23271-50070i1UZFE..UCF2#199410-199707

main23271-50100i1UZFE..UCF2#199410-199410

main23271-50101i1UZFE..UCF2#199410-199707

23280REGULATOR ASSY, FUEL PRESSURE

main23280-50030i1UZFE..UCF2#199707

main23280-59015i1UZFE..UCF2#199410-199707

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×8i1UZFE..UCF2#199707

main23291-41010×8i1UZFE..UCF2#199410-199707

23300PFILTER, FUEL(FOR EFI)

main23300-50060i1UZFE..UCF2#199410

main23300-50080i1UZFE..UCF2#199707

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12023×2i1UZFE..UCF2#199410-199707

23801HGASKET(FOR FUEL PIPE)

main90430-12026×4i1UZFE..UCF2#199410-199707

main90430-14008×2i1UZFE..UCF2#199707

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-50010i1UZFE..UCF2#199410-199707

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-50061i1UZFE..UCF2#199410-199410

main23803-50062i1UZFE..UCF2#199410-199509

main23803-50063i1UZFE..UCF2#199509-199707

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-50030i1UZFE..UCF2#199707

23807BHOSE, FUEL DELIVERY PIPE

main90923-01407i1UZFE..UCF2#199410-199707

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08029×4i1UZFE..UCF2#199410

23814BPIPE, FUEL DELIVERY

main23814-50030i1UZFE..UCF2#199410-199707

23815PIPE, FUEL DELIVERY, NO.2

main23815-50020i1UZFE..UCF2#199410-199707

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8411TRACTION CONTROL

→ Go to FIG 84-11

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

9007911021

main90079-11021

9007911022

main90079-11022

9007913009

main90079-13009

9007922006

main90079-22006

9007930006

main90079-30006

9011906316

main90119-06316

9017906161

main90179-06161

9017908153

main90179-08153

9017908203

main90179-08203

9033907001

main90339-07001

9046713059

main90467-13059

9090119037

main90901-19037

9613541300

main96135-41300

47 parts on this diagram · 4 diagrams in section
