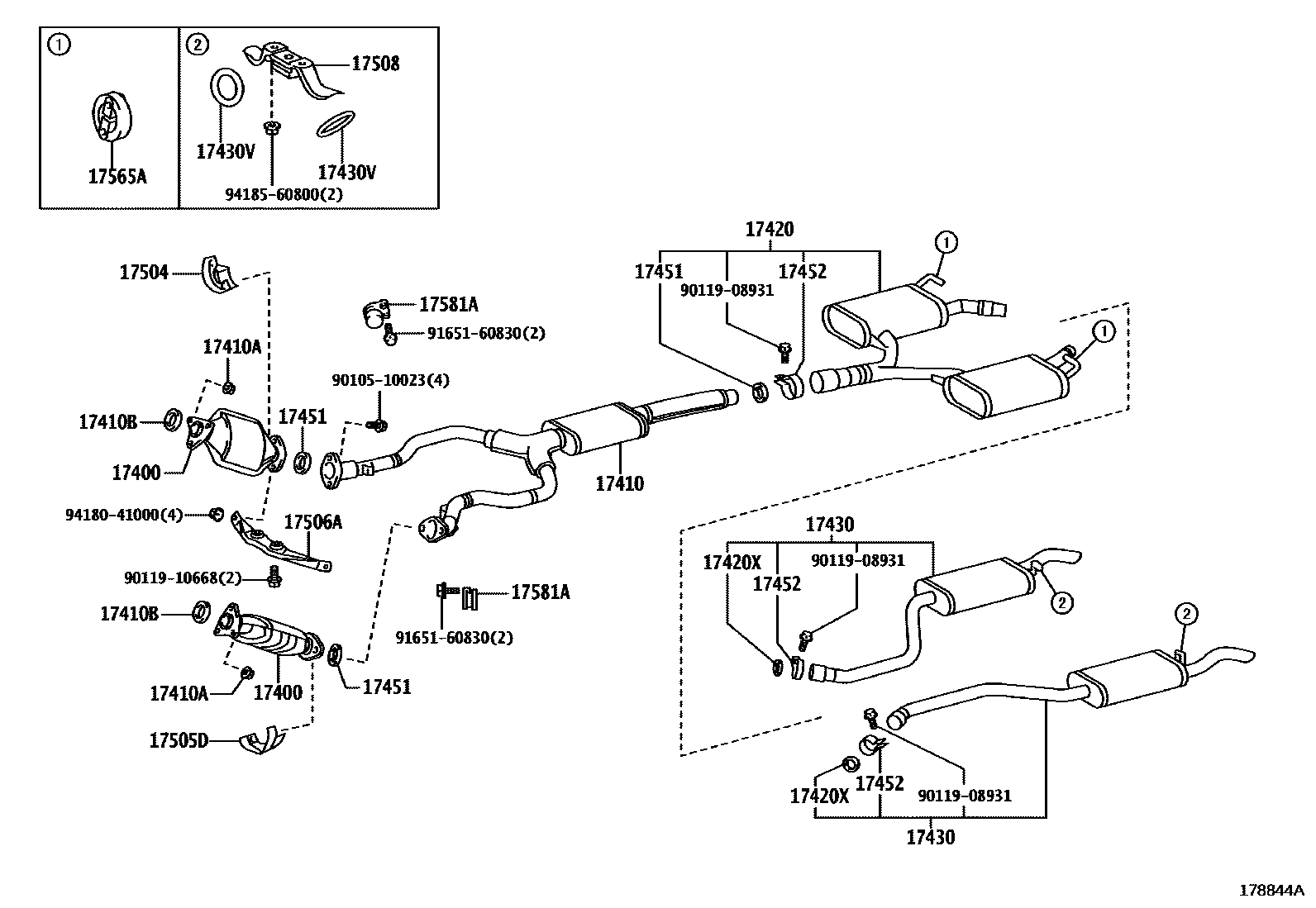

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-50160×2i1UZFE..UCF2#199410

17410PIPE ASSY, EXHAUST, FRONT

main17410-50150i1UZFE..UCF2#199410-199707

main17410-50230i1UZFE..UCF2#199707

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×6i1UZFE..UCF2#199410

17410BGASKET, EXHAUST PIPE

main90917-06043×2i1UZFE..UCF2#199410

17420PIPE ASSY, EXHAUST, CENTER

main17420-50100i1UZFE..UCF2#199410-199707

main17420-50160i1UZFE..UCF2#199707

17420XGASKET, EXHAUST PIPE, CENTER

main17451-50030×2i1UZFE..UCF2#199410-199707

main17451-50040×2i1UZFE..UCF2#199707

17430PIPE ASSY, EXHAUST, TAIL

main17430-50090i1UZFE..UCF2#199410-199707

main17430-50130i1UZFE..UCF2#199707

main17440-50060i1UZFE..UCF2#199410-199707

main17440-50100i1UZFE..UCF2#199707

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×4i1UZFE..UCF2#199410

17451GASKET, EXHAUST PIPE

main17451-50020i1UZFE..UCF2#199410

main90917-06072×2i1UZFE..UCF2#199410-199702

main90917-06076×2i1UZFE..UCF2#199702

17452CLAMP, EXHAUST PIPE

main17452-50020i1UZFE..UCF2#199410

main17452-50030×2i1UZFE..UCF2#199410-199707

main17452-50040×2i1UZFE..UCF2#199707

17504BRACKET SUB-ASSY, CATALYTIC CONVERTER

main17504-50021i1UZFE..UCF2#199410

17505DBRACKET SUB-ASSY, CONVERTER SUPPORT, LH

main17505-50021i1UZFE..UCF2#199410

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-50080i1UZFE..UCF2#199410

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-50010×2i1UZFE..UCF2#199410

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-46040×2i1UZFE..UCF2#199410

17581ADAMPER, EXHAUST PIPE

main17581-50070×2i1UZFE..UCF2#199410

9010510023

main90105-10023

9011908931

main90119-08931

9011910668

main90119-10668

9165160830

main91651-60830

9418041000

main94180-41000

9418560800

main94185-60800

22 parts on this diagram · 1 diagram in section
