MANIFOLD

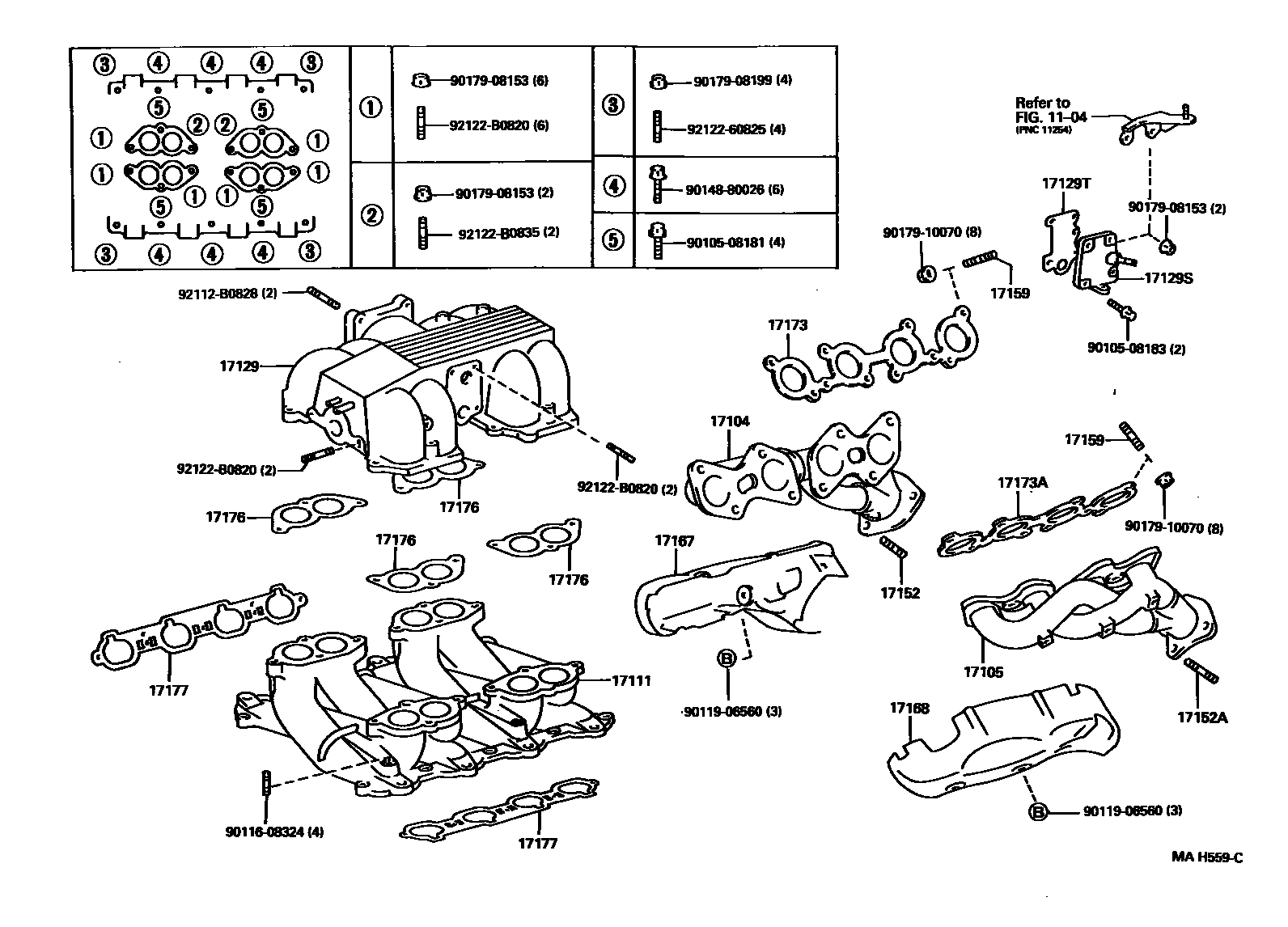

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-50080i199410-199707

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-50060i199410-199707

main17142-50050i199707

17111MANIFOLD, INTAKE

main17101-50010i199707

main17111-50020i199410-199707

17129TANK, INTAKE AIR SURGE

main17109-50030i199410-199707

17129SPLATE(FOR INTAKE AIR SURGE TANK)

main25615-50010i199410-199707

17129TGASKET(FOR INTAKE AIR SURGE TANK)

main25629-50010i199410-199707

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90126-10006×3i199410

17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90126-10006×3i199410

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-10015×16i199410

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-50070i199410-199707

main17167-50080i199707

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-50060i199410-199707

main17168-50071i199707

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-50010i199707-199709

main17173-50011i199709

main17173-50020i199410-199707

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-50010i199707-199709

main17173-50011i199709

main17173-50020i199410-199707

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-50021×4i199410-199707

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50011×2i199410-199707

main17171-50020×2i199707

9010508181

main90105-08181

9010508183

main90105-08183

9011608324

main90116-08324

9011906560

main90119-06560

9014880026

main90148-80026

9017908153

main90179-08153

9017908199

main90179-08199

9017910070

main90179-10070

92112B0828

main92112-B0828

9212260825

main92122-60825

92122B0820

main92122-B0820

92122B0835

main92122-B0835

28 parts on this diagram · 2 diagrams in section
