16206PIPE SUB-ASSY, WATER BY-PASS

main16206-50100i199410-199707

main16206-50130i199707

16261HOSE, WATER BY-PASS

main16261-50070i199410-199505

main16261-50071i199505-199707

main16261-50090i199707

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13059×2i199410-200008

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24019i199410

16278PIPE, WATER BY-PASS, NO.2

main16278-50011i199410-199707

main16278-50030i199707

16283HOSE, WATER BY-PASS, NO.6

main90445-16039i199410-199707

16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

main90467-15022×2i199410-199411

main90467-16037×2i199412-199707

16283BHOSE, WATER BY-PASS

main16283-50011i199410-199707

main99565-00130i199707

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main90467-11056×2i199410

16321INLET, WATER

main16321-50010i199410-199707

main16321-50020i199707

16323HOUSING, WATER INLET

main16032-50051i199410-199707

main16032-50060i199707-200006

main16032-50100i200006-200008

16323AGASKET(FOR WATER INLET HOUSING)

main90430-20004i199410-199707

16323BPLUG(FOR WATER INLET HOUSING)

main90341-20011i199410-199707

16323CRING, O(FOR WATER INLET HOUSING)

main96761-35035i199410

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i199410-199707

main16346-32010i199707-199712

main16346-50010i199801

16331ATHERMOSTAT

main90916-03084i199410-199707

main90916-03100i199707

16355JOINT, WATER BY-PASS, FRONT

main16355-50030i199410-199707

main16355-50070i199707

16355AGASKET(FOR WATER BY-PASS JOINT FRONT)

main16341-50010×2i199410-199707

main16341-50020×2i199707

16356JOINT, WATER BY-PASS, REAR

main16356-50070i199410-199707

main16356-50100i199707

16356AGASKET(WATER BY-PASS JOINT, REAR)

main16341-50010×2i199410-199707

main16341-50020×2i199707

16361FAN

main16911-50030i199410

16400RADIATOR ASSY

main16400-50130i199410

16533SUPPORT, RADIATOR, UPPER

main16505-50070i199410

main16506-50040i199410

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i199410

16571CHOSE, RADIATOR, NO.1

main16571-50080i199410-199707

main16571-50120i199707

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41003i199912

main90467-41007×2i199410-199912

16572DHOSE, RADIATOR, NO.2

main16572-50090i199410-199707

main16572-50120i199707

16572ECLIP, RADIATOR HOSE, NO.2

main90467-41007×2i199410

16701SHROUD SUB-ASSY, FAN

main16912-50070i199410

16906GEAR SET, HYDRAULIC

main16906-46010i199410

main16906-46020i199410

main16906-46030i199410

main16906-46040i199410

main16906-46050i199410

16913STAY, HYDRAULIC MOTOR FAN SHROUD

main16913-50060i199410

16923HOSE, HYDRAULIC MOTOR SUCTION, NO.1

main16923-50070i199410

16923ACLIP(FOR SUCTION HOSE NO.1)

main90467-21005×2i199410-199707

16927HOSE, HYDRAULIC MOTOR PRESSURE

main16927-50060i199410

16927ABOLT, UNION(FOR PRESSURE HOSE)

main90401-16015×2i199410

16927BGASKET(FOR PRESSURE HOSE)

main44327-30030×2i199410

16930COOLER ASSY, HYDRAULIC MOTOR OIL

main16930-50070i199410-199707

main16930-50080i199707

16941HOSE, HYDRAULIC MOTOR RETURN, NO.1

main16941-50060i199410

16941ACLIP(FOR RETURN NO.1)

main90467-16008×2i199410-199707

16942HOSE, HYDRAULIC MOTOR RETURN, NO.2

main16942-50070i199410

16942ACLIP(FOR RETURN HOSE NO.2)

main90467-16008×2i199410-199707

16950TANK ASSY, HYDRAULIC MOTOR RESERVE

main16950-50060i199410

16953CAP, HYDRAULIC MOTOR RESERVE TANK

main16953-50020i199410

16954STRAINER, HYDRAULIC MOTOR RESERVE TANK

main16954-50010i199410

16960MOTOR ASSY, HYDRAULIC GEAR

main16960-50030i199410

16960ASEAL, OIL(FOR HYDRAULIC GEAR MOTOR)

main90029-21019i199410-200008

16960BRING, SNAP(FOR HYDRAULIC GEAR MOTOR)

main90029-20040i199410-200008

16961SHAFT, HYDRAULIC GEAR MOTOR

main16961-50030i199410

16962COVER, HYDRAULIC GEAR MOTOR

main16962-46030i199410

16962ARING, O(FOR HYDRAULIC GEAR MOTOR COVER)

main90029-10004×2i199410-200008

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9002902303

main90029-02303

9002907009

main90029-07009

9002946002

main90029-46002

9011906560

main90119-06560

9017906263

main90179-06263

9017908153

main90179-08153

9017908199

main90179-08199

9017908240

main90179-08240

9151180825

main91511-80825

91511J0822

main91511-J0822

9162160814

main91621-60814

91621J0814

main91621-J0814

9165160614

main91651-60614

92122B0822

main92122-B0822

92122B0828

main92122-B0828

9615102500

main96151-02500

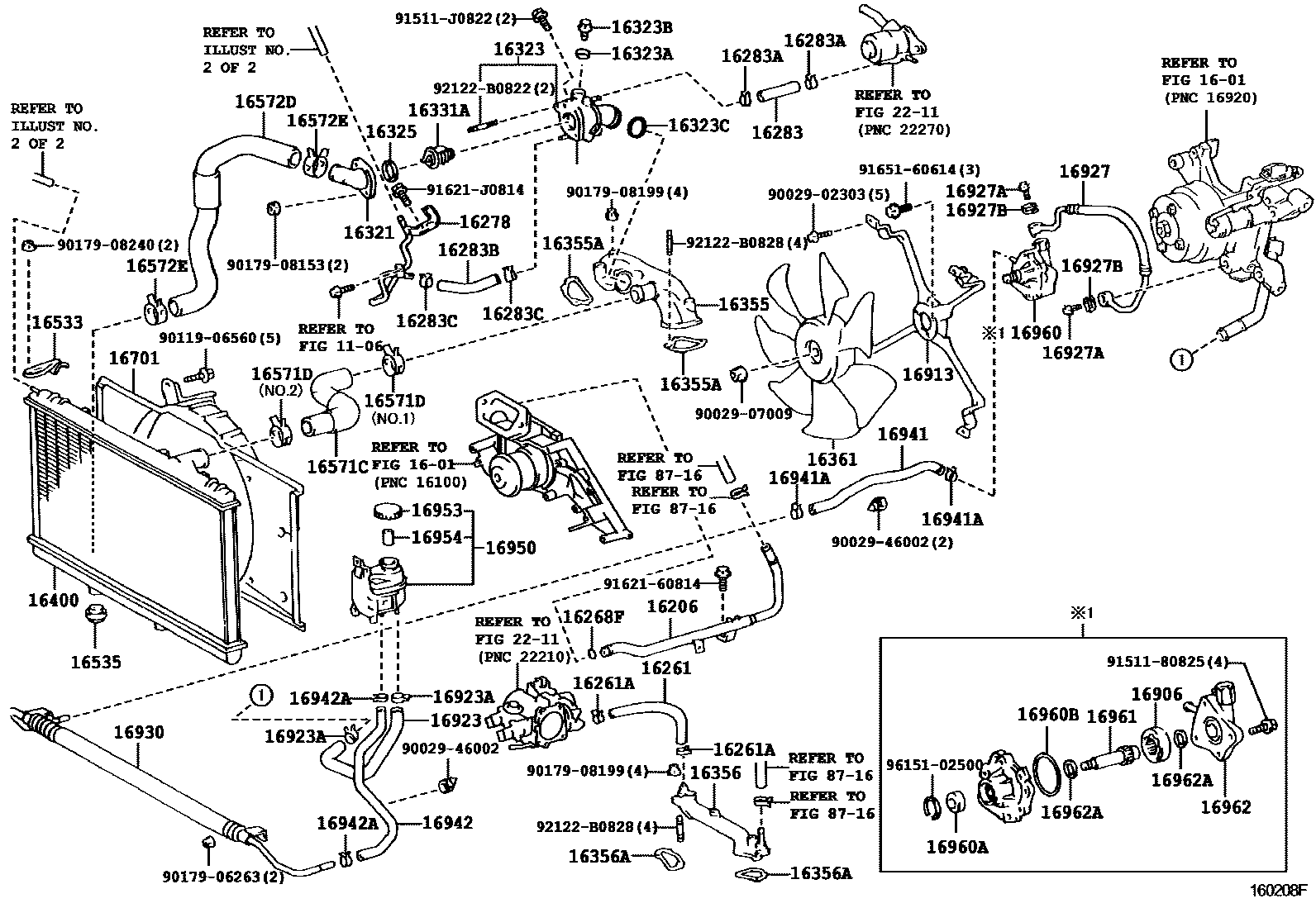

RADIATOR & WATER OUTLET
