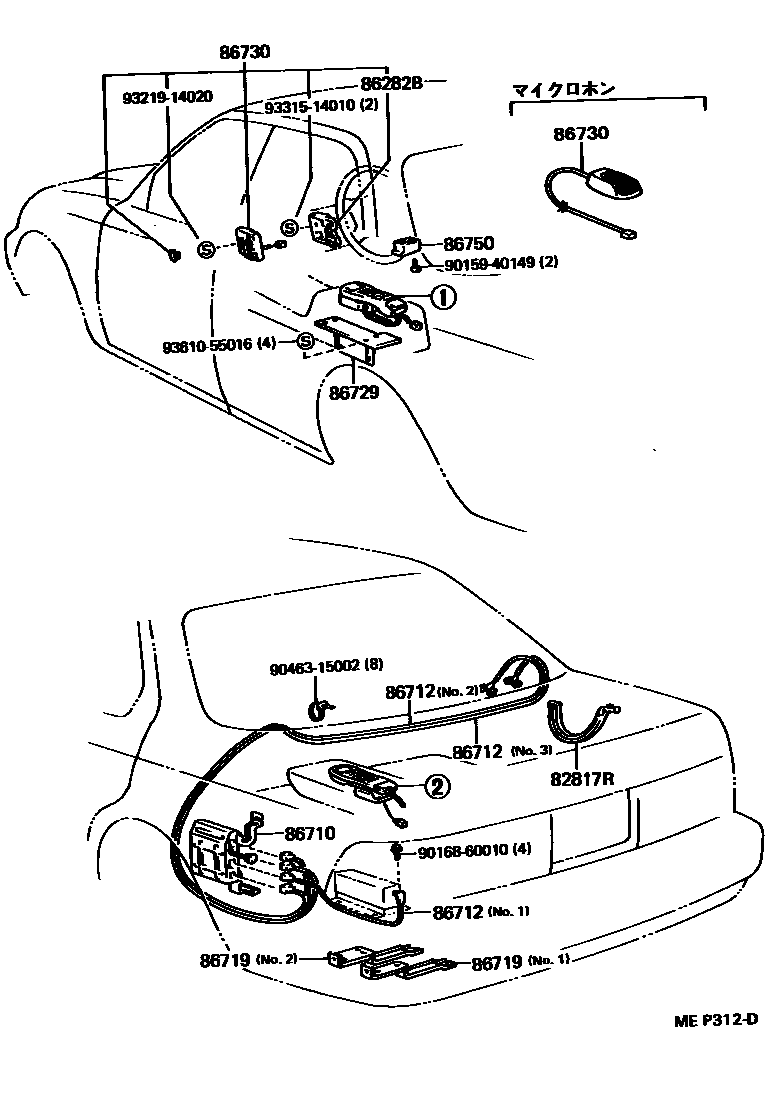

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1 0004 1

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-50520iUCF1#198911-199410

86282BBRACKET, MICROPHONE

main86282-50010iUCF1#198911-199208

86710COMPUTER ASSY, TELEPHONE

main86710-50010iUCF1#198911-199208

main86710-50020iUCF1#198911-199208

main86710-50030iUCF1#199208-199410

main86710-50040iUCF1#199208-199410

86712WIRE, TELEPHONE

main86712-22021iUCF1#198911-199005

main86712-30050iUCF1#199005-199208

main86712-50020iUCF1#198911-199208

main86712-50030iUCF1#198911-199002

main86712-50040iUCF1#199208-199410

main86712-50050iUCF1#199002-199208

86719BRACKET, TELEPHONE

main86719-50040iUCF1#198911-199208

main86719-50050iUCF1#198911-199208

main86719-50060iUCF1#199208-199410

86729BRACKET, MOBILEPHONE

main86729-50020iUCF1#198911-199208

main86729-50060iUCF1#199208-199410

86730MICROPHONE ASSY, TELEPHONE

main86730-30080iUCF1#199208-199410

main86730-50020iUCF1#199205-199208

main86730-50030iUCF1#199208-199410

86750SWITCH ASSY, TELEPHONE

main86750-50010iUCF1#198911-199002

main86750-50020iUCF1#198911-199002

main86750-50030iUCF1#199002-199208

main86750-50040iUCF1#199002-199208

9015940149

main90159-40149

9016860010

main90168-60010

9046315002

main90463-15002

9321914020

main93219-14020

9331514010

main93315-14010

9361055016

main93610-55016

14 parts on this diagram · 4 diagrams in section
