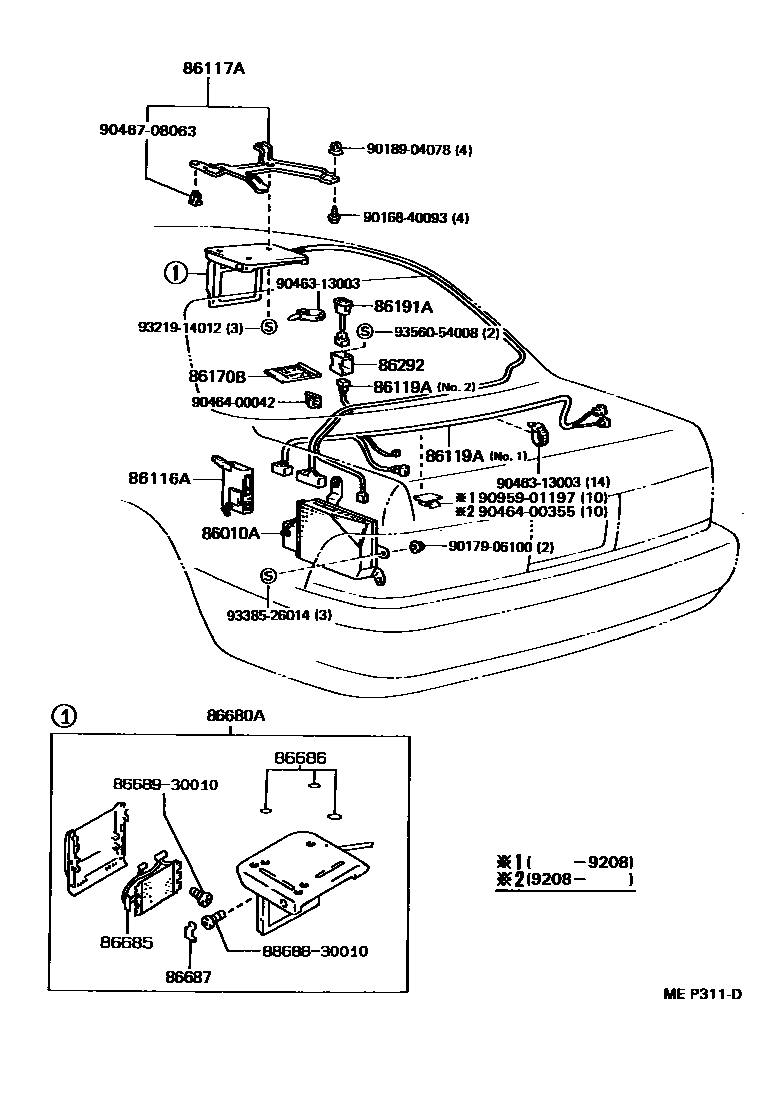

CAMERA & REAR MONITOR DISPLAY
86010ATUNER ASSY, TELEVISION
86116ACONTROLLER, VIDEO
86117ABRACKET, TELEVISION DISPLAY, A
86119AWIRE, TELEVISION SWITCH
86170BSWITCH & VOLUME ASSY, TELEVISION
86191ATERMINAL, VIDEO(VIDEO ADAPTER)
86292COVER, TELEVISION SET
86680ADISPLAY ASSY, TELEVISION
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
IVORY,TRIM0#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
86685LIGHT, TELEVISION
86686PLUG, TELEVISION NO.1
SHADOW GRAY,TRIM1#
IVORY,TRIM0#
GRAIGE,TRIM0#
DARK ROSE,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
86687PLUG, TELEVISION NO.2
SHADOW GRAY,TRIM1#
IVORY,TRIM0#
GRAIGE,TRIM0#
DARK ROSE,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
8668930010
main86689-30010
8868830010BRACKET, COOLER DIAPHRAGM
main88688-30010
9016840093
main90168-40093
9017906100
main90179-06100
9018904078
main90189-04078
9046313003
main90463-13003
9046400042
main90464-00042
9046400355
main90464-00355
9046708063
main90467-08063
9095901197
main90959-01197
9321914012
main93219-14012
9338526014
main93385-26014
9356054008
main93560-54008
24 parts on this diagram · 1 diagram in section
