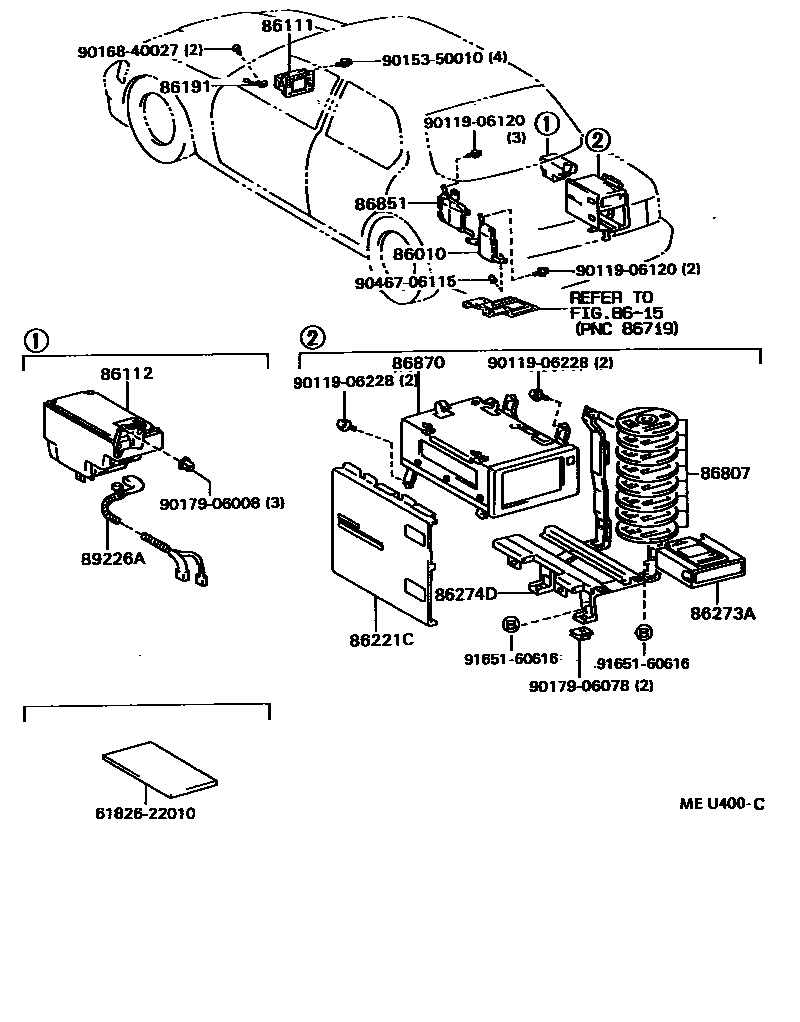

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86010TUNER ASSY, TELEVISION

main86010-50020iUCF1#..B,C199208-199410

86111MULTI-DISPLAY

main86111-50010iUCF1#..B,C199208-199410

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-50010iUCF1#..B,C199208-199410

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86191-50010iUCF1#..B,C199208-199410

86221CPANEL, RADIO RECEIVER

main86221-50010iUCF1#..B,C199208-199410

86273AMAGAZINE, DISC PLAYER

main86273-50030iUCF1#..B,C199208-199410

86274DBRACKET, DISC PLAYER

main86274-50020iUCF1#..B,C199208-199410

86807DISC KIT, CD-ROM

main04864-50010iUCF1#..B,C199208-199306

main86807-50010iUCF1#..B,C199306-199410

86851RECEIVER, NAVIGATION

main86851-50010iUCF1#..B,C199208-199311

main86851-50011iUCF1#..B,C199311-199410

86870PLAYER ASSY, CD-ROM

main86870-50010iUCF1#..B,C199208-199308

main86871-50010iUCF1#..B,C199308-199410

89226AFIBER, OPTICAL

main89226-50010iUCF1#..B,C199208-199410

6182622010PLATE, QUARTER INNER PANEL, LOWER FRONT LH

main61826-22010

9011906120

main90119-06120

9011906228

main90119-06228

9015350010

main90153-50010

9016840027

main90168-40027

9017906008

main90179-06008

9017906078

main90179-06078

9046706115

main90467-06115

9165160616

main91651-60616

21 parts on this diagram · 2 diagrams in section
