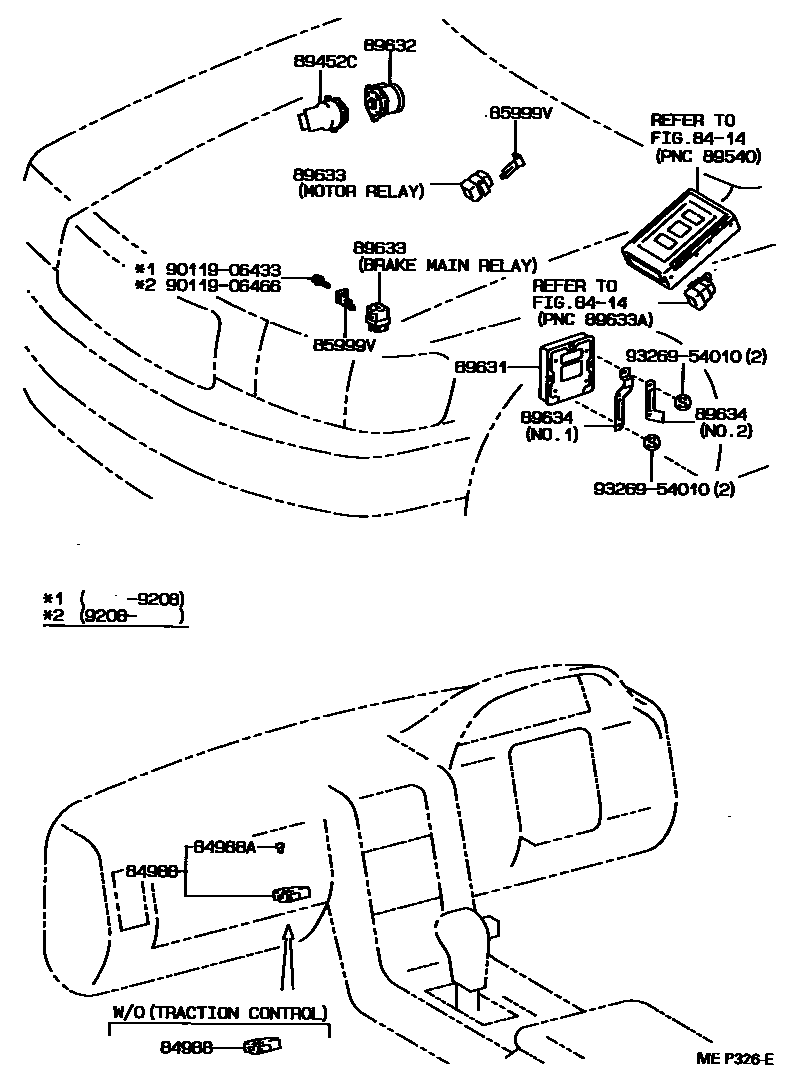

TRACTION CONTROL

8414ABS & VSC

→ Go to FIG 84-14

84988SWITCH, TRACTION CONTROL

main84988-50020iUCF10..A198911-199410

main84988-50030iUCF1#..B,C198911-199410

main84988-50040iUCF11198911-199208

main84988-50070iUCF11199208-199410

84988ABULB, TRACTION CONTROL SWITCH

main84999-10620×2iUCF11198911-199208

85999VBRACKET, RELAY

main85999-50050iUCF1#..B,C198911-199101

BRAKE MAIN RELAY

main85999-50060iUCF1#..B,C198911-199101

MOTOR RELAY

89452CSENSOR, THROTTLE POSITION

main89452-50010iUCF1#..B,C198911-199101

main89452-50020iUCF1#199208-199410

89631COMPUTER, TRACTION CONTROL

main89631-30080iUCF1#199308-199410

main89631-50010iUCF1#199208-199308

89632MOTOR, TRACTION THROTTLE VALVE

main89632-50010iUCF1#..B,C198911-199101

main89632-50020iUCF1#199208-199410

89633RELAY, TRACTION CONTROL

main89633-50030iUCF1#..B,C198911-199101

MOTOR RELAY

main89633-50060iUCF1#199101-199410

BRAKE MAIN RELAY

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-50020iUCF1#199208-199410

main89634-50040iUCF1#199208-199410

9011906433

main90119-06433

9011906466

main90119-06466

9326954010

main93269-54010

12 parts on this diagram · 1 diagram in section
