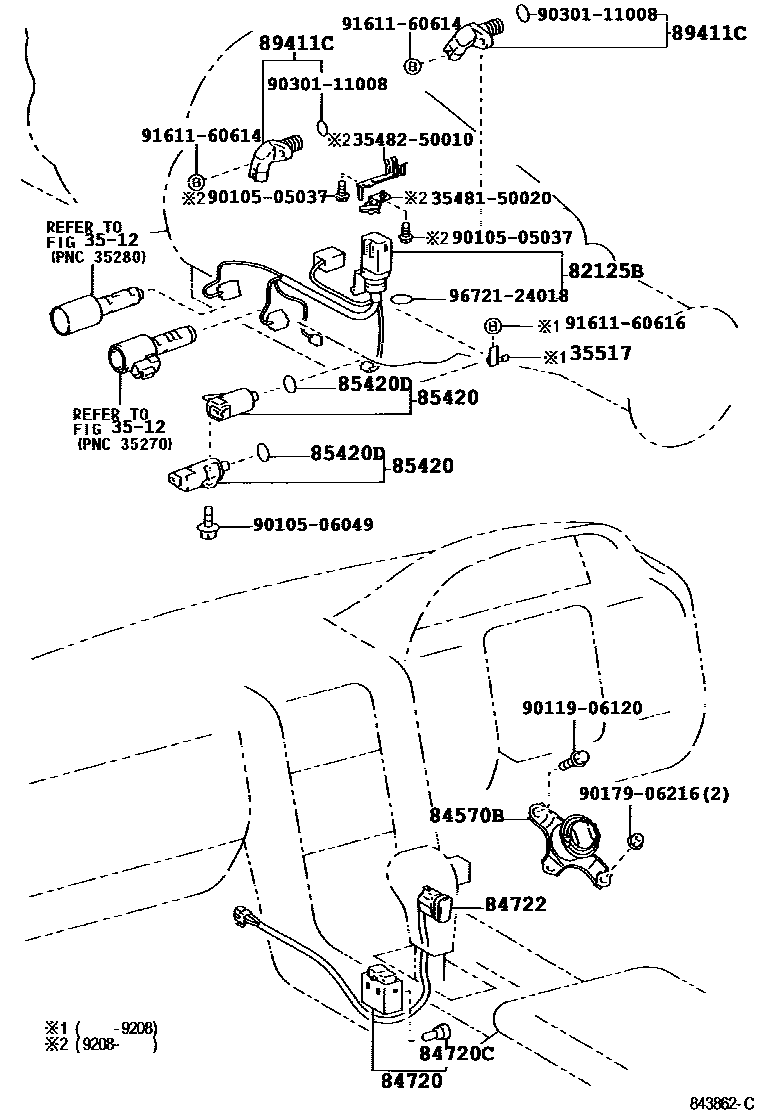

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iUCF1#198911-199208

82125BWIRE, TRANSMISSION

main82125-50010iUCF1#198911-199208

main82125-50030iUCF1#199208-199410

84570BSWITCH ASSY, KICK DOWN

main84570-50020iUCF1#198911-199410

main84570-50030iUCF1#198911-199410

84720SWITCH ASSY, PATTERN SELECT

main84720-30170iUCF1#199203-199410

main84720-50010iUCF1#198911-199203

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iUCF1#198911-199410

84722SWITCH, TRANSMISSION CONTROL

main84722-50030-03iUCF10..A198911-199208

SHADOW GRAY,TRIM1#

main84722-50030-04iUCF10..A198911-199208

DARK BLUE,TRIM8#

main84722-50040-03iUCF1#..B,C198911-199208

SHADOW GRAY,TRIM1#

main84722-50040-04iUCF1#..B,C198911-199208

DARK BLUE,TRIM8#

main84722-50040-05iUCF1#..B,C198911-199208

GREIGE,TRIM0#

main84722-50040-06iUCF1#..B,C198911-199208

DARK ROSE,TRIM4#

main84722-50050-B0iUCF1#199208-199410

SHADOW GRAY,TRIM1#

main84722-50050-E0iUCF1#..B,C199208-199410

OAK,TRIM0#

main84722-50050-J0iUCF1#199208-199410

DK.BLUE,TRIM8#

main84722-50050-K0iUCF1#..B,C199208-199410

TAUPE,TRIM9#

85420SOLENOID ASSY, TRANSMISSION

main85420-50020×2iUCF1#198911-199410

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iUCF1#198911-199410

89411CSENSOR, SPEED

main89411-50010×2iUCF1#198911-199410

3548150020BODY, GOVERNOR

main35481-50020

3548250010VALVE, GOVERNOR

main35482-50010

9010505037

main90105-05037

9010506049

main90105-06049

9011906120

main90119-06120

9017906216

main90179-06216

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

9672124018

main96721-24018

20 parts on this diagram · 1 diagram in section
