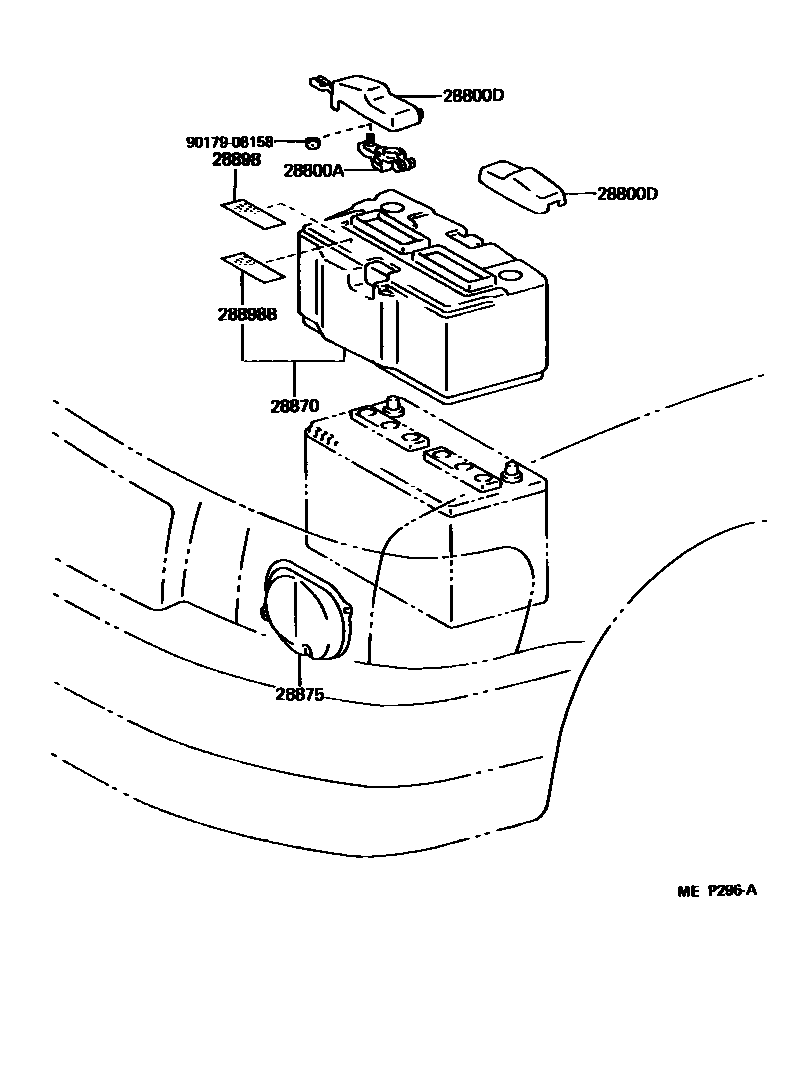

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i1UZFE..UCF1#198911-199410

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50050i1UZFE..UCF1#198911-199410

POSITIVE

main82821-50060i1UZFE..UCF1#198911-199410

NEGATIVE

28870INSULATOR ASSY, BATTERY

main28870-50010i1UZFE..UCF1#198911-199208

main28870-50040i1UZFE..UCF1#199208-199410

28875DUCT, BATTERY INSULATOR, NO.1

main28875-50010i1UZFE..UCF1#198911-199410

28898PLATE, BATTERY

main28898-50030i1UZFE..UCF1#198911-199208

main28898-50110i1UZFE..UCF1#199208-199410

28898BPLATE, BATTERY

main28898-50010i1UZFE..UCF1#198911-199208

main28898-50090i1UZFE..UCF1#199208-199410

9017908158

main90179-08158

7 parts on this diagram · 1 diagram in section
